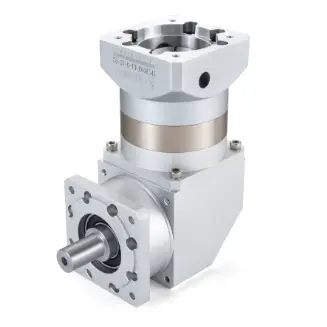

ZPLF090 Precision Reducer with Multi-Ratio Options

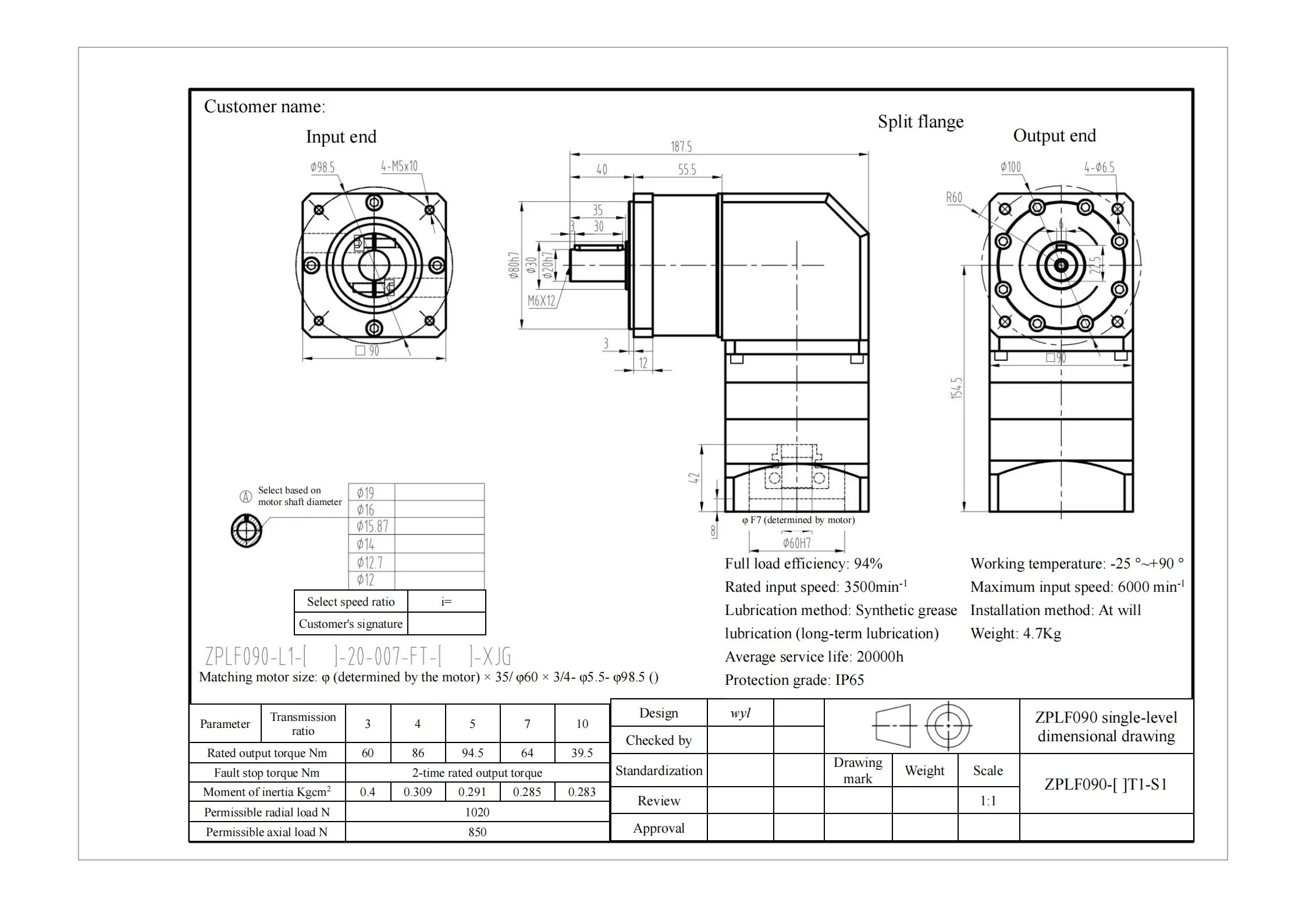

The ZPLF090-[]T1-S1 reducer is designed for applications requiring precise torque control and robust performance. Offering a selection of transmission ratios—3, 4, 5, 7, and 10—this reducer is versatile enough to meet the diverse needs of industries ranging from automation to heavy machinery.

The rated output torque of the ZPLF090 varies according to the selected transmission ratio. At a 3:1 ratio, it delivers 60 Nm of torque, while the 4:1 ratio reaches a substantial 86 Nm. The 5:1 configuration offers even more power at 94.5 Nm, making it ideal for heavy-duty applications. The 7:1 and 10:1 ratios are designed for higher-speed needs, providing 64 Nm and 39.5 Nm, respectively. This adaptability ensures that the ZPLF090 can optimize performance across a wide range of mechanical systems.

In terms of durability, the ZPLF090 features a fault stop torque capability that is twice the rated output torque, giving it the ability to handle unexpected surges in demand without compromising its structural integrity. Its moment of inertia ranges from 0.4 Kg·cm² at a 3:1 ratio to 0.283 Kg·cm² at a 10:1 ratio, offering efficient energy transfer and smooth acceleration, which is critical for precision control.

Built to support high loads, the reducer can handle a permissible radial load of 1020 N and an axial load of 850 N. This makes it exceptionally suited for applications where both axial and radial forces are at play, ensuring long-term reliability and consistent performance.

Thanks to its compact yet powerful design, the ZPLF090 is easy to integrate into existing systems or install in new machinery setups. Its efficient construction minimizes maintenance requirements, resulting in long-lasting, trouble-free operation.

In summary, the ZPLF090-[]T1-S1 reducer is a high-precision, adaptable solution that offers the right balance of power, reliability, and flexibility. Whether used in automation, robotics, or heavy-duty machinery, this reducer provides consistent performance and precise torque control, making it an essential component for modern industrial applications.
