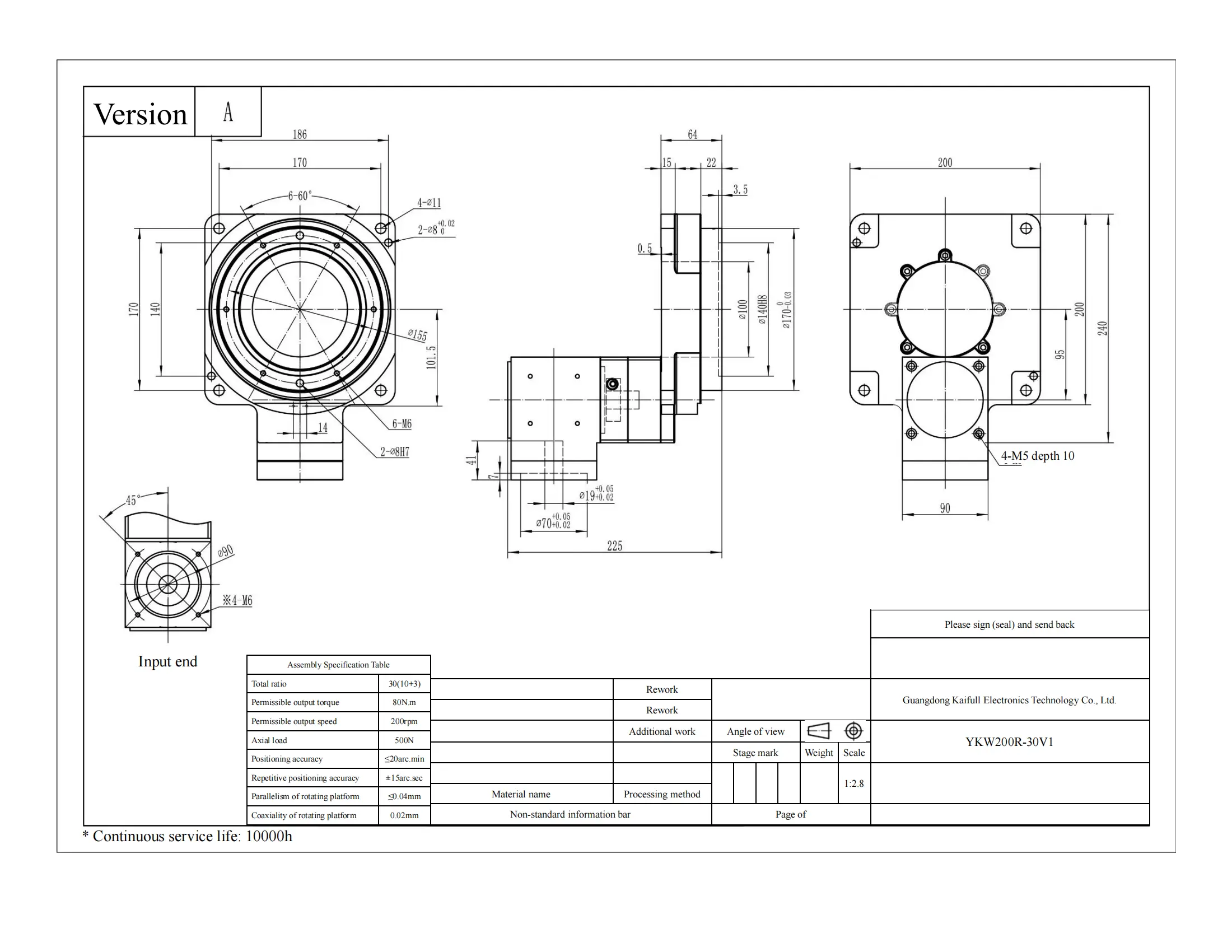

YKW200R-30V1 Hollow Rotary Platform with 30:1 Reduction for High Load Applications

The YKW200R-30V1 hollow rotary platform is a heavy-duty, precision device built for industrial applications requiring high torque, durability, and precise positioning. It boasts an impressive allowable torque of 80 N.m, a maximum axial load capacity of 200 kg, and a radial force of 80 N.m. These features make it ideal for handling demanding tasks in automated machinery, robotics, and precision equipment.

With a 30:1 reduction ratio, the YKW200R-30V1 ensures efficient torque output, allowing for smooth motion at a disk rotation speed of 720° per second. The platform offers excellent positioning accuracy at 8 arc-min and maintains a repetitive positioning accuracy of ≤±30 arc-sec, ensuring consistent and reliable operation over time.

Built to endure high operational cycles, it has an accuracy life of over 15,000 cycles in intermittent operation, making it a trusted component in industrial environments. Weighing 15 kg, this rotary platform is constructed with IP40-rated protection, shielding it from dust and small particles, ensuring long-term durability. The V1 motor interface accommodates motors with a shaft diameter of ф19, PCD of ф90, and M5 mounting, offering compatibility with a variety of motor configurations.

Whether for precision machining, robotic arms, or automated conveyor systems, the YKW200R-30V1 delivers superior performance in both power and precision.
