YKDR40 High-Torque 2D Rotary Module for Robotic AB Axis Motion

YKDR40 High-Torque 2D Rotary Module for Robotic AB Axis Motion

High-performance YKDR40 rotary module supports ±180°/360° rotation, 6 N·m torque, and 1080°/sec speed.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YKDR40 2D Rotary Module is an advanced AB-axis rotary solution for automation and 3D motion systems. It supports high permissible torque (6 N·m), a 90 mm max rotation radius, and maintains tight mechanical tolerances with ±0.02 mm concentricity and parallelism. The A and B axes deliver ±180° and 360° rotation respectively, powered by either a 56/60 stepper motor or 200W–400W servo (A axis), and a 42 stepper or 100W servo motor (B axis). With reduction ratios of 1:10 and support for up to 1080°/sec rotation, it’s built for speed, strength, and precision.

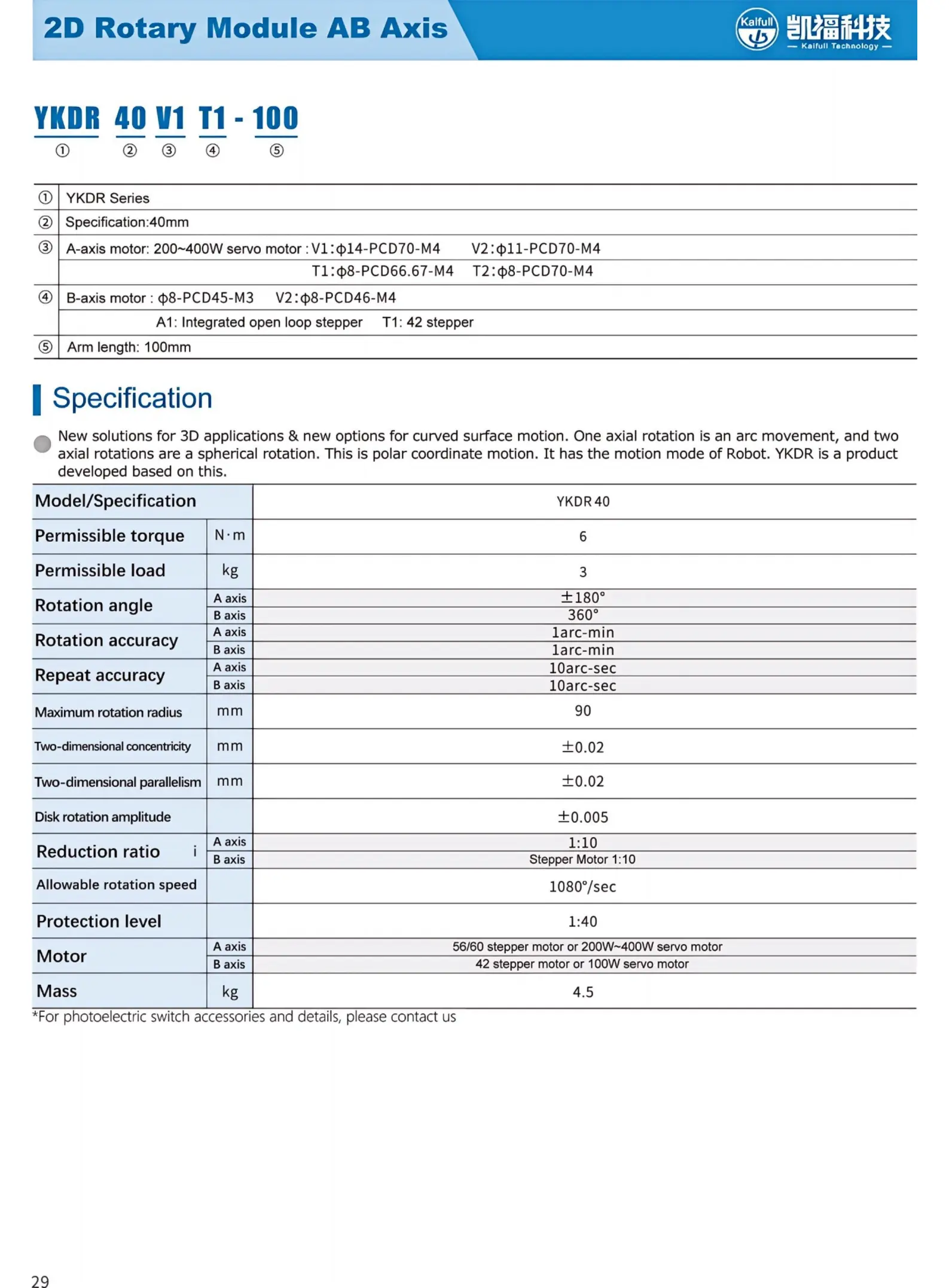

    extracted-from-2d-rotation-module-ab-axis-eng-_3

    ●Motor configuration and performance parameters

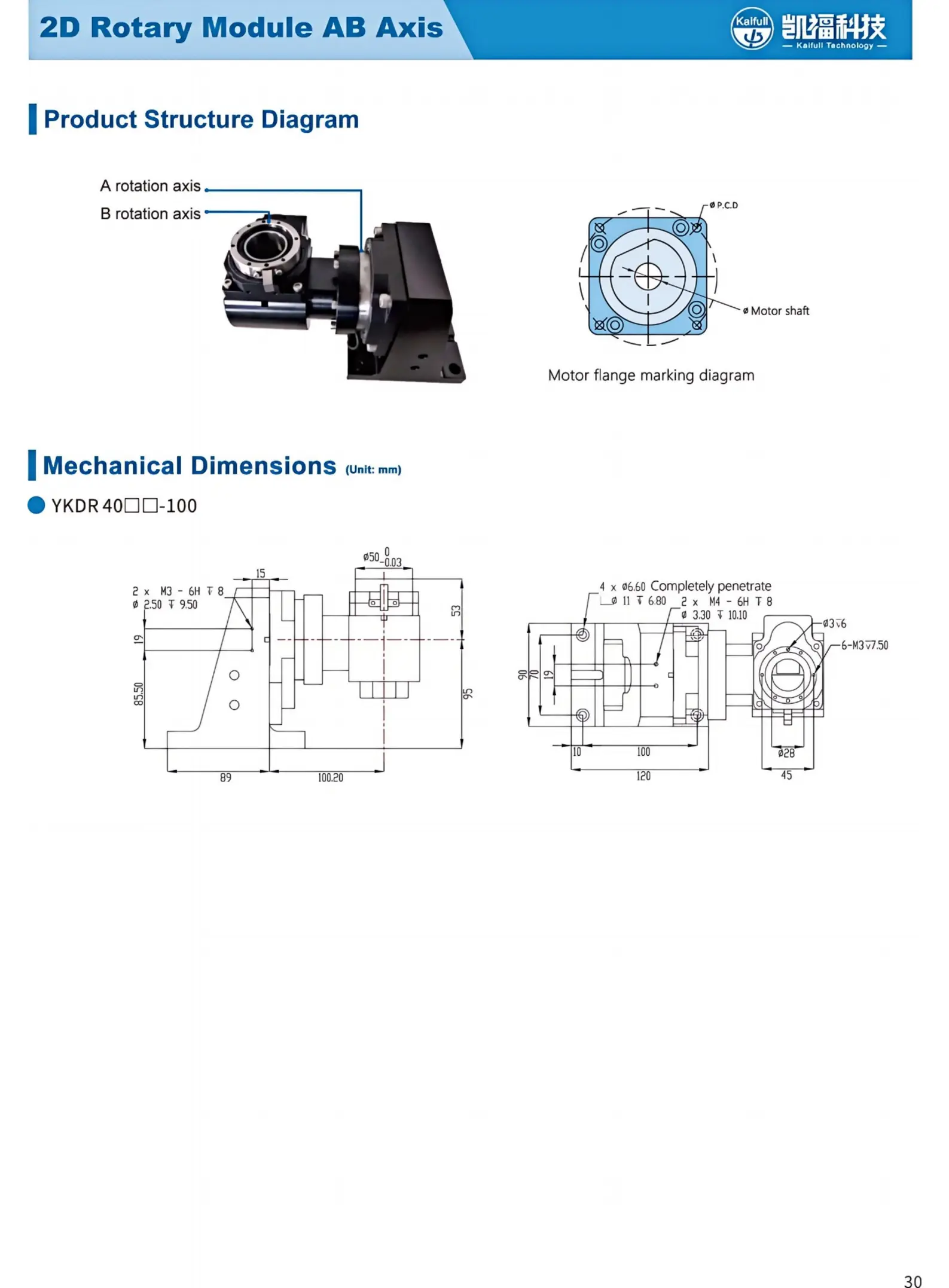

    提取自二维旋转模组AB轴（ENG）_4
