YK-R6015P-ASN-2-615 Rotary Stage ±7.5°, High Precision Motion Control

YK-R6015P-ASN-2-615 Rotary Stage ±7.5° Stroke, High Precision, 49N Load

Discover the YK-R6015P-ASN-2-615 rotary stage: ±7.5° stroke, ±0.01° accuracy, 0.03° concentricity, and 49N load capacity. Ideal for precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The YK-R6015P-ASN-2-615 rotary stage is a high-performance precision motion solution for angular positioning tasks within a ±7.5° stroke. Driven by the STP-28D1012-01 motor (0.7A) and a robust ball screw mechanism (6mm diameter, 1mm pitch), this stage provides exceptional resolution of 0.0106° (full step) and 0.0053° (half step). Its ±0.01° repetitive positioning accuracy, combined with 0.03° concentricity and 0.05° face runout, ensures highly accurate and consistent operation. Constructed with durable yet lightweight aluminum alloy, it supports loads up to 49N (5Kgf) and operates at a maximum speed of 30°/s, making it ideal for advanced automation and research applications.

    ●Motor configuration and performance parameters
    Product parameters:
    Model: YK-R6015P-ASN-2-615
    Stroke: ±7.5°
    Motor: STP-28D1012-01
    Drive current: 0.7A
    Screw type: Ball screw
    Screw parameters: diameter 6mm/pitch 1mm
    Resolution (Full/Half): 0.0106°/0.0053°
    Repetitive positioning accuracy: ±0.01°
    Concentricity: 0.03° (within ±7.5°)
    Face runout: 0.05° (within ±7.5°)
    Maximum speed: 30°/s
    Material: Aluminum alloy
    Load: 49N(5Kgf)
    Weight: 0.6Kg

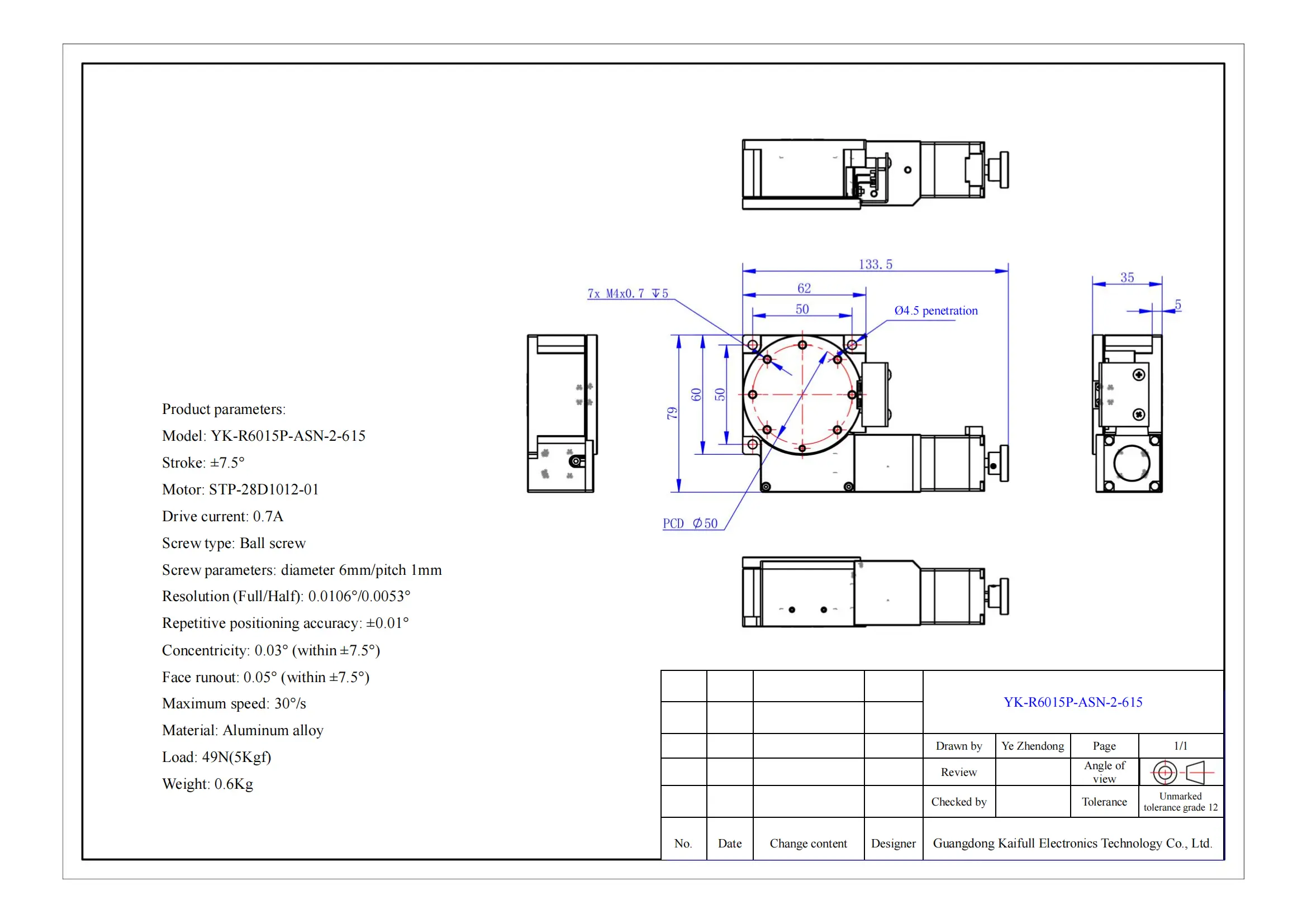

    YK-R6015P-ASN-2-615_00
