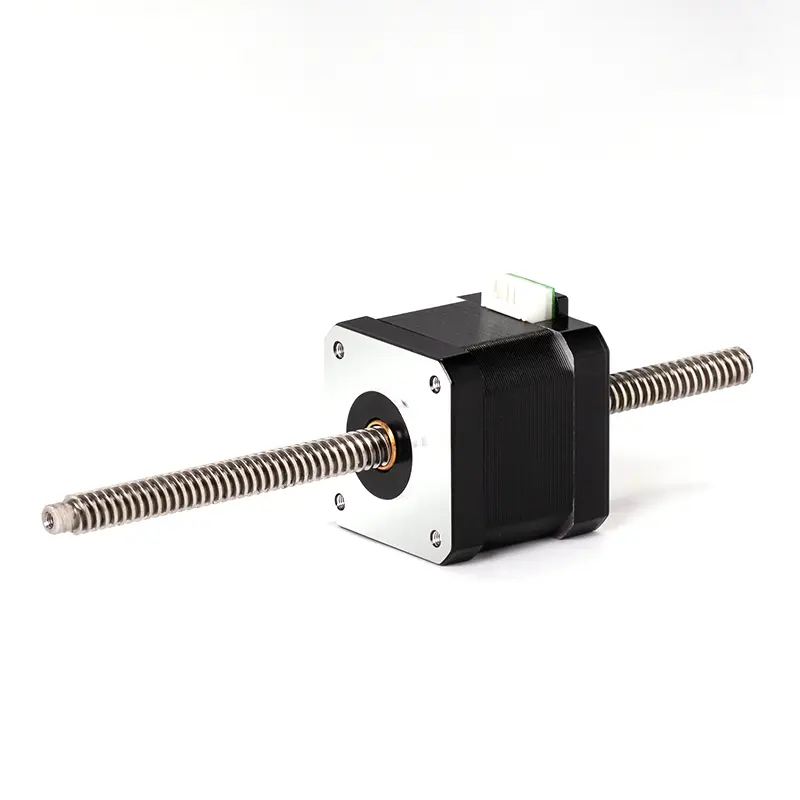

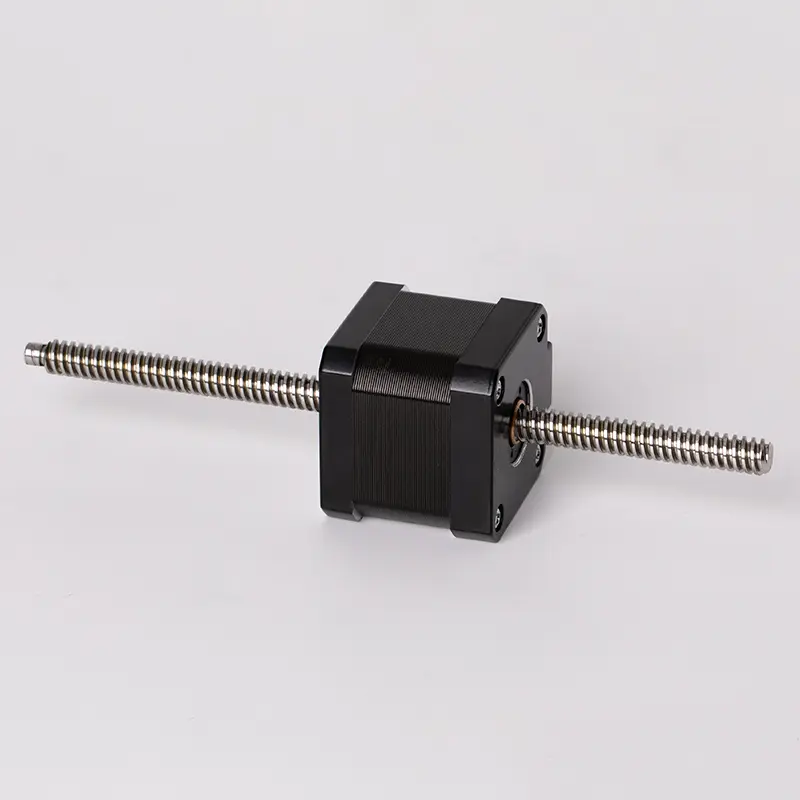

Precision Y07-43D1-3001-04GC-170 Screw Stepper Motor for High-Torque Applications

The Y07-43D1-3001-04GC-170 screw stepper motor is designed to meet the rigorous demands of high-torque applications, making it a top choice for automation, robotics, and CNC machinery. With a stepping angle of 1.8°, this motor provides exceptional accuracy and repeatability, essential for applications that require precise positioning.

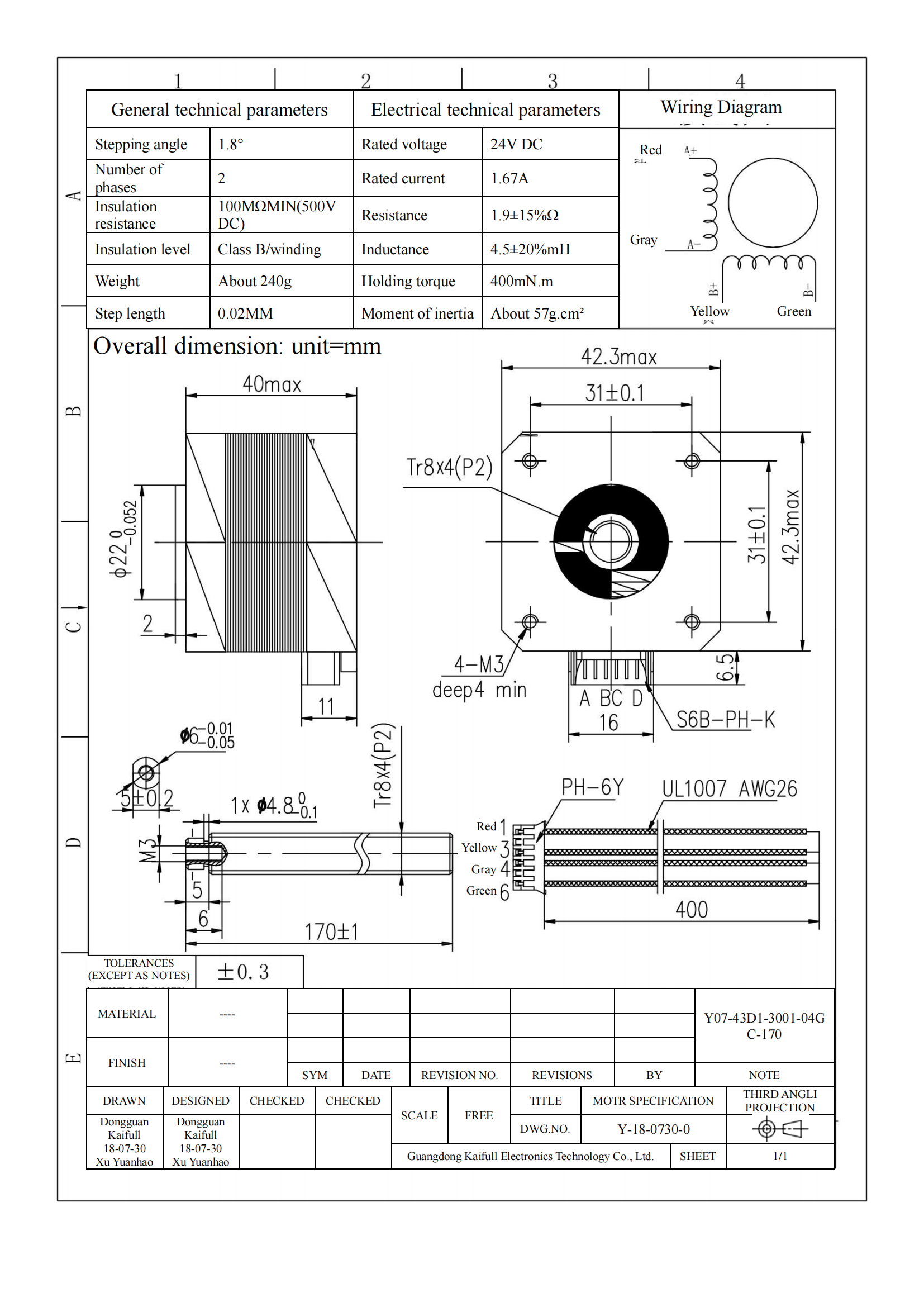

Operating at a rated voltage of 24VDC, the Y07-43D1-3001-04GC-170 is configured with two phases, allowing it to deliver a rated current of 1.67A. This current rating not only enhances the motor's performance but also ensures smooth and reliable operation. The insulation resistance is rated at a minimum of 100 MΩ at 500V DC, making it robust against electrical failures, which is critical in high-performance environments.

This motor features a resistance of 1.9 ±15% Ω and an inductance of 4.5 ±20% mH, ensuring stable performance across various operational conditions. With a Class B insulation level, it can handle elevated temperatures while maintaining optimal performance. Weighing approximately 240g, the motor is compact yet powerful, allowing for flexible integration into various systems.

The Y07-43D1-3001-04GC-170 offers an impressive holding torque of 400 mN·m, which provides excellent stability when maintaining position under load. Its step length of 0.02 mm allows for fine-tuned adjustments, making it ideal for applications requiring meticulous control. Additionally, the moment of inertia is around 57 g·cm², contributing to the motor's quick response time and agility during operation.

In summary, the Y07-43D1-3001-04GC-170 screw stepper motor is engineered for precision and high torque, making it a reliable choice for demanding applications where accuracy and power are essential.
