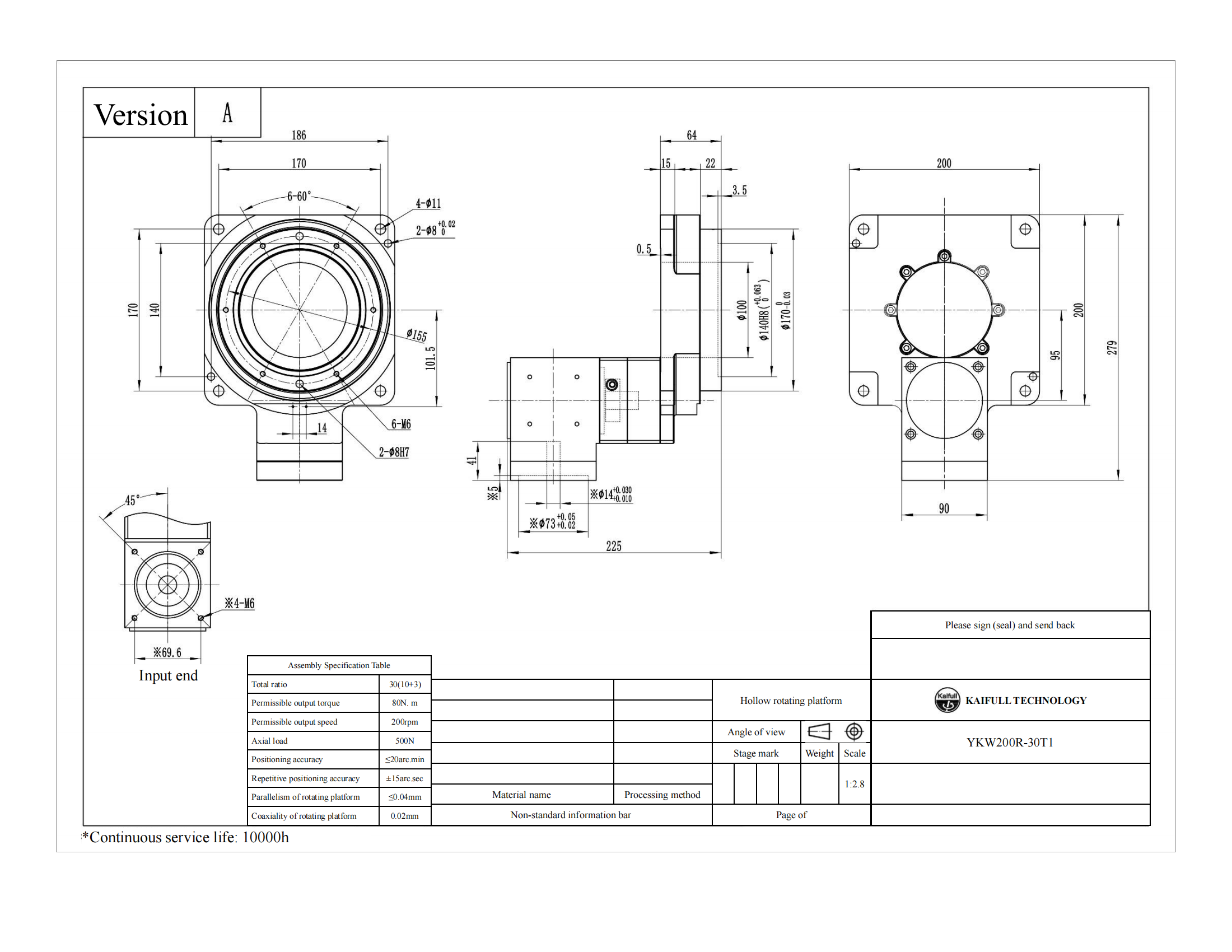

YKW200R-30T1 High-Precision Hollow Rotary Platform with 30:1 Reduction Ratio

The YKW200R-30T1 hollow rotary platform is a high-performance solution engineered for precision movement and load-bearing in demanding industrial applications. This robust platform offers an impressive allowable torque of 80 N.m, supporting axial loads of up to 200 kg and radial forces of 80 N.m. Its 30:1 reduction ratio, combined with a fast disk rotation speed of 720° per second, delivers the ideal combination of speed and torque for applications requiring both high power and precision.

This rotary platform is designed with a positioning accuracy of 8 arc-min and a repetitive positioning accuracy of ≤±30 arc-sec, ensuring exceptional performance during extended operation cycles. With an accuracy life of over 15,000 intermittent operations, it is perfectly suited for high-cycle applications such as robotic systems, automated machinery, and industrial precision devices.

Weighing 15 kg, the YKW200R-30T1 features durable construction with IP40-rated ingress protection, providing resistance against dust and small debris in industrial environments. The motor interface is designed to accommodate T1 motors with a shaft diameter of ф14 and a PCD of ф98.4, offering flexibility in motor integration.

The YKW200R-30T1 is an excellent choice for industries such as robotics, manufacturing, and automation where precise motion control and load handling are critical.
