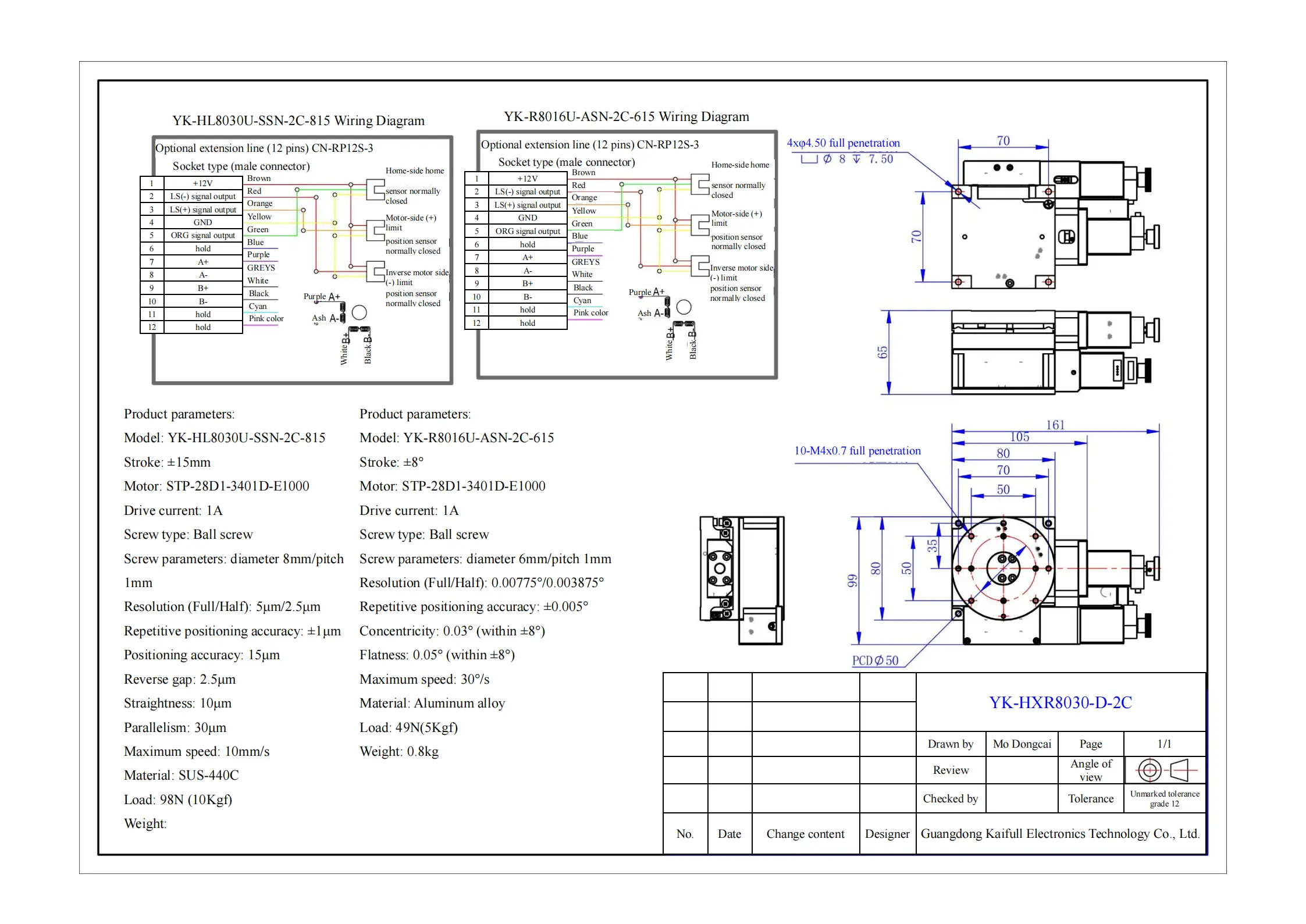

YK-HL8030U-SSN-2C-815 High Precision Fine-Tuning Platform with Ball Screw and STP Motor
The YK-HL8030U-SSN-2C-815 fine-tuning platform is designed for high-precision motion control in demanding applications. With a stroke of ±15mm, it offers a resolution of 5μm (Full) and 2.5μm (Half), providing ultra-precise movement. The platform features a positioning accuracy of 15μm and a repetitive positioning accuracy of ±1μm, ensuring reliable and repeatable results. It is equipped with a ball screw system (8mm diameter, 1mm pitch) for smooth, consistent motion. Powered by the STP-28D1-3401D-E1000 motor, the platform operates with a 1A drive current, achieving a maximum speed of 10mm/s. The platform supports loads up to 98N (10kgf) and is built with SUS-440C material for durability and longevity. Additional features include a reverse gap of 2.5μm, straightness of 10μm, and parallelism of 30μm, making this platform suitable for applications requiring high precision in motion control.
| ●Motor configuration and performance parameters | ||
|
Product parameters: Model: YK-HL8030U-SSN-2C-815 Stroke: ±15mm Motor: STP-28D1-3401D-E1000 Drive current: 1A Screw type: Ball screw Screw parameters: diameter 8mm/pitch 1mm Resolution (Full/Half): 5μm/2.5μm Repetitive positioning accuracy: ±1μm Positioning accuracy: 15μm Reverse gap: 2.5μm Straightness: 10μm Parallelism: 30μm Maximum speed: 10mm/s Material: SUS-440C Load: 98N (10Kgf) |
||
-
YK-HL8030U-SSN-2C-815.PDF
Download
