YK-C6050U-ASR-2-615 Precision Rotary Stage ±5.5° with Stepper Motor

YK-C6050U-ASR-2-615 Precision Rotary Stage ±5.5° with Stepper Motor Drive

High-accuracy rotary stage YK-C6050U-ASR-2-615 offers ±5.5° stroke, 0.005° repeatable accuracy, and a robust aluminum alloy build.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The YK-C6050U-ASR-2-615 precision rotary stage is designed for high-accuracy rotational adjustments, ideal for scientific research, optical instruments, and industrial measurement. Featuring a stroke of ±5.5° and a rotation center of 50±0.2mm, it ensures exceptional precision. Equipped with a STP-28D1012-01 stepper motor and driven by a ball screw mechanism (6mm diameter, 1mm pitch), it achieves resolutions of approximately 0.0051° (full step) and 0.00255° (half step). With a repeatable positioning accuracy of ±0.005° and a maximum speed of 20mm/s, this rotary stage supports loads up to 49N (5kgf). Its lightweight aluminum alloy construction ensures durability and easy integration.

    ●Motor configuration and performance parameters
    Product parameters:
    Model: YK-C6050U-ASR-2-615
    Stroke: ±5.5°
    Rotation center: 50±0.2mm
    Motor: STP-28D1012-01
    Drive current: 0.7A
    Screw type: Ball screw
    Screw parameters: diameter 6mm/pitch 1mm
    Resolution (Full/Half): ≈0.0051°/≈0.00255°
    Repetitive positioning accuracy: ±0.005°
    Reverse gap: 0.005°
    Maximum speed: 20MM/S
    Material: Aluminum alloy
    Load: 49N(5Kgf)
    Weight: 0.5kg

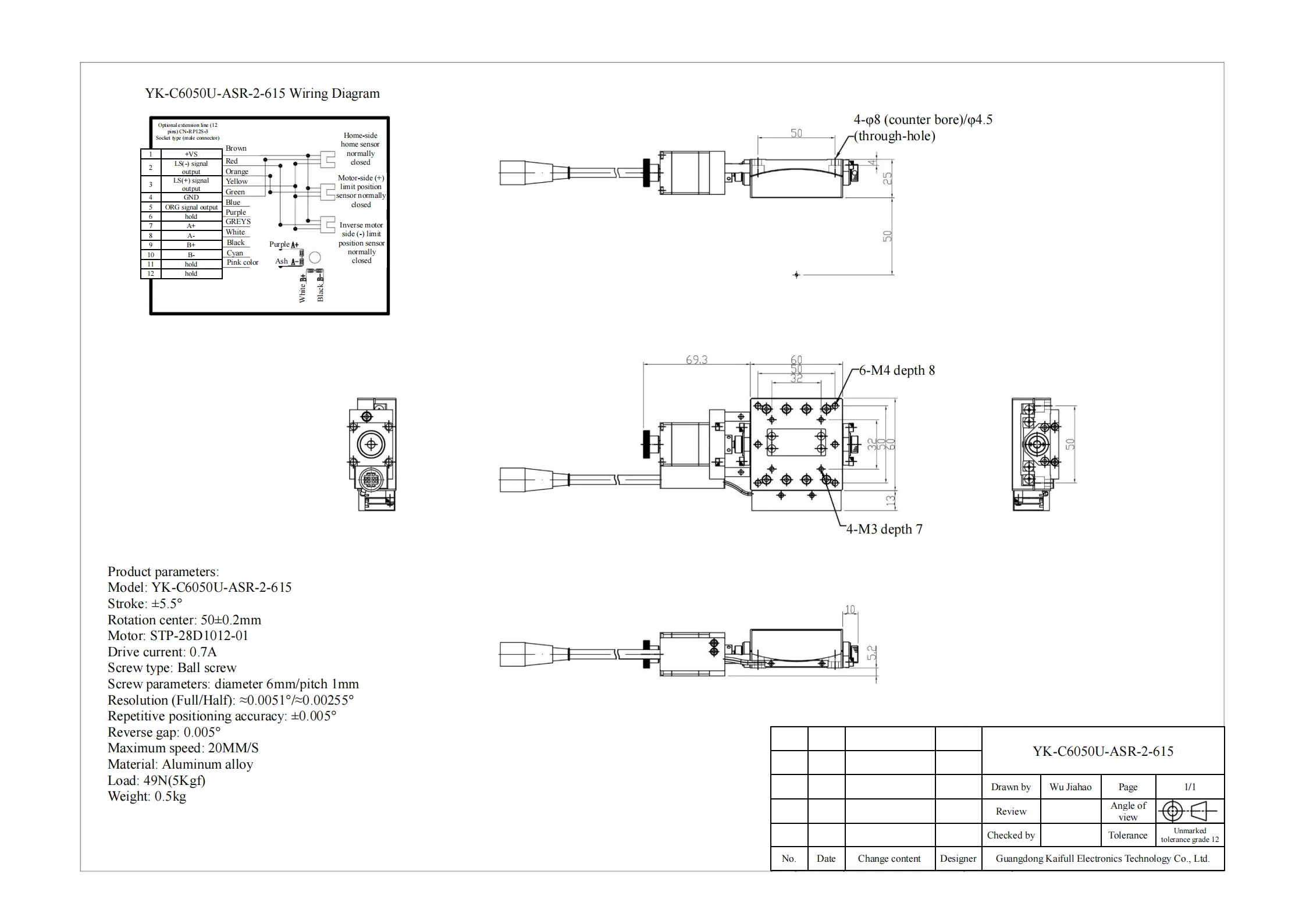

    YK-C6050U-ASR-2-615_00
