YK-42D2488-10GZ-150 Linear Actuator – 150mm Travel, Stepper Motor Drive, 10mm Lead, High Precision

YK-42D2488-10GZ-150 Electric Linear Stage – 150mm Stroke, 42mm Open-Loop Stepper Motor, 10mm Lead

Get the YK-42D2488-10GZ-150 linear stage with 150mm stroke, 10mm lead, ±5μm accuracy, and 42mm open-loop stepper motor. Ideal for precision automation and motion systems.

    Contact us Download
    Detail description
    Technical parameter

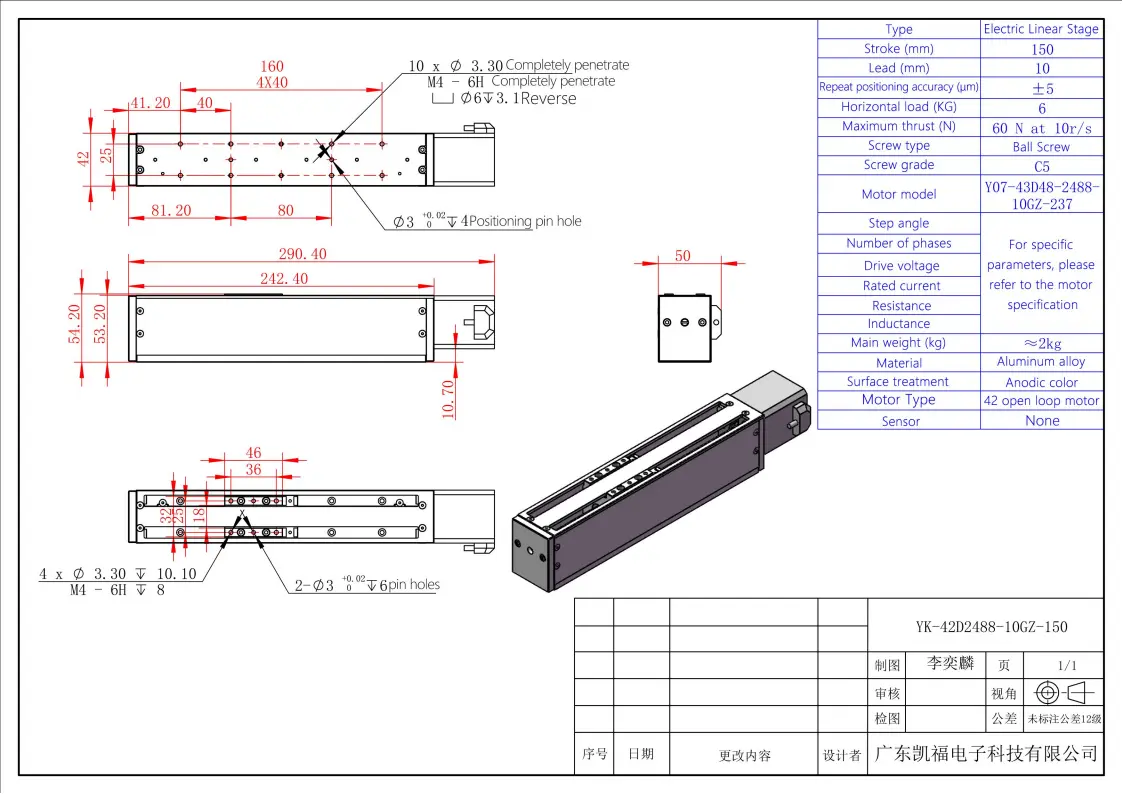

    Product size
    drawing
    The YK-42D2488-10GZ-150 is a high-efficiency electric linear stage featuring a 150mm stroke and a 10mm lead screw, designed for applications that require long travel and fast linear motion. Powered by a 42mm open-loop stepper motor, it offers ±5μm repeatability and supports up to 60N thrust with a 6kg horizontal load capacity. With compact dimensions of 42×54.2×290.4mm, this linear actuator is ideal for precision positioning in automation equipment, assembly lines, and inspection systems. Its open-loop control architecture ensures low-cost integration without compromising performance in repetitive tasks.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-150

     Dimensions (mm)

    42*54.2*290.4

     Stroke (mm)

    150

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-237
    YK-42D2488-10GZ-150_01
