YK-35D4706-06GZ-100-I Linear Actuator – 100mm Stroke, 6mm Lead, Built-in Sensor, Open-Loop Stepper Motor

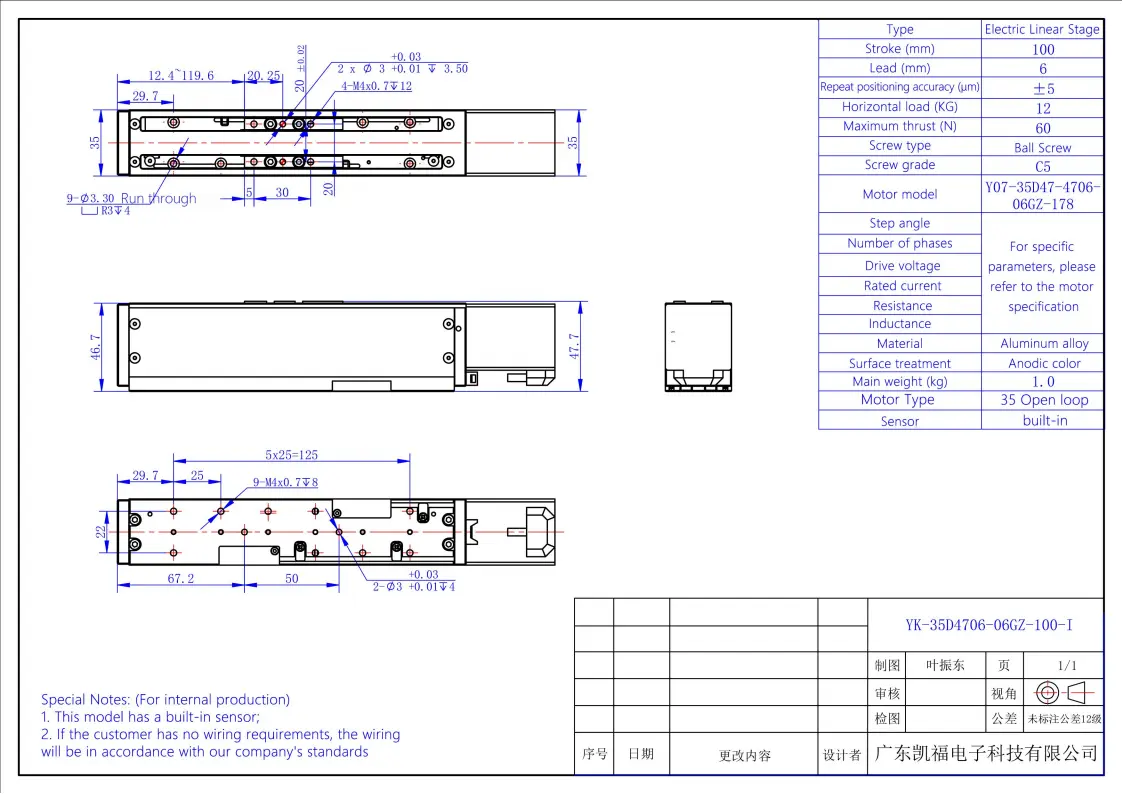

The YK-35D4706-06GZ-100-I is a precision-engineered linear actuator featuring a 100 mm stroke and 6 mm lead, optimized for fast and accurate linear movement. With a ±5 μm repeatability and compact 35×47.7 mm body dimensions, this actuator supports up to 12 kg horizontal load and achieves 60 N max thrust. Integrated with a built-in sensor and driven by a 35mm open-loop stepper motor (model Y07-35D47-4706-06GZ-178), it offers precise control without external encoders. Ideal for compact automation, electronics assembly, and semiconductor handling where speed, reliability, and accuracy are essential.
