YK-28D3011-02GZ-30M-I Electric Linear Slide with Brake and Sensor | Precision Actuator

YK-28D3011-02GZ-30M-I Electric Linear Slide with Brake and NPN Sensor – 30mm Stroke, ±5μm Repeatability

Discover the YK-28D3011-02GZ-30M-I electric linear slide with built-in brake, NPN sensor, 30 mm stroke, and ±5 μm repeatability. Ideal for compact automation systems.

    Contact us Download
    Detail description
    Technical parameter
    Product size

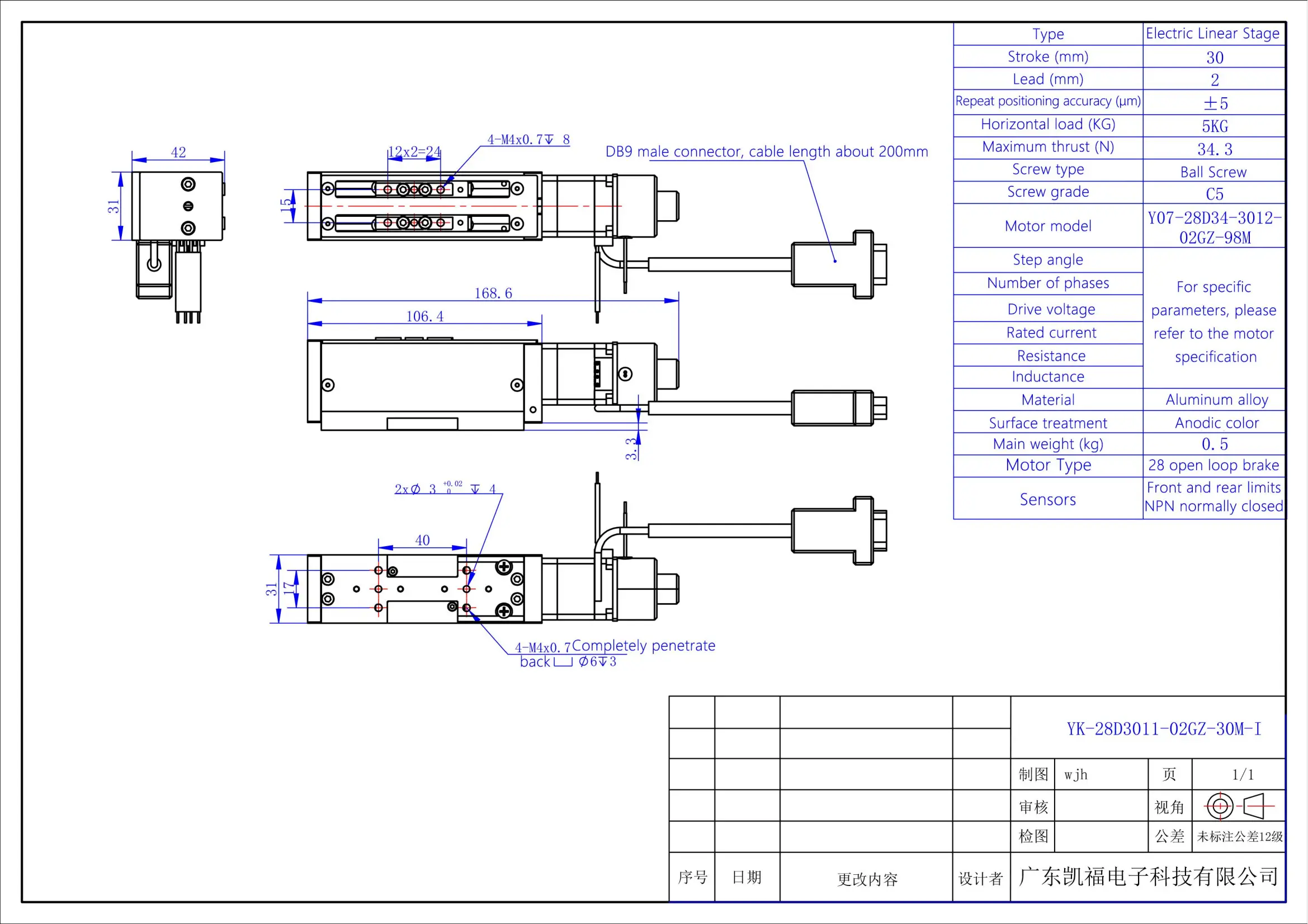

    drawing

    The YK-28D3011-02GZ-30M-I is a high-precision electric linear slide equipped with a 28 open-loop stepper motor with brake (model Y07-28D34-3012-02GZ-98M) and a NPN closed sensor for accurate position feedback. Designed with a 30 mm stroke, 2 mm lead, and ±5 μm repeatability, it supports stable and precise linear motion for demanding applications. Its built-in brake mechanism enhances safety by maintaining position during power loss, while the 31×42×168.6 mm compact frame allows for flexible installation. With a maximum thrust of 34.3 N and horizontal load capacity of 5 kg, it’s ideal for precision automation, semiconductor equipment, and optical alignment systems.

    ●Motor configuration and performance parameters

    Model Number

    YK-28D3011-02GZ-30M-I

     Dimensions (mm)

    31*42*168.6

     Stroke (mm)

    30

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    5

     Max Thrust (N)

    34.3

     Motor Model

    28 open loop brake

     Sensor

    NPN closed

     Motor Type

    Y07-28D34-3012-02GZ-98M
    YK-28D3011-02GZ-30M-I_01
