YK-28D3011-02GZ-30-I Electric Linear Slide | ±5μm Repeatability, 30mm Stroke

YK-28D3011-02GZ-30E-I Compact Linear Actuator – 30mm Stroke, 2mm Lead, 28mm Closed-Loop Stepper with Sensor

Discover the compact YK-28D3011-02GZ-30E-I linear actuator with 30mm stroke, 2mm lead, ±5μm precision, 28mm closed-loop stepper, and integrated NPN sensor for high-precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

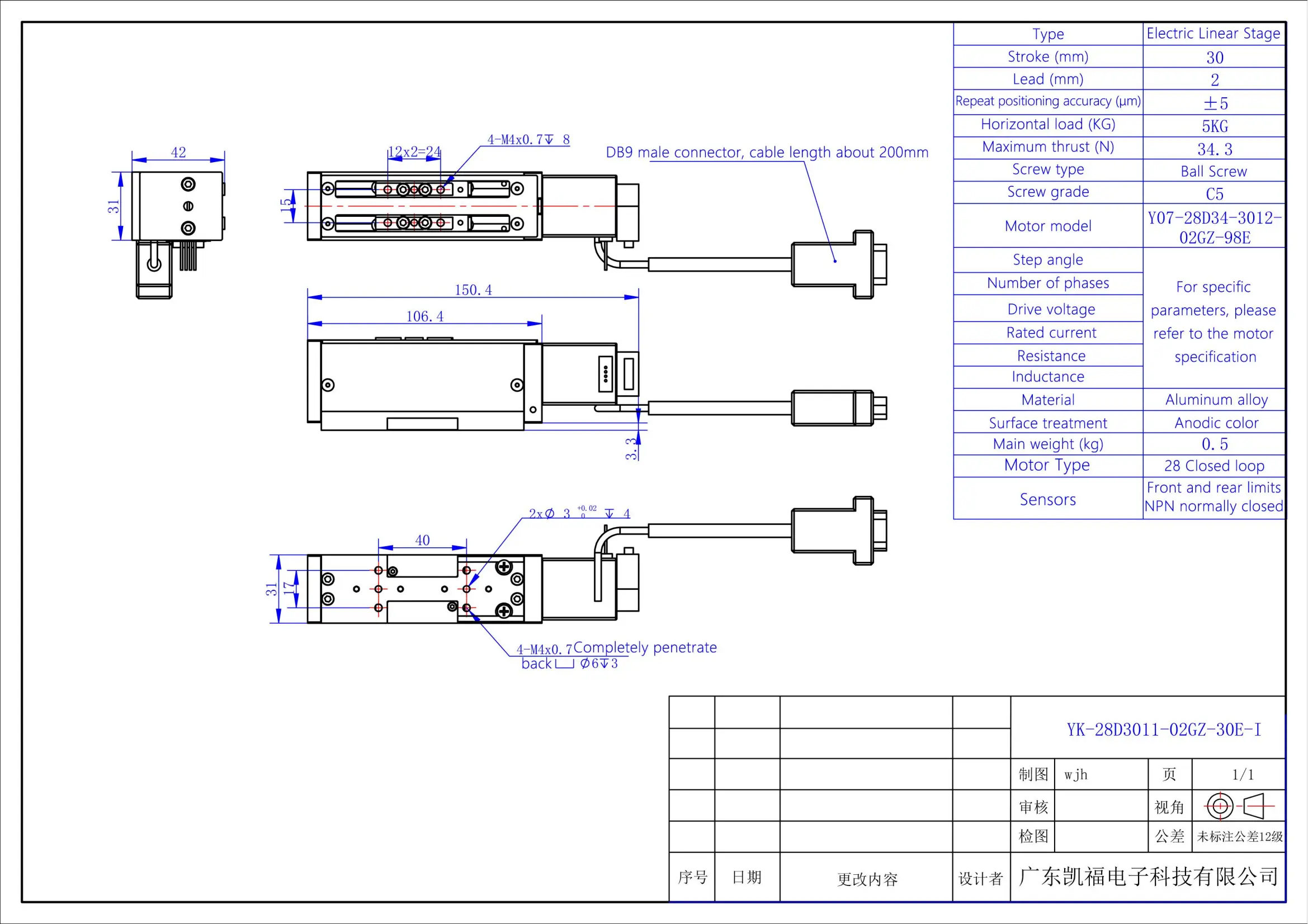

    drawing
    The YK-28D3011-02GZ-30E-I is a compact electric linear actuator equipped with a 28mm closed-loop stepper motor and NPN closed-type sensor, ensuring high-precision positioning and real-time feedback. It features a 30mm stroke, 2mm lead, and ±5μm repeatability, making it ideal for precision automation in confined spaces. With a maximum horizontal load of 5kg and 34.3N thrust, this unit delivers reliable performance for micro-positioning tasks in laboratory automation, optical alignment, and small-scale electronics assembly. Its small footprint and sensor integration make it perfect for systems requiring high repeatability and smart feedback control.

    ●Motor configuration and performance parameters

    Model Number

    YK-28D3011-02GZ-30E-I

     Dimensions (mm)

    31*42*150.4

     Stroke (mm)

    30

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    5

     Max Thrust (N)

    34.3

     Motor Model

    28 Closed loop

     Sensor

    NPN closed

     Motor Type

    Y07-28D34-3012-02GZ-98E
    YK-28D3011-02GZ-30E-I_01
