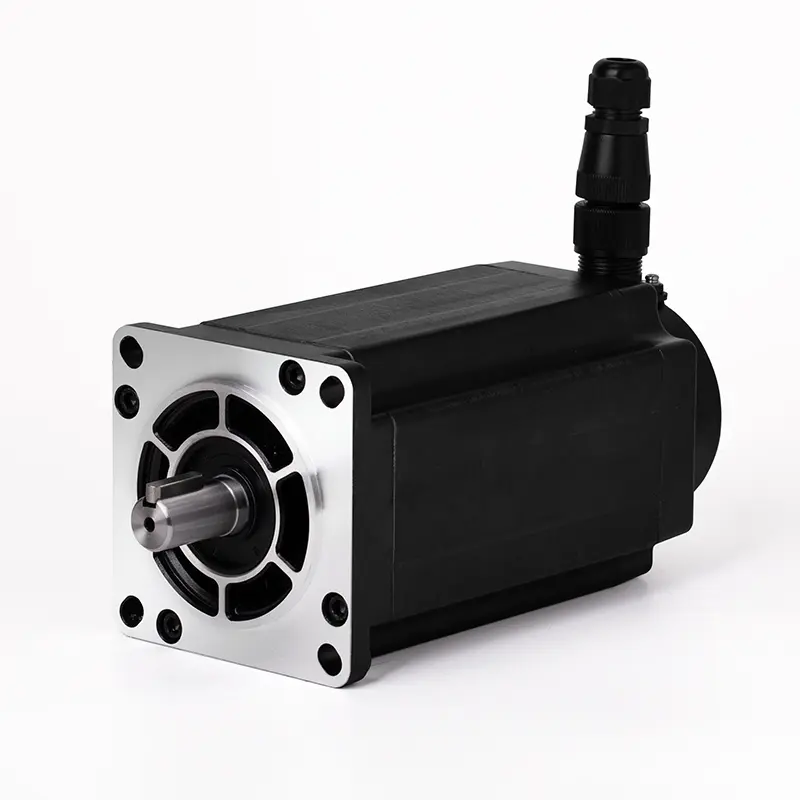

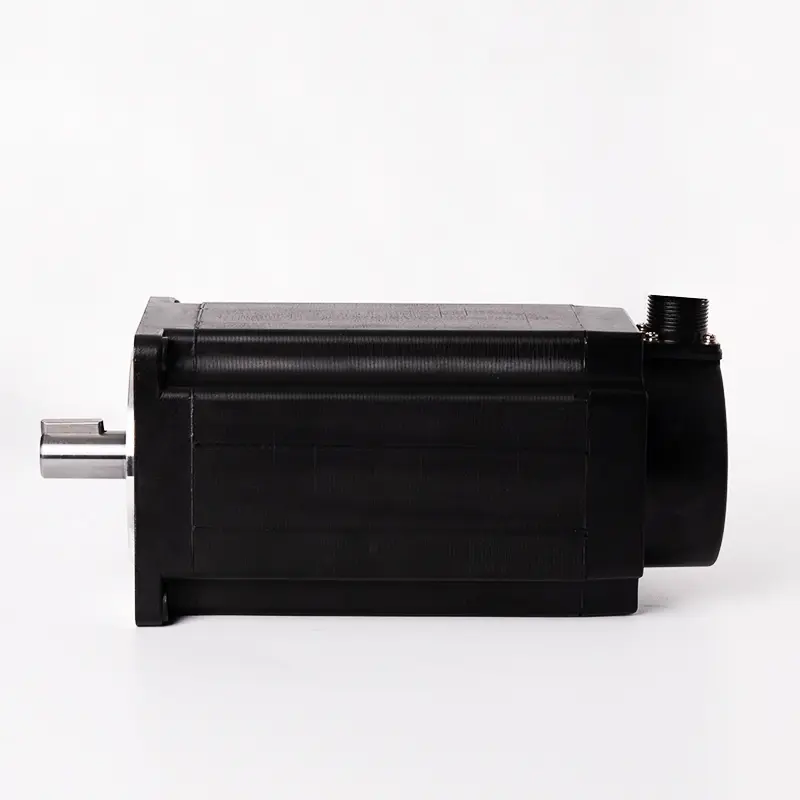

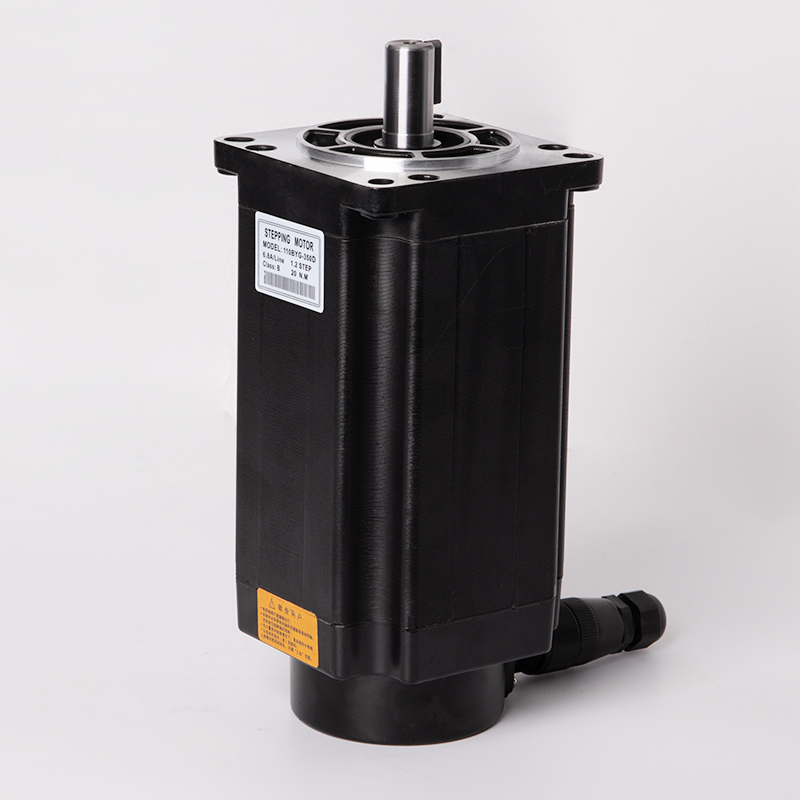

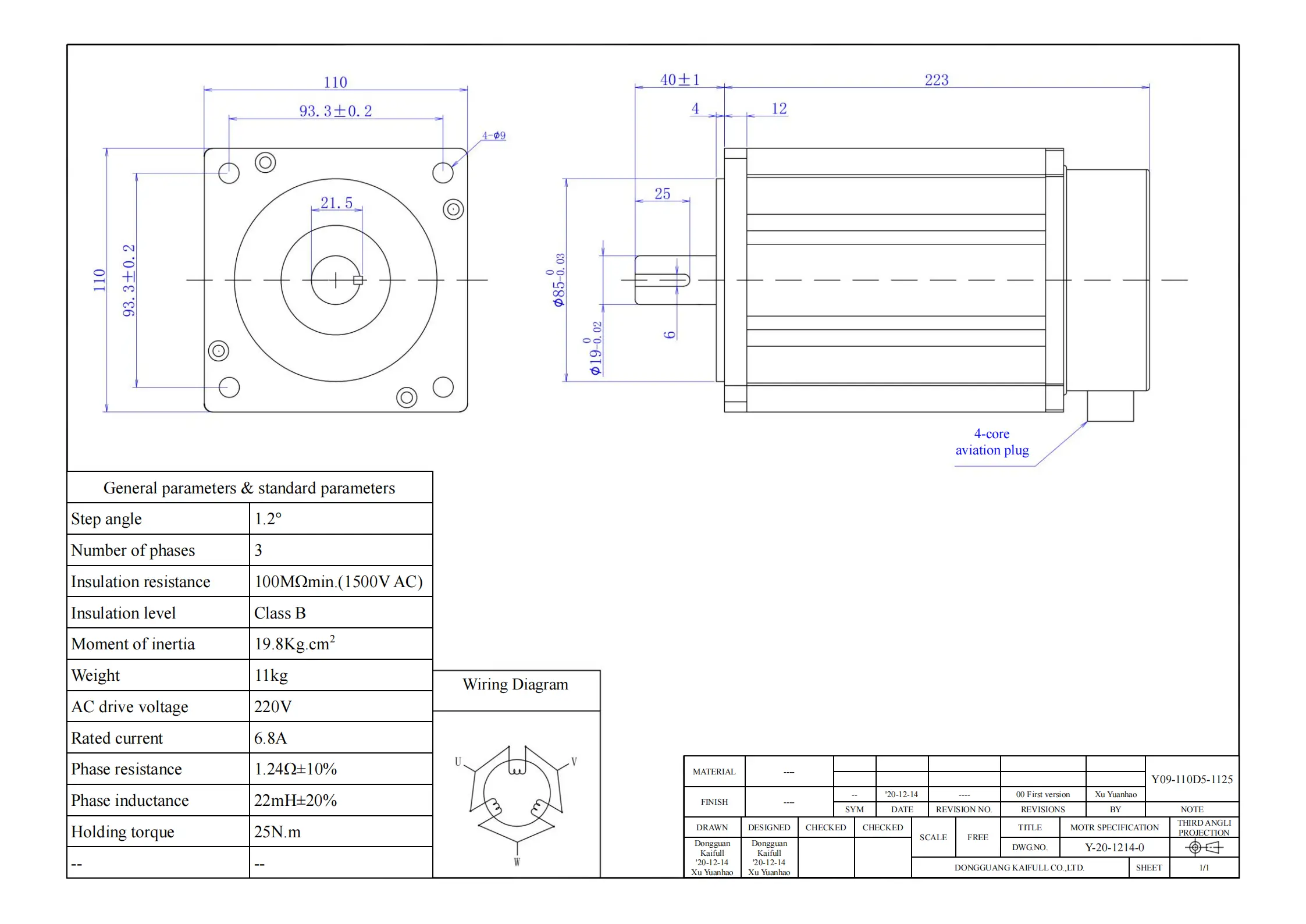

Y09-110D5-1125 High-Torque AC Stepper Motor

The Y09-110D5-1125 is a high-performance AC stepper motor designed for applications requiring robust torque and precise control. With a step angle of just 1.2°, this three-phase motor ensures fine resolution and accurate positioning, making it ideal for demanding automation tasks in industries such as robotics, CNC machinery, and conveyor systems.

Operating at a rated current of 6.8A, the motor requires an AC drive voltage of 220V to deliver optimal performance. Its phase resistance is measured at 1.24Ω ± 10%, while the phase inductance stands at 22mH ± 20%. This configuration not only enhances efficiency but also minimizes power losses, making the motor suitable for continuous operation in high-load scenarios.

Weighing approximately 11kg, the Y09-110D5-1125 is built with durability in mind. Its moment of inertia is rated at 19.8Kg·cm², facilitating smooth and controlled acceleration and deceleration, critical for precision in motion applications. The holding torque of 25N·m ensures that the motor maintains its position under load, providing reliability during operation.

The motor’s insulation resistance is rated at a minimum of 100MΩ when subjected to 1500V AC, ensuring high performance in various environmental conditions. With a Class B insulation level, the Y09-110D5-1125 is designed to withstand elevated temperatures, further enhancing its longevity and reliability.

Overall, this stepper motor is a perfect blend of power, efficiency, and precision, making it an excellent choice for engineers looking to achieve high performance in their automation projects.
