Y07-59D75-5752-ZK52 Stepper Motor | 57mm Frame, 4A Rated Current
Y07-59D75-5752-ZK52 Stepper Motor | 57mm Frame, 4A Rated Current

Y07-59D75-5752-ZK52 Stepper Motor | 57mm Frame, 1.8° Step Angle, 4A Rated Current

Y07-59D75-5752-ZK52 stepper motor with 1.8° step angle, 4A rated current, 1.8N thrust, perfect for high torque applications in automation and robotics.

    Contact us Download
    Detail description
    Technical parameter

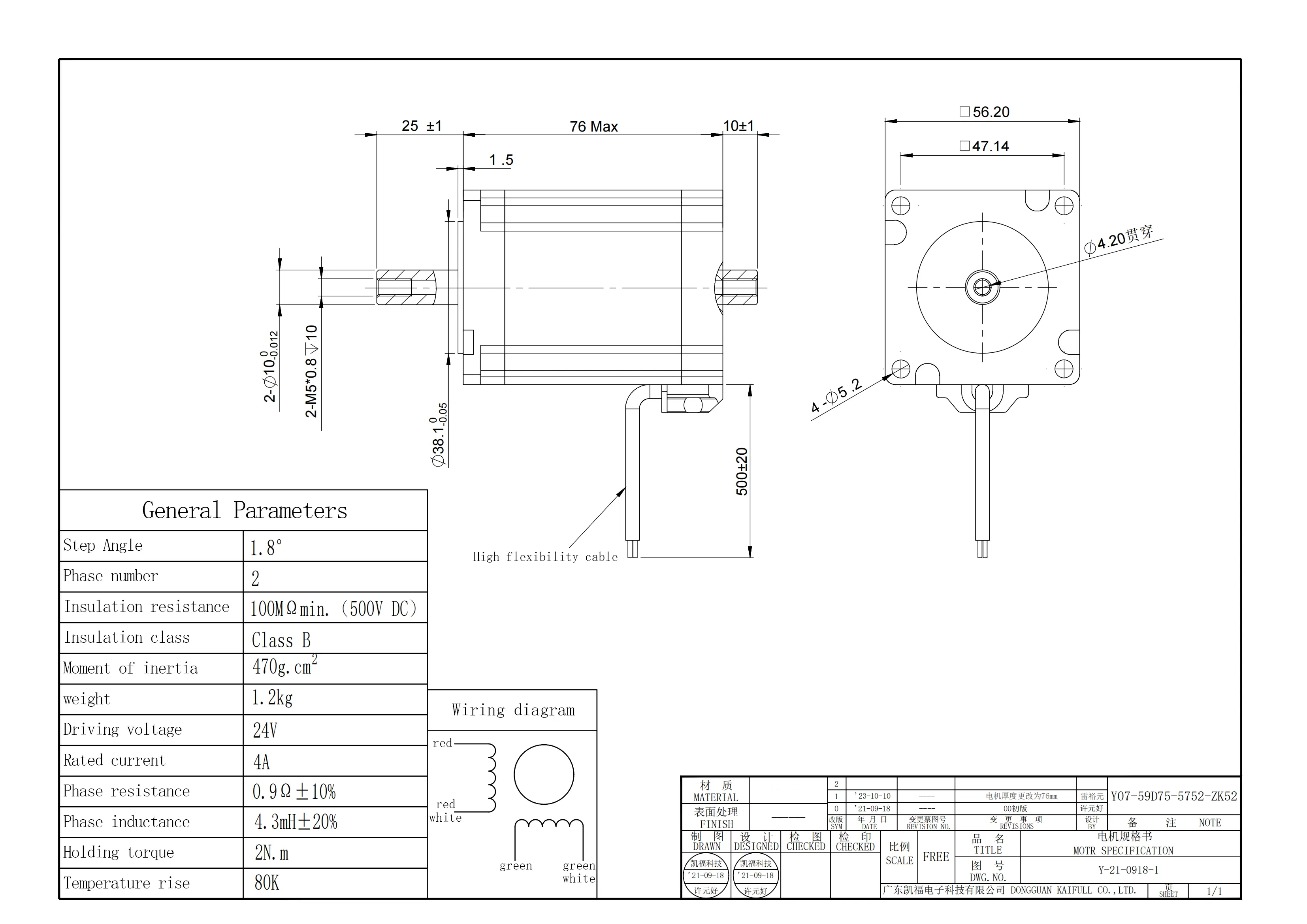

    Product size
    drawing

    The Y07-59D75-5752-ZK52 stepper motor is designed with a 57mm frame size and offers high precision with its 1.8° step angle. With a rated current of 4A and a resistance of 1Ω, this motor provides optimal performance for demanding applications. It boasts an inductance of 2.4mH and a rotor inertia of 470g·cm², ensuring smooth and accurate movement. The motor features a minimum thrust of 1.8N, making it suitable for tasks requiring moderate to high torque. The motor is equipped with a 10mm shaft diameter, a 25mm axis length, and weighs 1200g, offering a durable and reliable solution for industrial automation, robotics, and motion control systems.

    ●Motor configuration and performance parameters

    Frame size /mm

    57mm

    Model

    Y07-59D75-5752-ZK52

    Step Angle

    1.8

    Rated current /A

    4

    Resistance /Ω

    1

    Inductance /mH

    2.4

    Maintain torque /N.m
    Minimum thrust N

    1.8

    Rotor inertia /g.cm²

    470

    Number of leads

    4

    Shaft diameter

    10

    Axis length

    25

    Motor length /mm

    75

    Mass /g

    1200

    Y07-59D75-5752-ZK52_00
