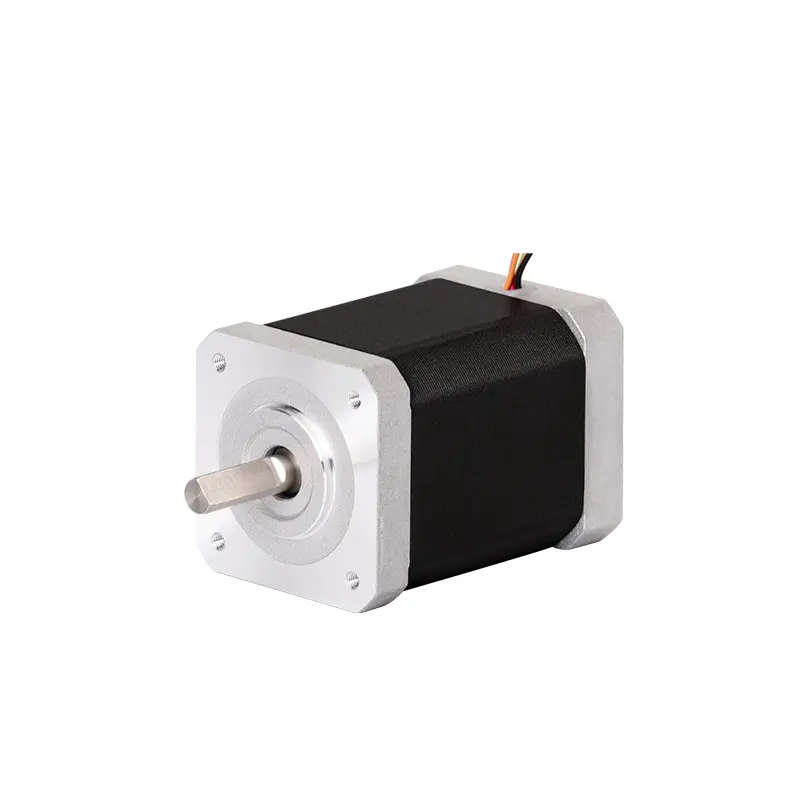

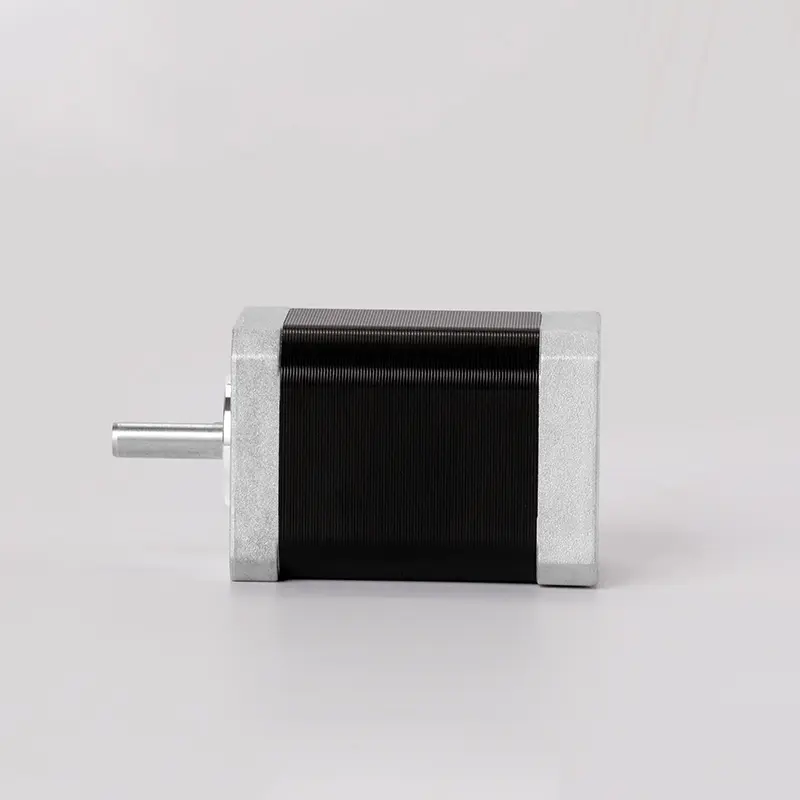

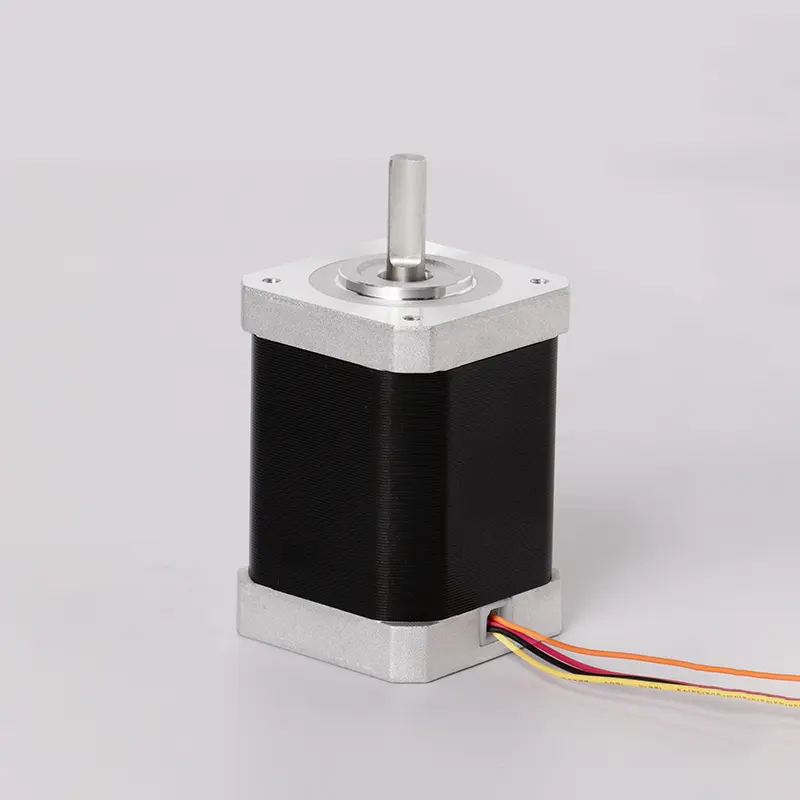

Y07-43D4-5040 Stepper Motor – 0.77N·m Holding Torque, 1.8° Step Angle

ITEM

SPECIFICATION

DESCRIPTION

DUTY

CONTINUOUS

DRIVE VOLTAGE

24 V D.C

RATED CURRENT

2.0 A (PHASE)

STEP ANGLE

1.8°(DEG) FULL STEP

NUMBER OF PHASE

2PHASE UNIPOLAR 2PHASE EXCITING

INSULATION CLASS(UL)

UL CLASS B (COIL)

WINDING RESISTANCE

2.0Ω±10%

25°C

WINDING INDUCTANCE

3.85mH±20%

NOTE)1

HOLDING TORQUE

0.77N·m(790kgf·cm) MIN.

NOTE)2

DETENT TORQUE

190mN·m(2.0Kgf·cm) REF.

MAX STARTING PULSE RATE

1150PPS MIN.

NOTE)3

POSITIONAL ACCURACY

±0.09°(DEG) MAX.

NOTE)4

DIELECTRIC STRENGTH

500V A.C 1MINUTE NO ABNORMAL

NOTE)5

INSULATION RESISTANCE

100 MΩ MIN.

NOTE)6

TEMPERATURE RISE

80 K (80 DEG ) MAX.

NOTE)7

ITEM

SPECIFICATION

DESCRIPTION

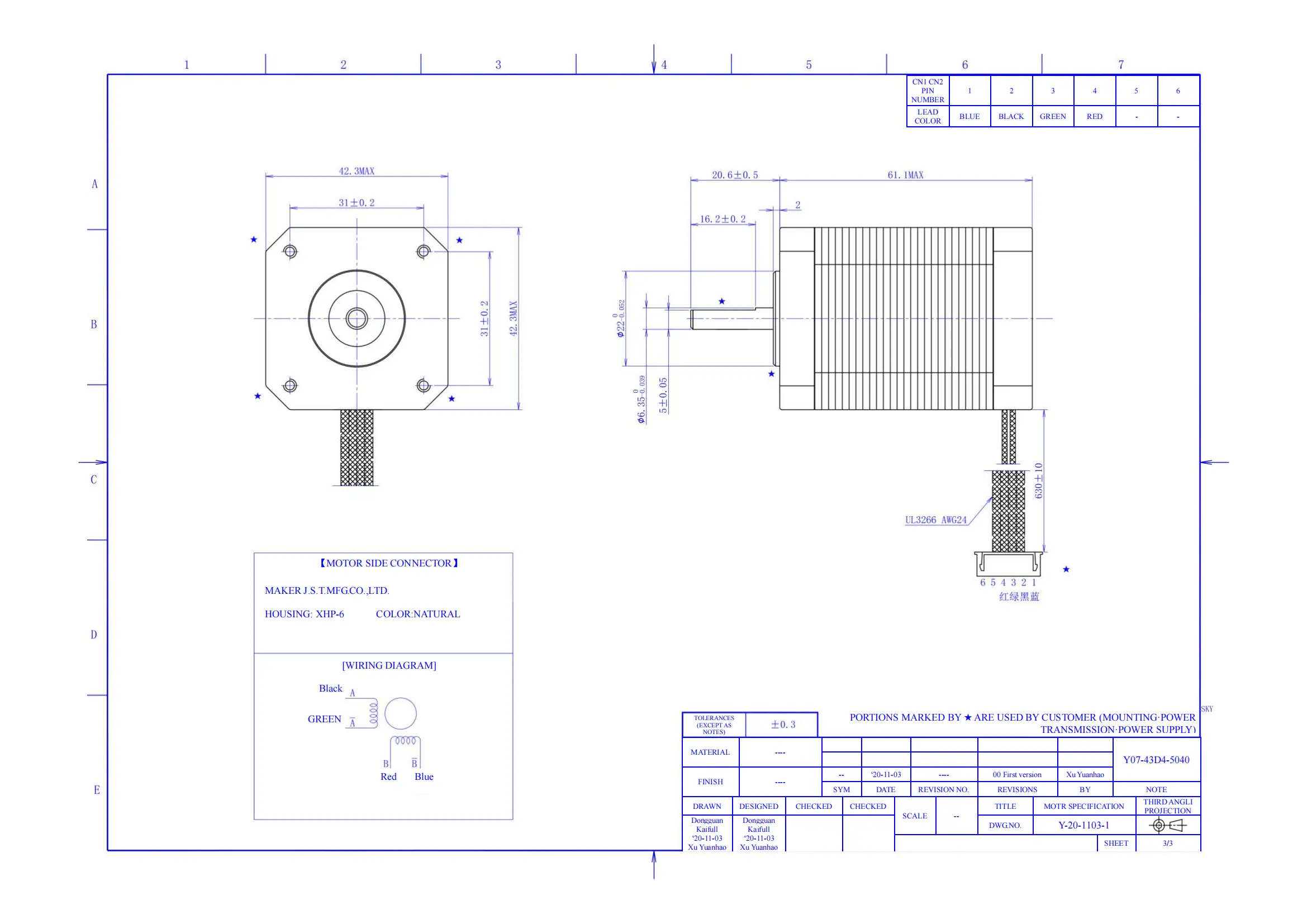

MECHANICAL DEMENSION

ACCORDING TO SPECIFICATION Y-20-1103-1(PAGE3/3)

SHAFT MATERIAL

SUS303

BEARING

SINGLE ROW BALL BEARING

END BELL MATERIAL

ALUMINUM ALLOY

MASS

APPROXIMATELY 480g

ROTOR INERTIA

128g·cm² (128×10^-3 g·cm·s²)

APPROXIMATELY 128g·cm² (128×10^-3 g·cm·s²)

ITEM

SPECIFICATION

DESCRIPTION

DIRECTION OF ROTATION

PHASE SEQUENCE TO PRODUCE CLOCKWISE ROTATION VIEWED FROM MOUNTING END IS AS TABLE 1

TYPE OF LEAD WIRE

UL 3266 CSA AWG 24

COLOR OF LEAD WIRE

ACCORDING TO TABLE 2

LIFE

20000 HOURS MIN.

NOTE)8

MATERIALS OF MOTOR CONTAIN TEN SUBSTANCES Pb Cr(VI+) Cd Hg PBB PBDE DEHP BBP DBP AND DIBP THOSE CONTENTS COMPLY WITH THE RoHS INSTRUCTION.
