1, high precision: repeated positioning accuracy ≤15 arcseconds;

2, high rigidity: precision cross roller bearing, high rigidity, stable operation;

3, miniaturization: can be integrated motor and drive, more miniaturization;

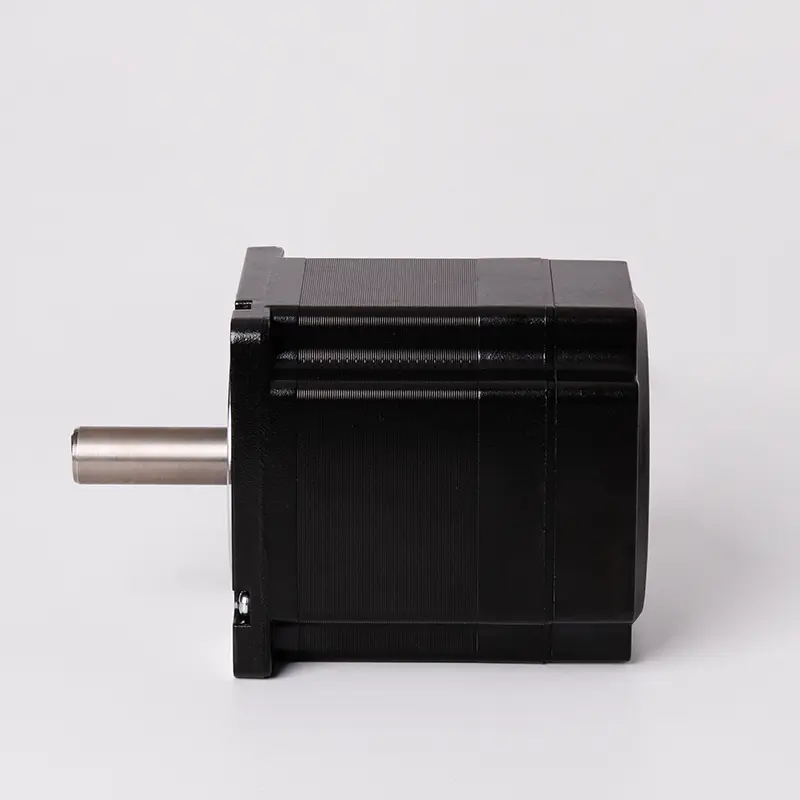

86K74-E1000 motor features:

1, Angle error ±0.09°;

2, humidity range: 20%RH~90%RH;

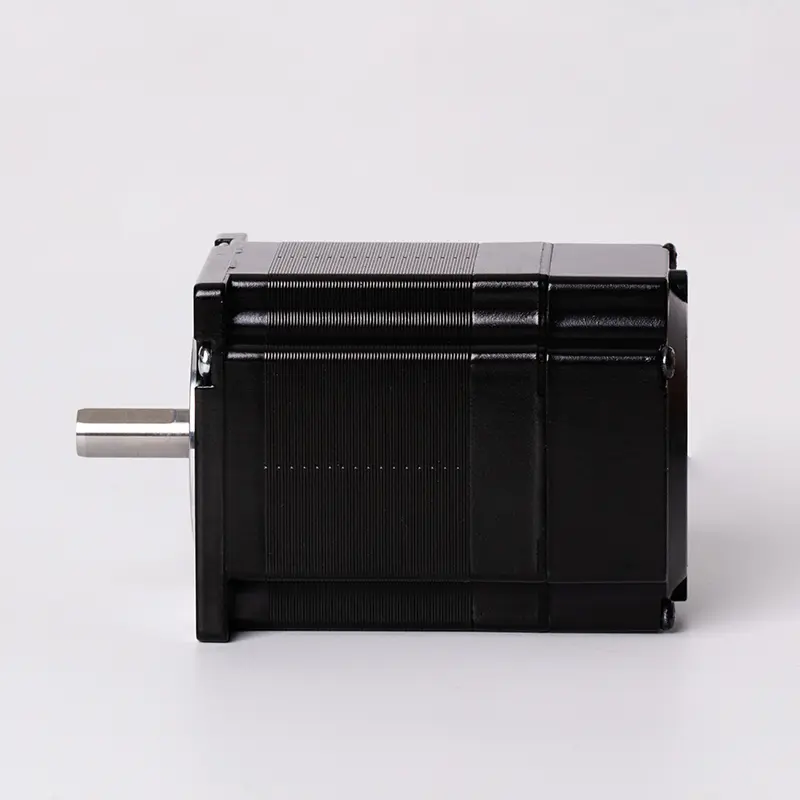

57K56-E1000 motor features:

1, Angle error ±0.09°;

2, humidity range: 20%RH~90%RH;

CANOpen bus control

Support a variety of control modes: PP, PV, HM, etc

Standard RJ45 cable port

Compatible with open/closed loop control

Built-in terminal resistance

Maximum output current 7A

24~75VDC

Photoelectric isolation, differential, 5~24VDC high level logic

When the motor stops running for 0.5S, the current automatically decreases to 50% of the running current

0~2MHz

Minimum pulse width 250ns

Pulse/direction or double pulse

Y2SD2-S80A

Suitable for two-phase hybrid stepper motor, Max. 6.0A(peak)

DC 24V~48V

0.4A~6.0A/ phase (peak)

Full bridge bipolar PWM drive

Small size, easy to use, 113mm*63mm*30mm;

Low voltage safe, easy to operate, DC24V;

Interface is rich, powerful, 8 digital input port, the two digital output, analog input port 1, 5 v output auxiliary power supply;

Support a variety of speed control methods: external analog, internal analog, IO, Modbus RTU communication

Two-way isolation IO, compatible with European and Japanese PLC input and output

Adaptive Hall learning function can be adapted to brushless motors with various Hall sequences

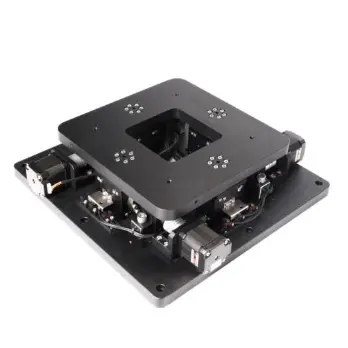

YK-XXY230EL-S1-1255 Model Features:

From 150 to 450, available in multiple sizes;

The height is much lower than the traditional XYR stacking method;

Greater load capacity;

Non-standard customization is easier to achieve;

YK-XXY200PL-S1-1255 Model Features:

From 150 to 450, available in multiple sizes;

The height is much lower than the traditional XYR stacking method;

Greater load capacity;

Non-standard customization is easier to achieve;

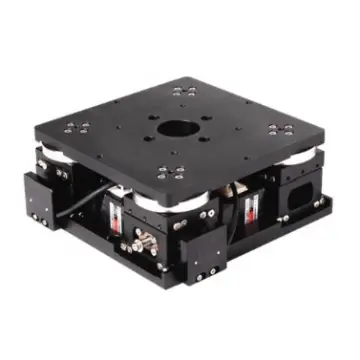

YK-XXY180P-2-617 Model Features:

From 150 to 450, available in multiple sizes;

The height is much lower than the traditional XYR stacking method;

Greater load capacity;

Non-standard customization is easier to achieve;

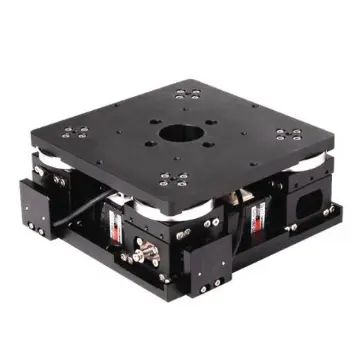

YK-XXY160PL-S1-KT39 Model Features:

From 150 to 450, available in multiple sizes;

The height is much lower than the traditional XYR stacking method;

Greater load capacity;

Non-standard customization is easier to achieve;

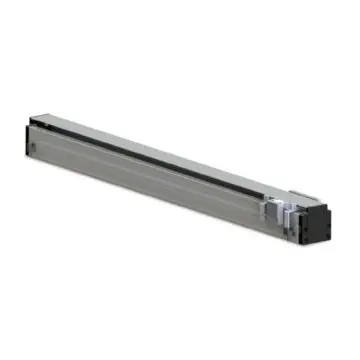

Linear motor drive;

Raster positioning/magnetic grid positioning;

High stability, high reliability, high response speed;

No backgap error;

Smooth movement, no wear, long service life;

Compact modular design;

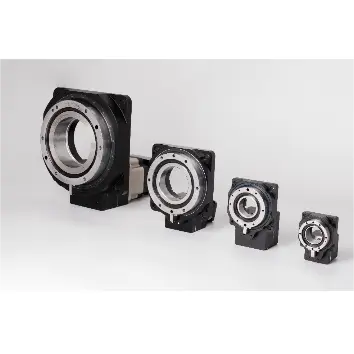

The YKW85K-5T2 is a high-performance mechanical component designed for applications requiring significant torque and precise control.

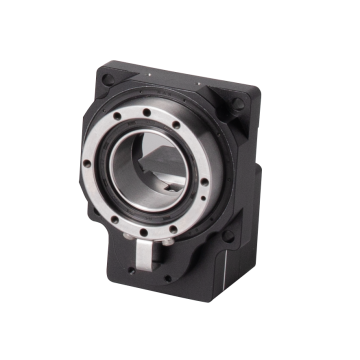

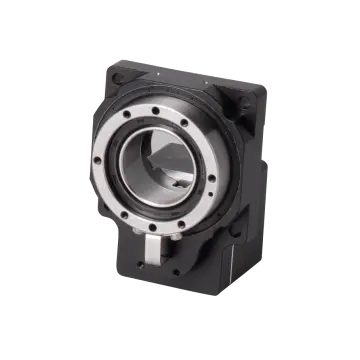

The YKW60K-5T1 is a precision mechanical component designed for applications requiring high torque and precise motion control. Here’s a detailed overview of its features:

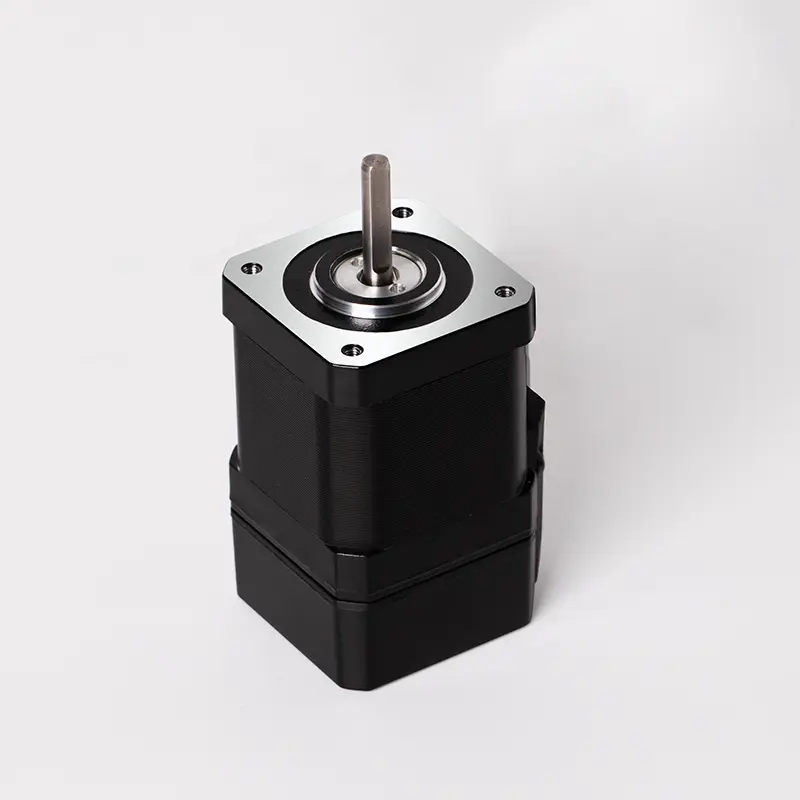

42K48-E1000 model motor features:

1, Angle error ±0.09°;

2, humidity range: 20%RH~90%RH;

Input Power: DC 24V-48V;

Communication: RS-485 isolated bus, supports MODBUS-RTU protocol;

Device Control: Supports up to 30 devices;

User Configurations: Current, microstepping, operation mode (pulse input, point control);

Motor Control: Start/stop, real-time status query;

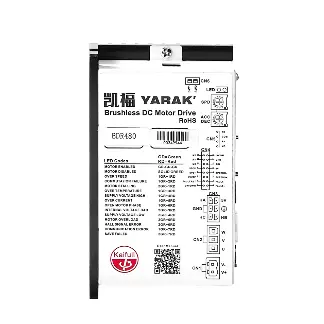

BDR430, small size, easy to use, 113mm*63mm*30mm;

Low voltage safe, easy to operate, DC24V;

Rich interface, powerful, 8 digital input port, 2 digital output, 1 analog input port, output 5v auxiliary power supply;

Support a variety of speed control methods: external analog, internal analog, IO, Modbus RTU communication;

Two-way isolation IO, compatible with European and Japanese PLC input and output;

Adaptive Hall learning function can be adapted to brushless motors with various Hall sequences.

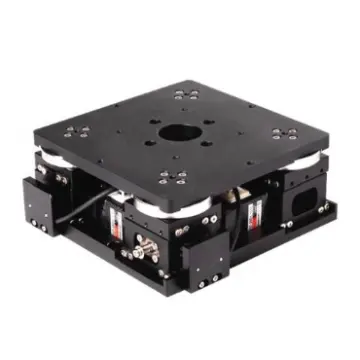

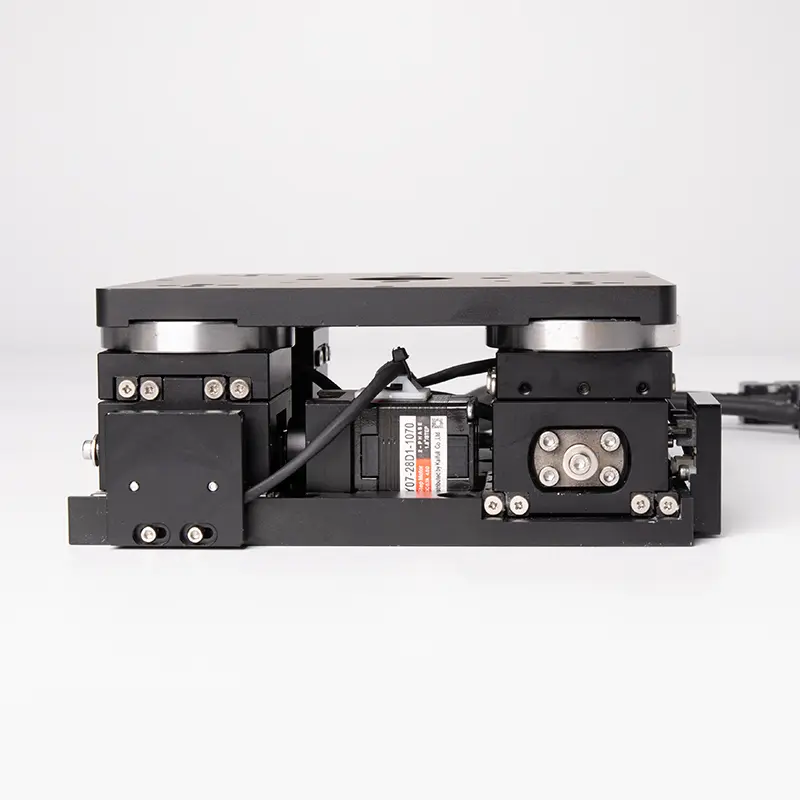

YK-XXY160P-2-617 Model Features:

From 150 to 450, available in multiple sizes;

The height is much lower than the traditional XYR stacking method;

Greater load capacity;

Non-standard customization is easier to achieve;

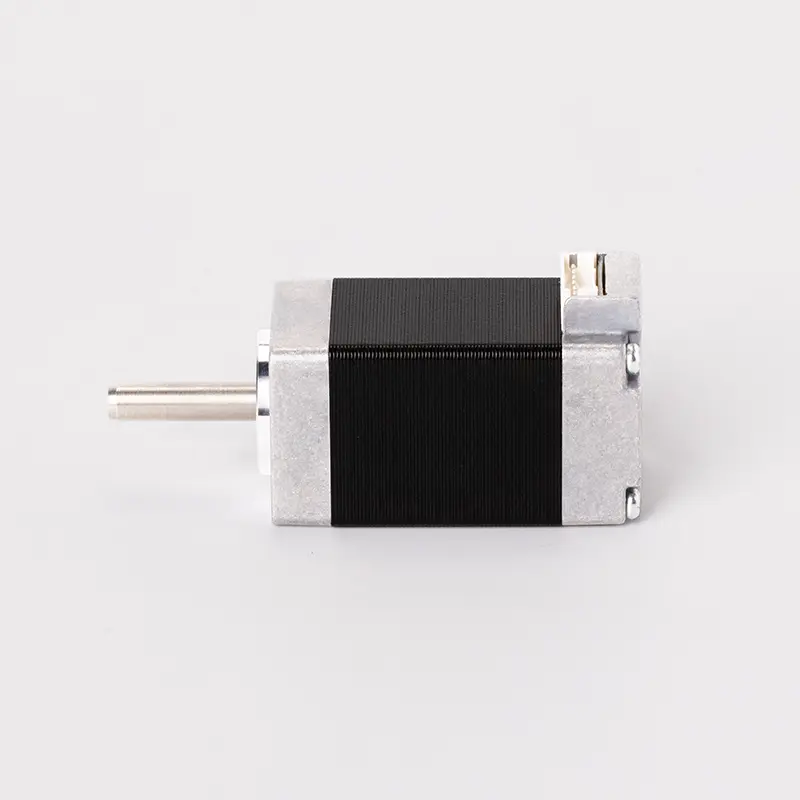

This 1.8° two-phase open-loop stepper motor operates at 24V DC with a rated current of 0.6A, providing a holding torque of 0.022N.m. Weighing approximately 70g, it is ideal for high-precision motion control applications.
