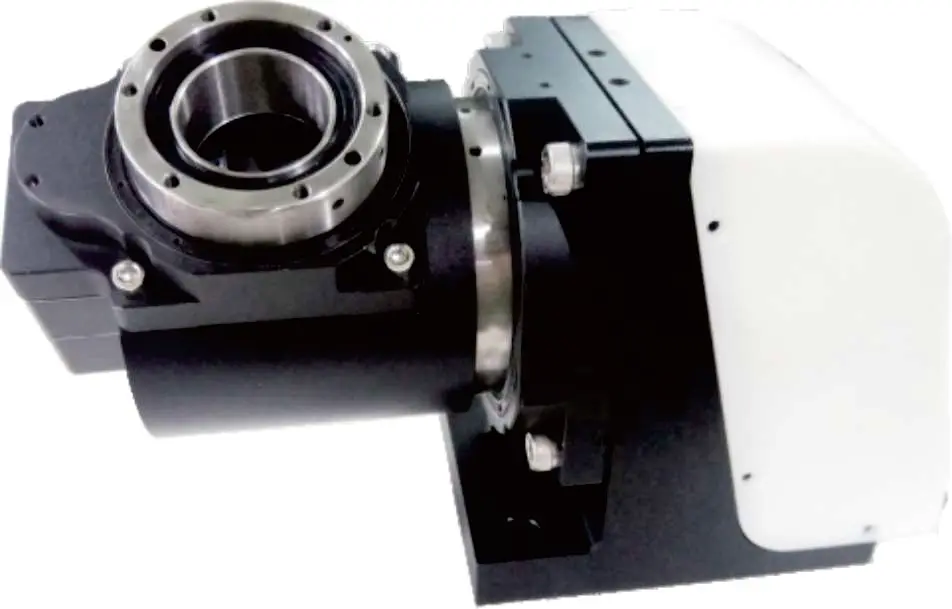

2D Rotary Module YKDR30 with Dual-Axis Stepper Control

Precision 2D Rotary Module AB Axis YKDR30 – Compact Dual-Axis Stepper System

High-precision 2D rotary module YKDR30 for robotics and automation. ±180°/360° dual-axis with stepper motors.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The YKDR30 2D Rotary Module AB Axis is a high-precision dual-axis rotary stage ideal for 3D applications and curved surface motion control. It features a compact design with a ±180° A-axis and 360° B-axis rotation, both driven by 42-type stepper motors. With a permissible torque of 5 N·m, load capacity of 3 kg, and high repeat accuracy of 10 arc-sec, it offers exceptional control for polar coordinate motion. Integrated with a 1:18 and 1:10 reduction ratio on A and B axes respectively, the unit maintains a maximum rotation speed of 1080°/sec. The module has a robust structure with a protection level of IP40, ensuring stable performance in automated and robotic systems.

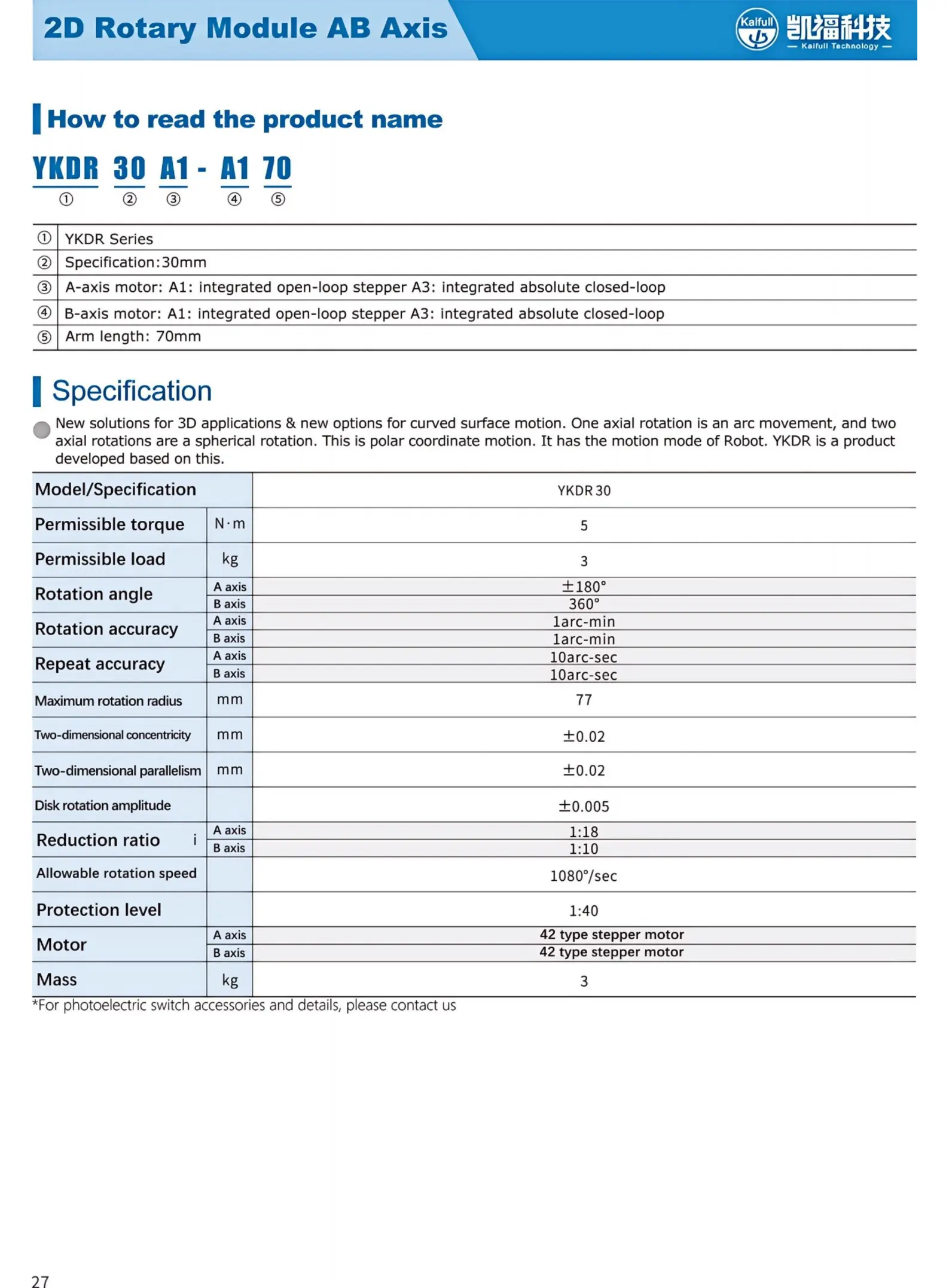

    extracted-from-2d-rotation-module-ab-axis-eng-_1

    ●Motor configuration and performance parameters
    提取自二维旋转模组AB轴（ENG）_2
