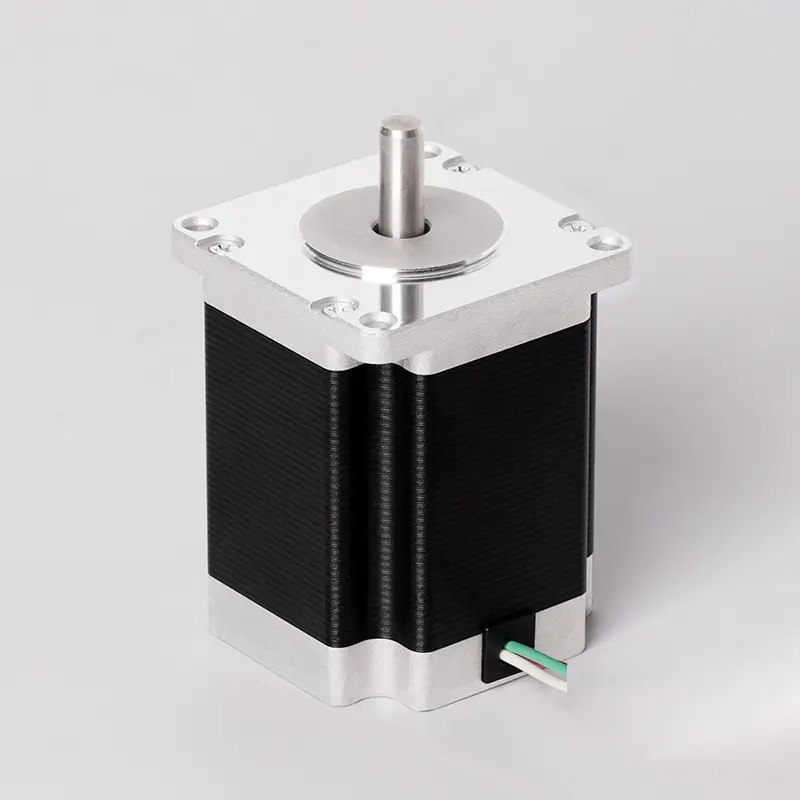

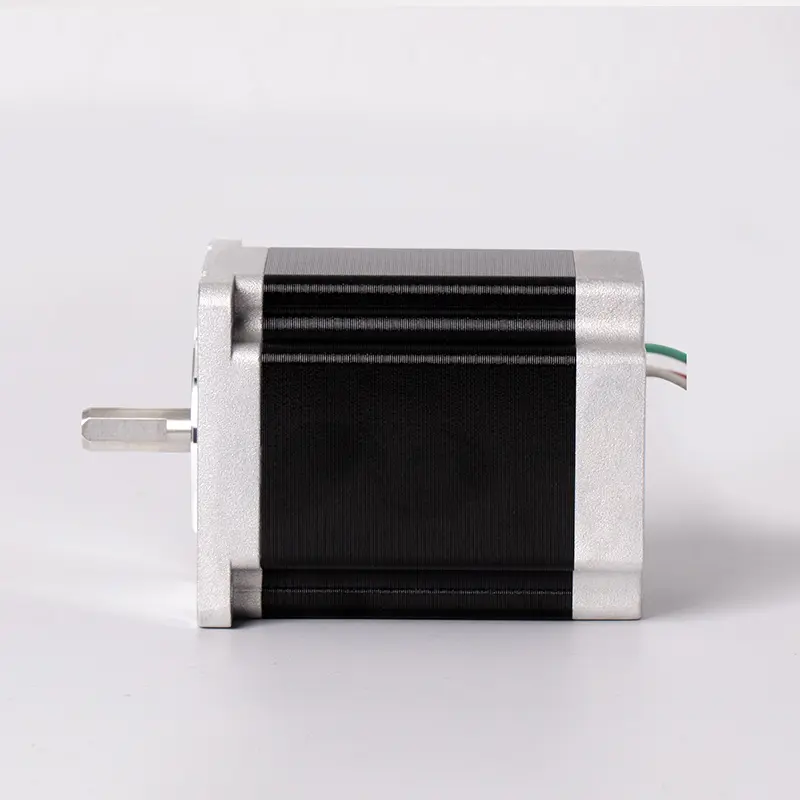

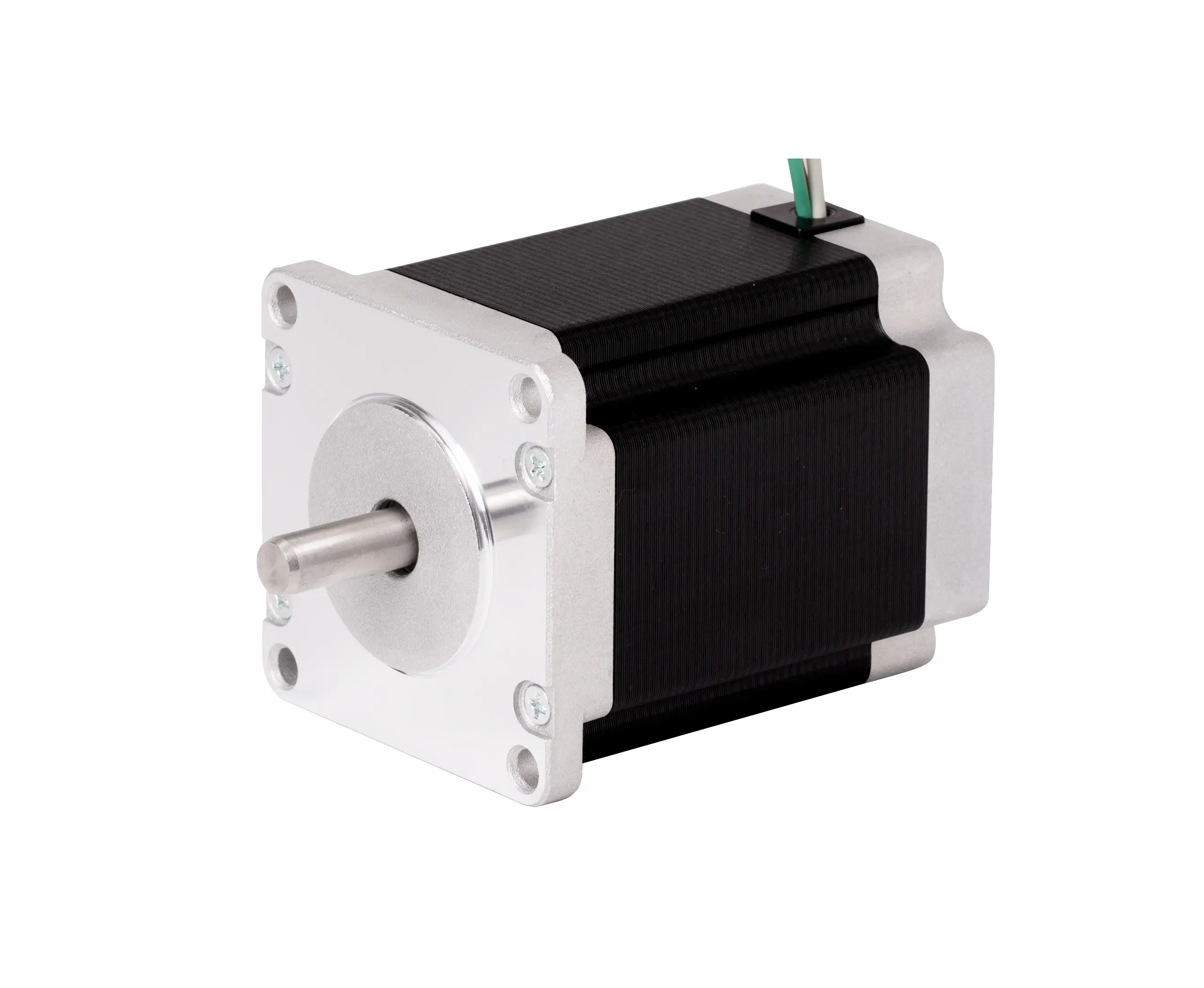

Precision 24V DC Stepper Motor Y09-59D3-7360 with High Holding Torque

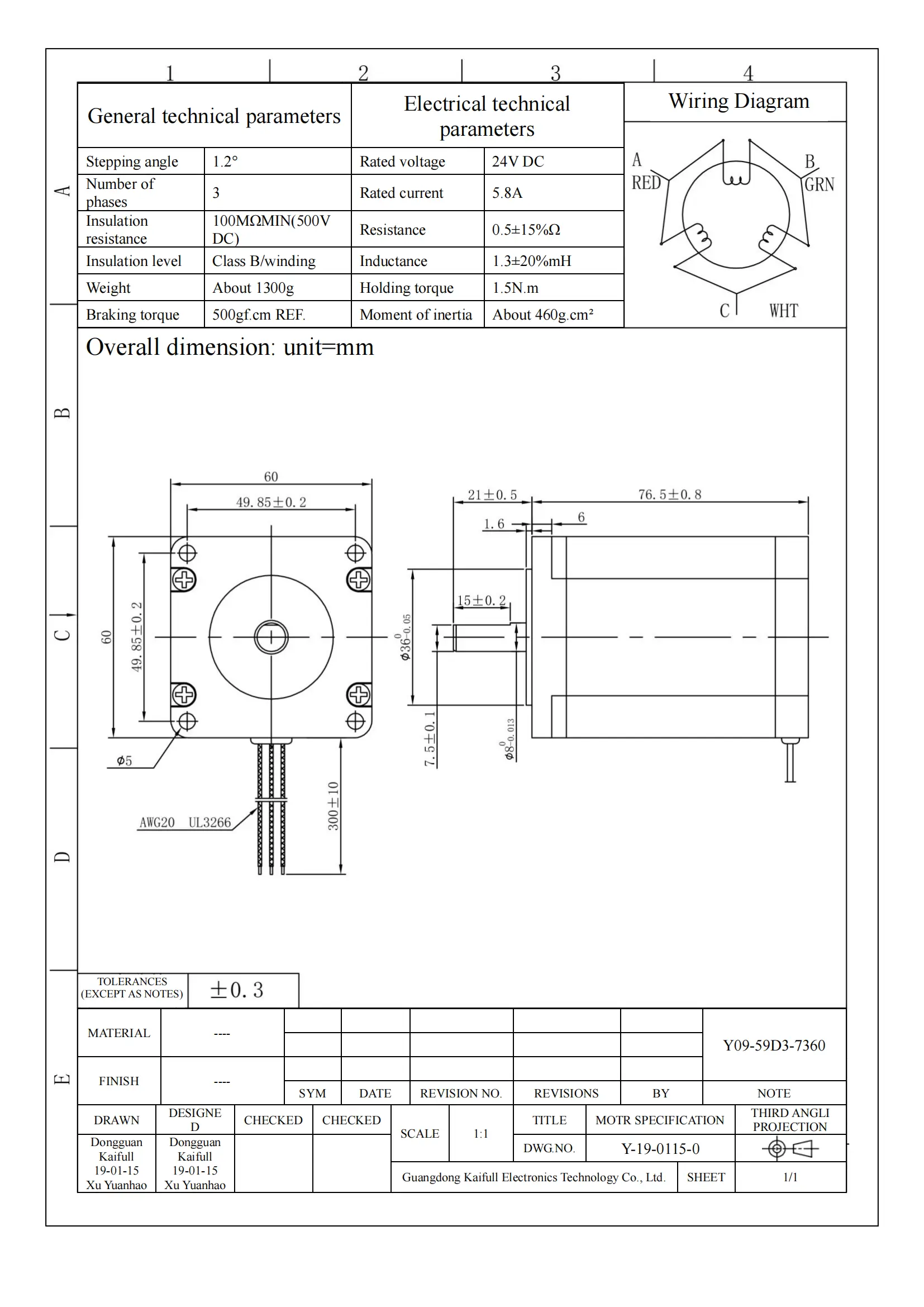

The Y09-59D3-7360 stepper motor is designed for high-precision applications that require reliable performance and accuracy. With a stepping angle of 1.2° and a rated voltage of 24V DC, this motor operates with exceptional control, making it ideal for automation, robotics, and CNC machinery.

Featuring a robust rated current of 5.8A, the Y09-59D3-7360 delivers a holding torque of 1.5N.m, ensuring effective load handling and precise positioning during operation. The braking torque of 500gf.cm further enhances its performance, allowing for quick stops and improved stability in dynamic environments.

With an impressive insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.5±15Ω, this motor meets high safety and reliability standards. The Class B insulation level protects the motor from overheating, while the inductance of 1.3±20%mH ensures smooth operation.

Weighing approximately 1300g with a moment of inertia of 460g.cm², the Y09-59D3-7360 is designed to withstand demanding conditions while providing optimal performance. This stepper motor is a top choice for engineers seeking a dependable solution for precision motion control.
