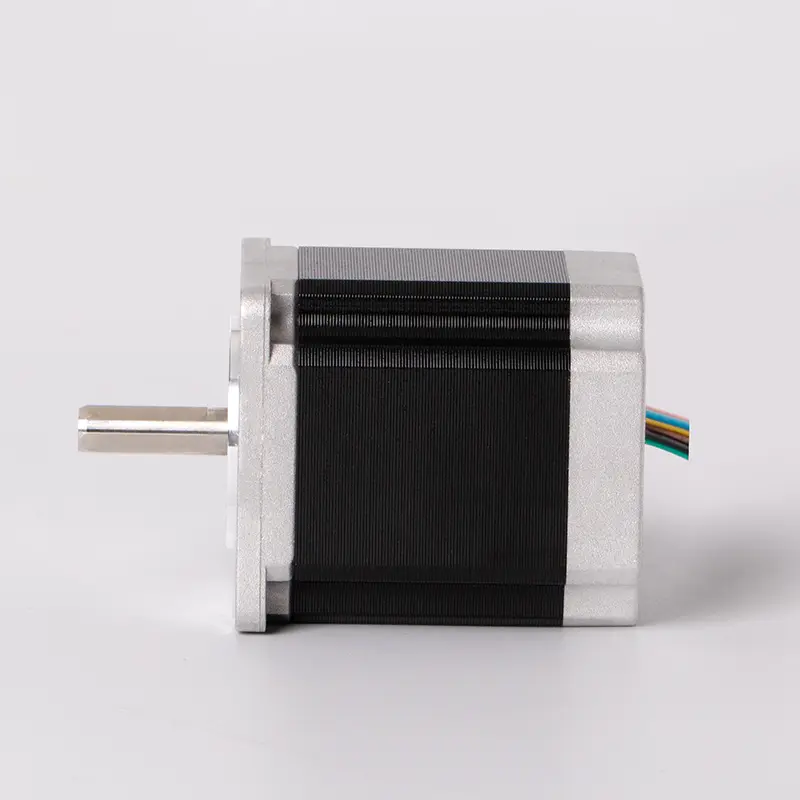

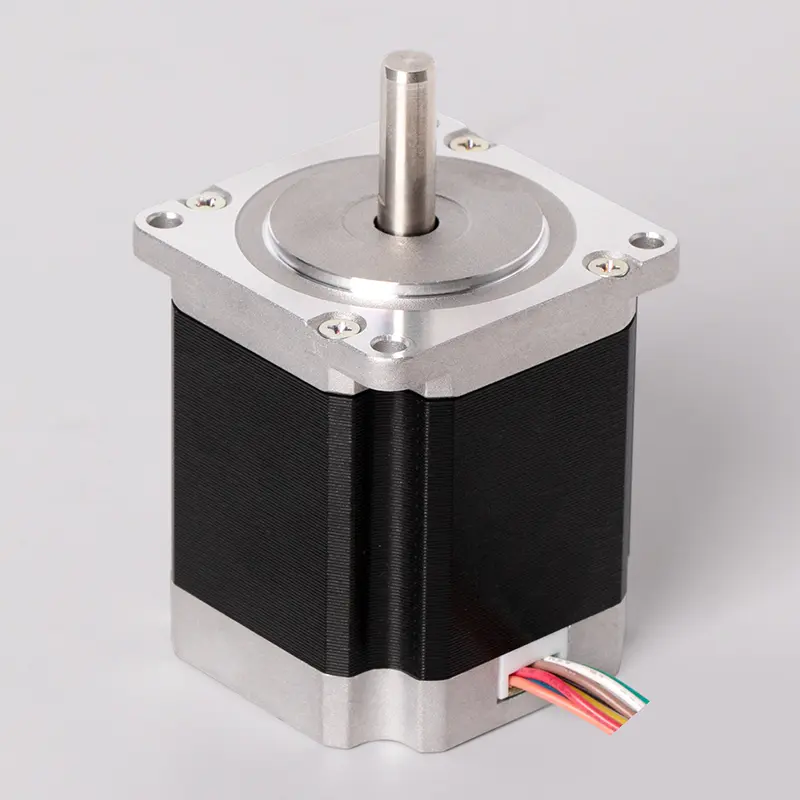

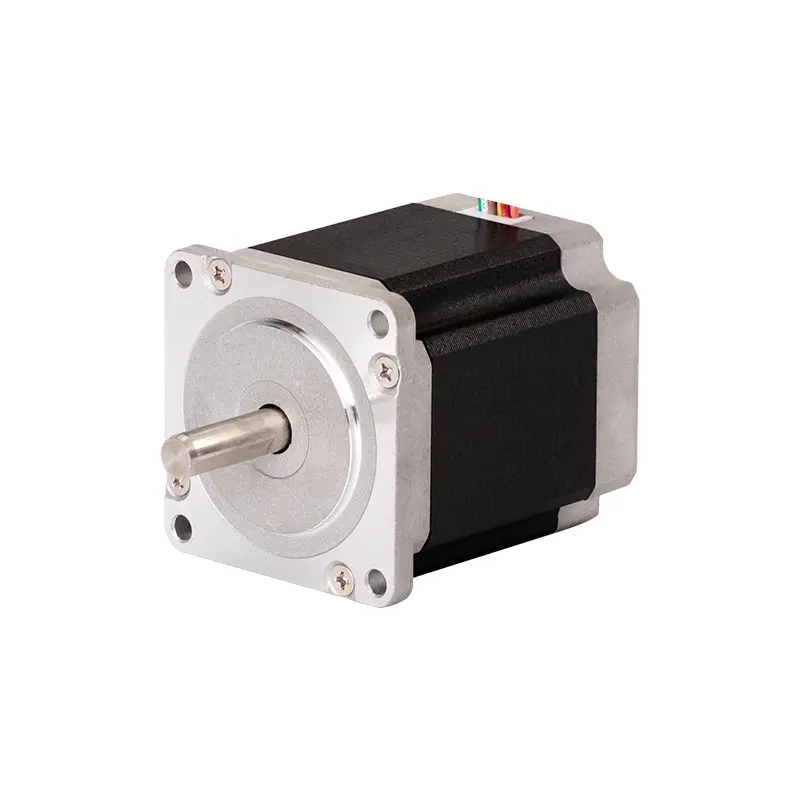

Powerful 24V DC Stepper Motor Y07-59D1-4008

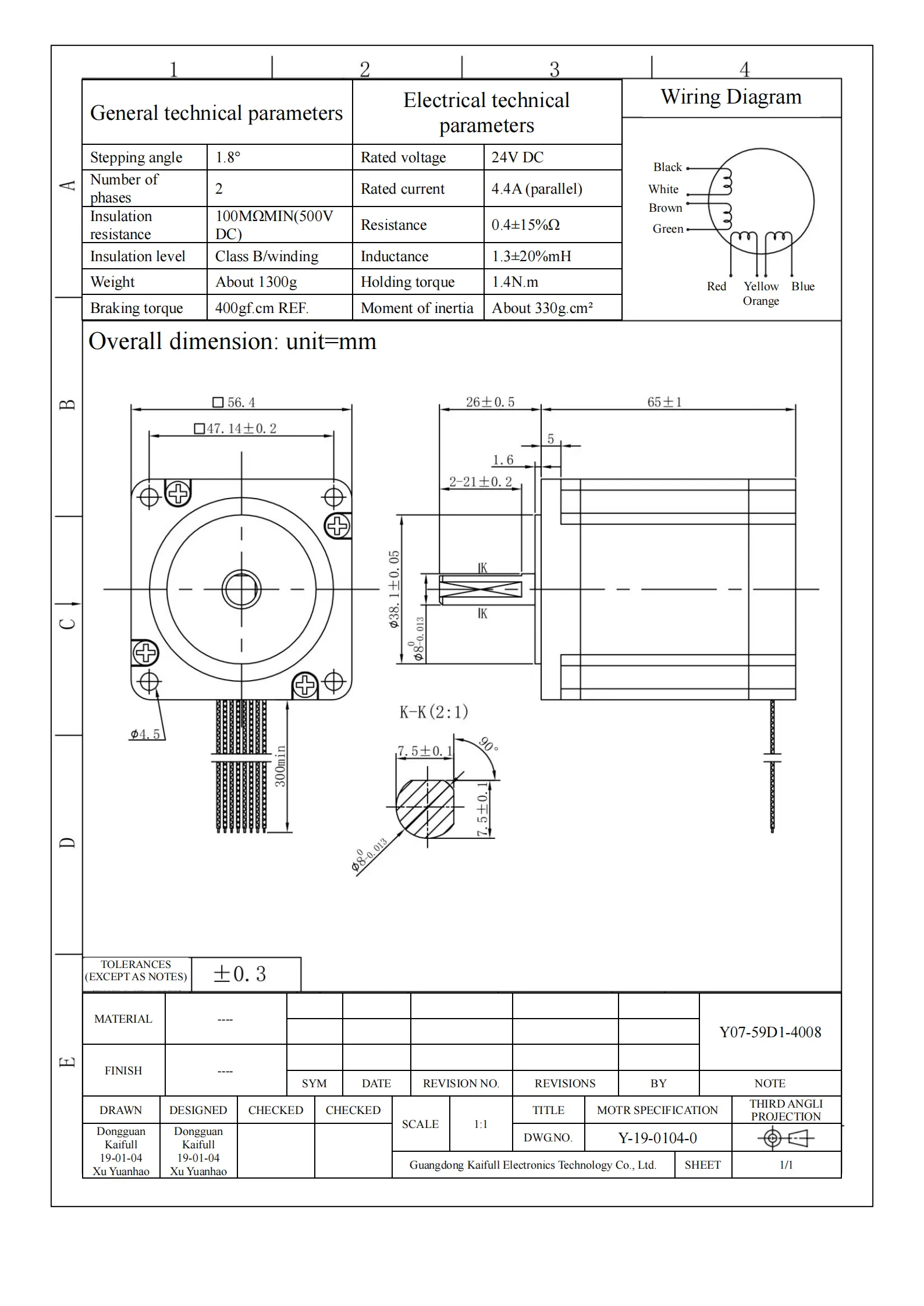

The Y07-59D1-4008 stepper motor is designed for robust performance in demanding applications, providing exceptional precision and reliability. Featuring a stepping angle of 1.8° and a rated voltage of 24V DC, this motor is well-suited for automation and motion control systems.

With a dual-phase design and a rated current of 4.4A (parallel), the Y07-59D1-4008 ensures efficient operation while delivering a holding torque of 1.4N.m. Its braking torque of 400gf.cm enhances control during dynamic movements, making it ideal for various industrial applications.

This motor boasts a strong insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.4±15Ω, ensuring durability and reliability over time. The Class B insulation level and an inductance of 1.3±20% mH contribute to the motor's performance stability.

Weighing approximately 1300g with a moment of inertia of about 330g.cm², the Y07-59D1-4008 offers a powerful solution for your precise motion needs, whether in robotics, CNC machines, or other automation systems.
