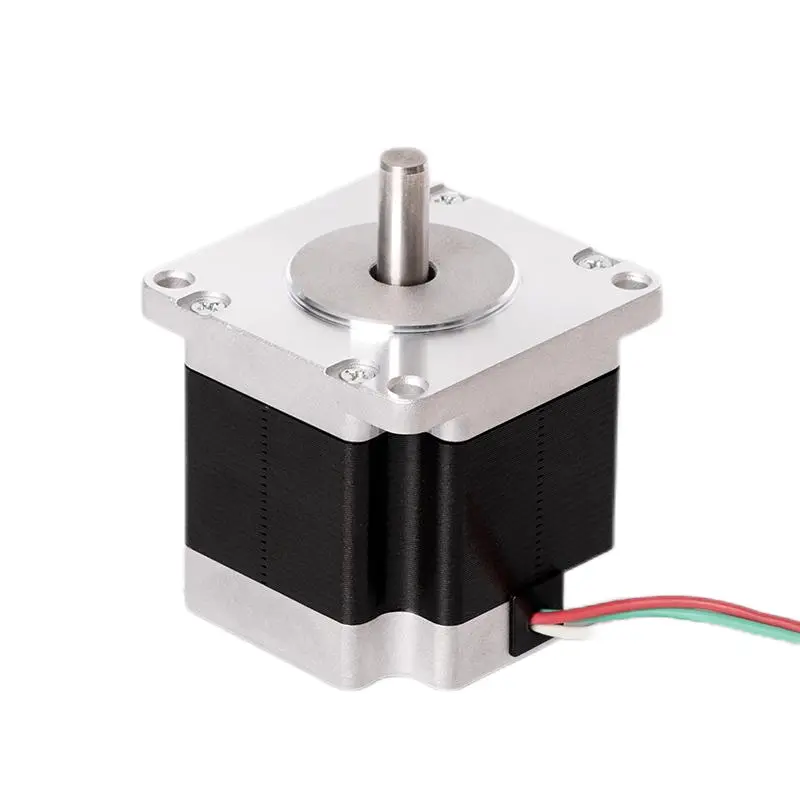

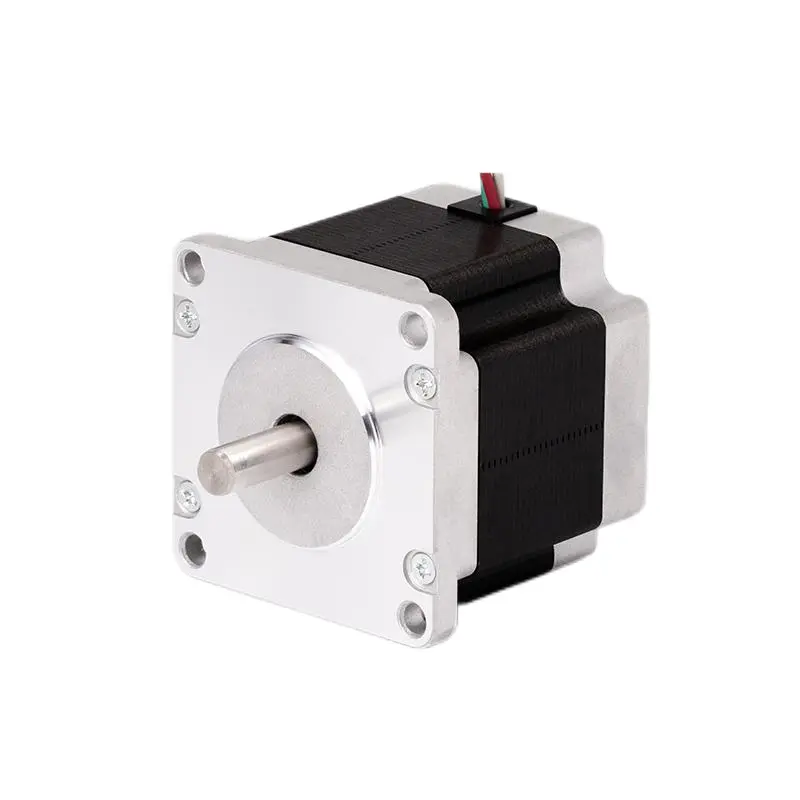

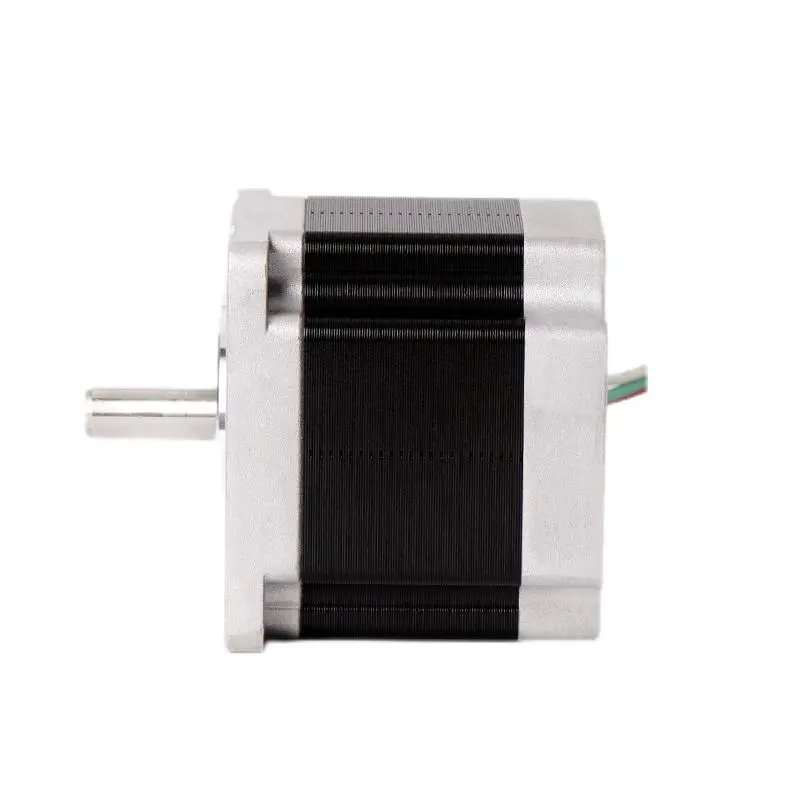

KST-60E34-0001 1.2° Three-Phase Stepper Motor with 0.9N·m Holding Torque, 5.8A Rated Current, 24V DC Drive Voltage

The KST-60E34-0001 is a precision-engineered three-phase stepper motor designed for applications requiring moderate torque and high accuracy. Featuring a step angle of 1.2° and a holding torque of 0.9N·m, this motor is ideal for systems that demand reliable motion control, such as robotics, automation, and CNC machines.

With a rated current of 5.8A and powered by a 24V DC drive voltage, the KST-60E34-0001 ensures smooth and efficient operation in various high-precision applications. The motor has a phase resistance of 0.32Ω±15% and an inductance of 0.8mH±20%, providing low-loss performance and enhancing overall efficiency.

Built with Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, this motor is designed for long-term durability and reliable performance in demanding environments. The braking torque is 300gf·cm, and the moment of inertia is approximately 260g·cm², allowing for quick and accurate stopping power.

Weighing about 800g, the KST-60E34-0001 is a lightweight, high-performance motor, ideal for compact applications where moderate torque and precision control are required.
