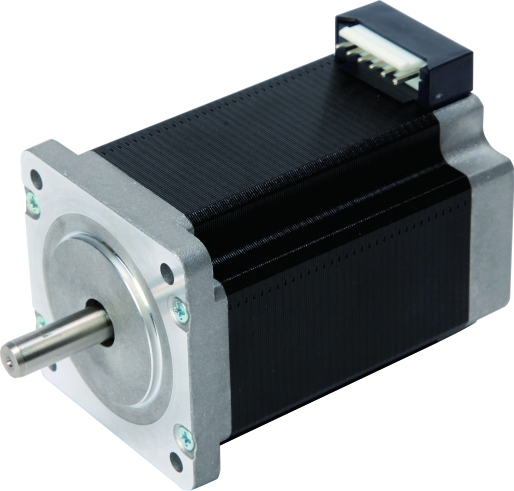

KST-60D25-0002 1.8° Two-Phase Stepper Motor with 1.0N·m Holding Torque, 4.2A Rated Current, 24V DC Drive Voltage

The KST-60D25-0002 is a compact and efficient two-phase stepper motor, designed for applications where moderate torque and precise positioning are required. With a step angle of 1.8° and a holding torque of 1.0N·m, this motor offers reliable performance for industrial automation, robotics, and CNC machinery.

Operating at a rated current of 4.2A and powered by a 24V DC drive voltage, the motor delivers smooth, efficient operation and minimizes energy consumption. It features a phase resistance of 0.39Ω±15% and an inductance of 1.1mH±20%, ensuring stable performance under various operational conditions.

Built with Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, the KST-60D25-0002 is designed to operate in demanding environments with excellent durability. The braking torque is 450gf·cm, and the moment of inertia is approximately 280g·cm², ensuring quick response and precise movement control.

Weighing only about 480g, the KST-60D25-0002 is an ideal solution for applications where space is limited but high precision and moderate torque are still essential.
