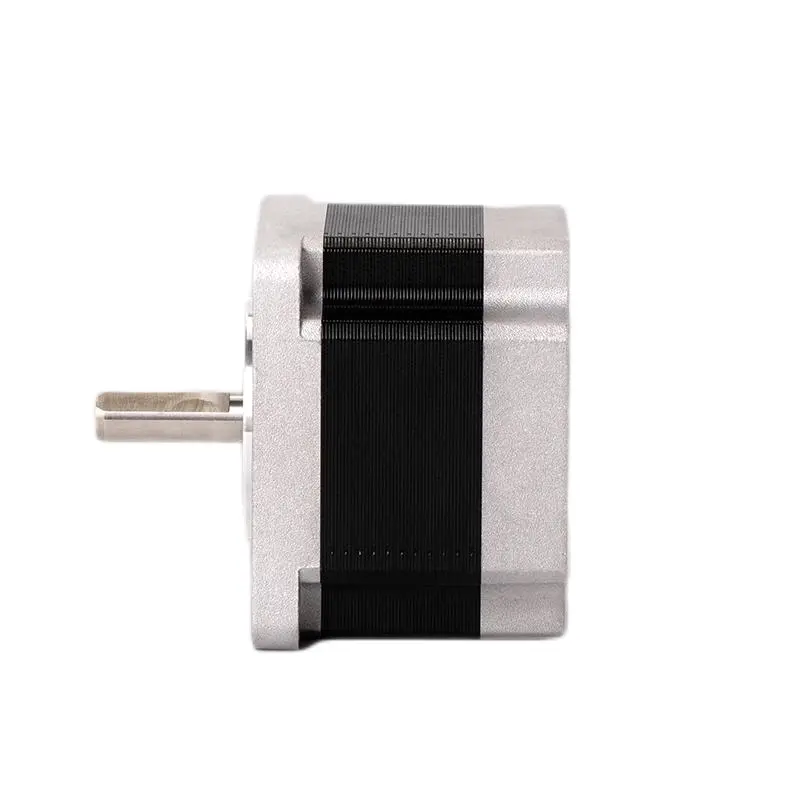

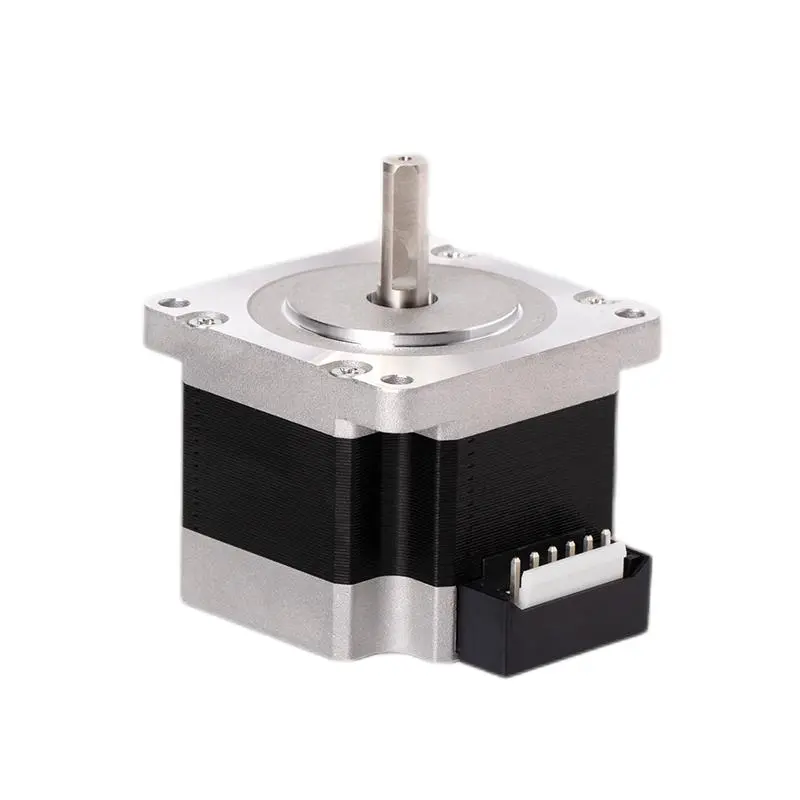

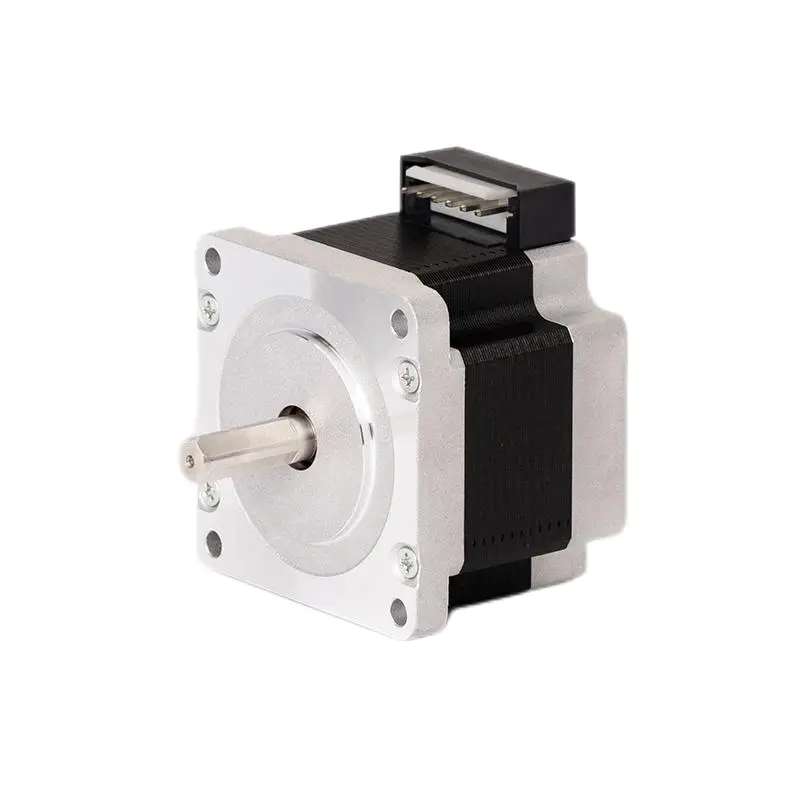

KST-60D25-0001 1.8° Two-Phase Stepper Motor with 1.0N·m Holding Torque, 4.2A Rated Current, 24V DC Drive Voltage

The KST-60D25-0001 is a two-phase stepper motor designed for precise control in various industrial and automation applications. With a step angle of 1.8° and a holding torque of 1.0N·m, this motor provides reliable performance for CNC machines, robotics, and other precision machinery.

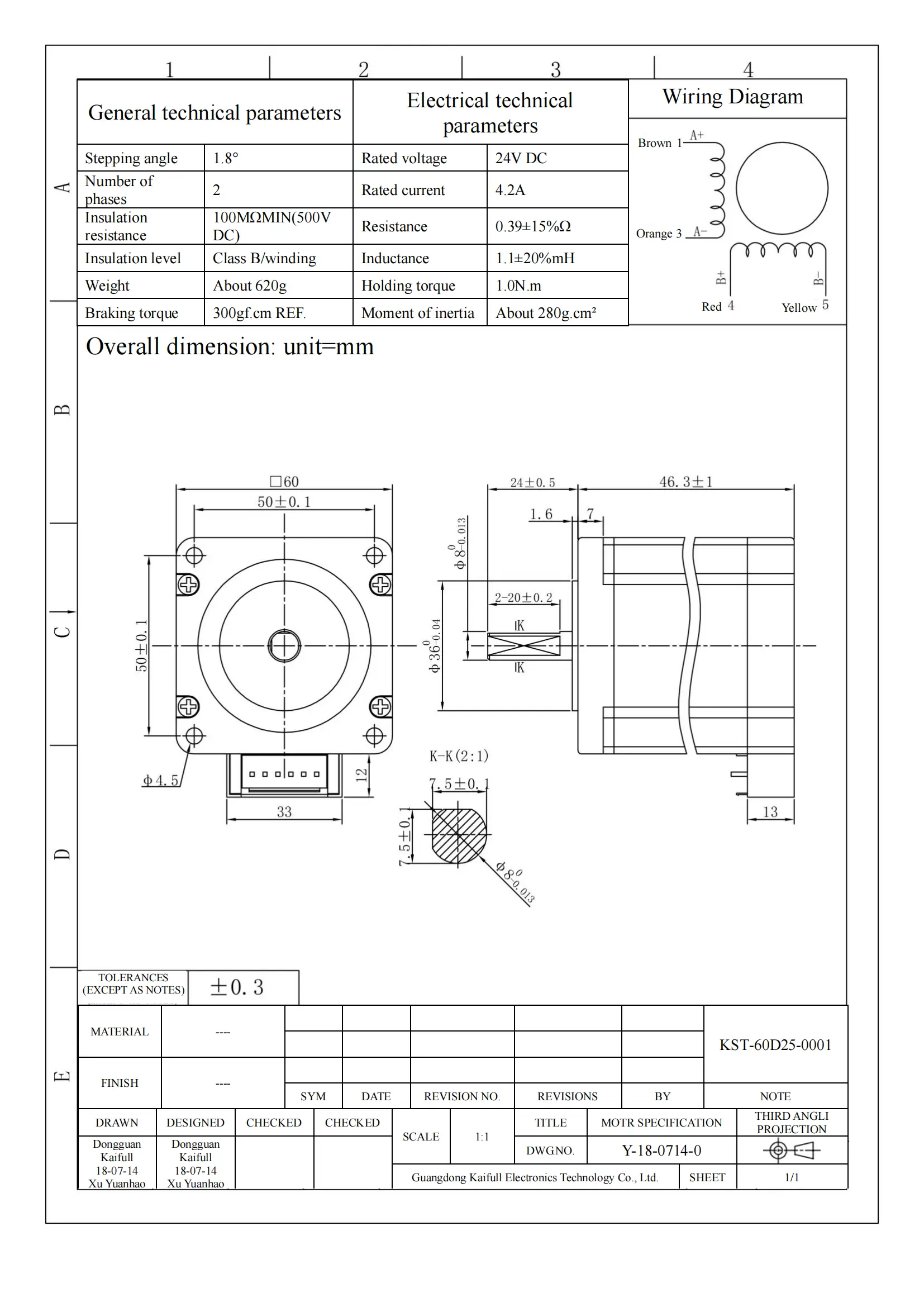

Powered by 24V DC and operating at a rated current of 4.2A, the motor offers smooth and efficient operation. It has a phase resistance of 0.39Ω±15% and an inductance of 1.1mH±20%, ensuring stable and energy-efficient performance.

The KST-60D25-0001 features Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, ensuring durability and long-lasting performance in demanding environments. The braking torque is 300gf·cm, and the moment of inertia is approximately 280g·cm², providing quick, precise stops.

Weighing just about 620g, this motor is a lightweight and high-performance solution for applications requiring moderate torque and high precision in compact spaces.
