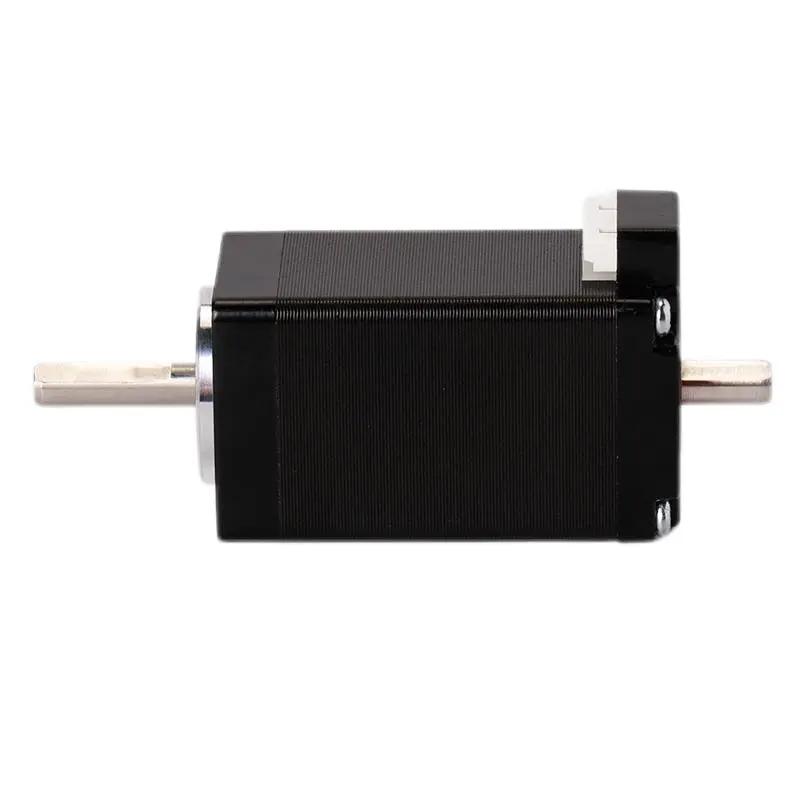

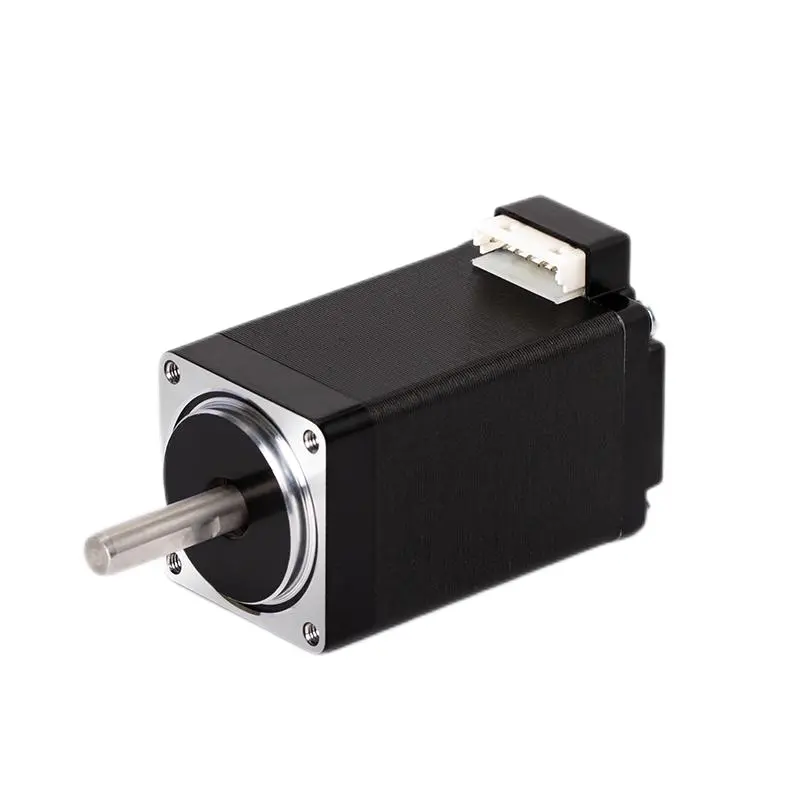

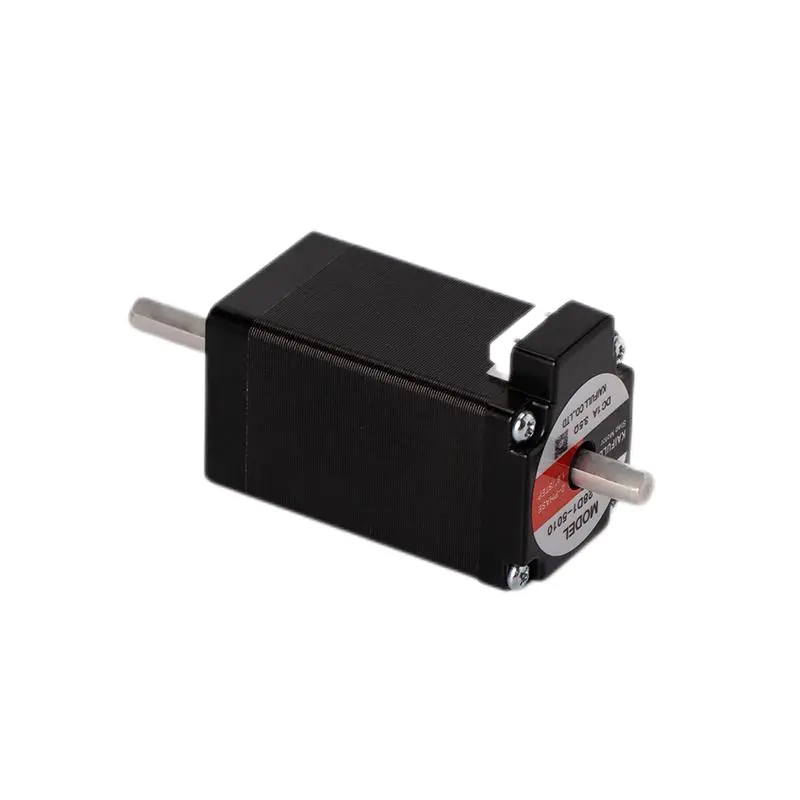

KST-28D37-D-0002 1.8° Stepper Motor, 1A Rated Current, 2.3mH Inductance, 200g, 0.1N Minimum Thrust, 28mm Frame Size
KST-28D37-D-0002 1.8° Stepper Motor, 1A Rated Current, 2.3mH Inductance, 200g, 0.1N Minimum Thrust, 28mm Frame Size
KST-28D37-D-0002 1.8° Stepper Motor, 1A Rated Current, 2.3mH Inductance, 200g, 0.1N Minimum Thrust, 28mm Frame Size

KST-28D37-D-0002 1.8° Stepper Motor, 1A Rated Current, 2.3mH Inductance, 200g, 0.1N Minimum Thrust, 28mm Frame Size

The KST-28D37-D-0002 is a 1.8° stepper motor with 1A rated current and 2.3mH inductance, offering smooth motion control and high precision. With a 200g weight and 0.1N minimum thrust, it is ideal for compact automation, robotics, and other precision-driven systems. Features include 5mm shaft diameter and 51mm motor length.

    Contact us Download
    Detail description
    Technical parameter

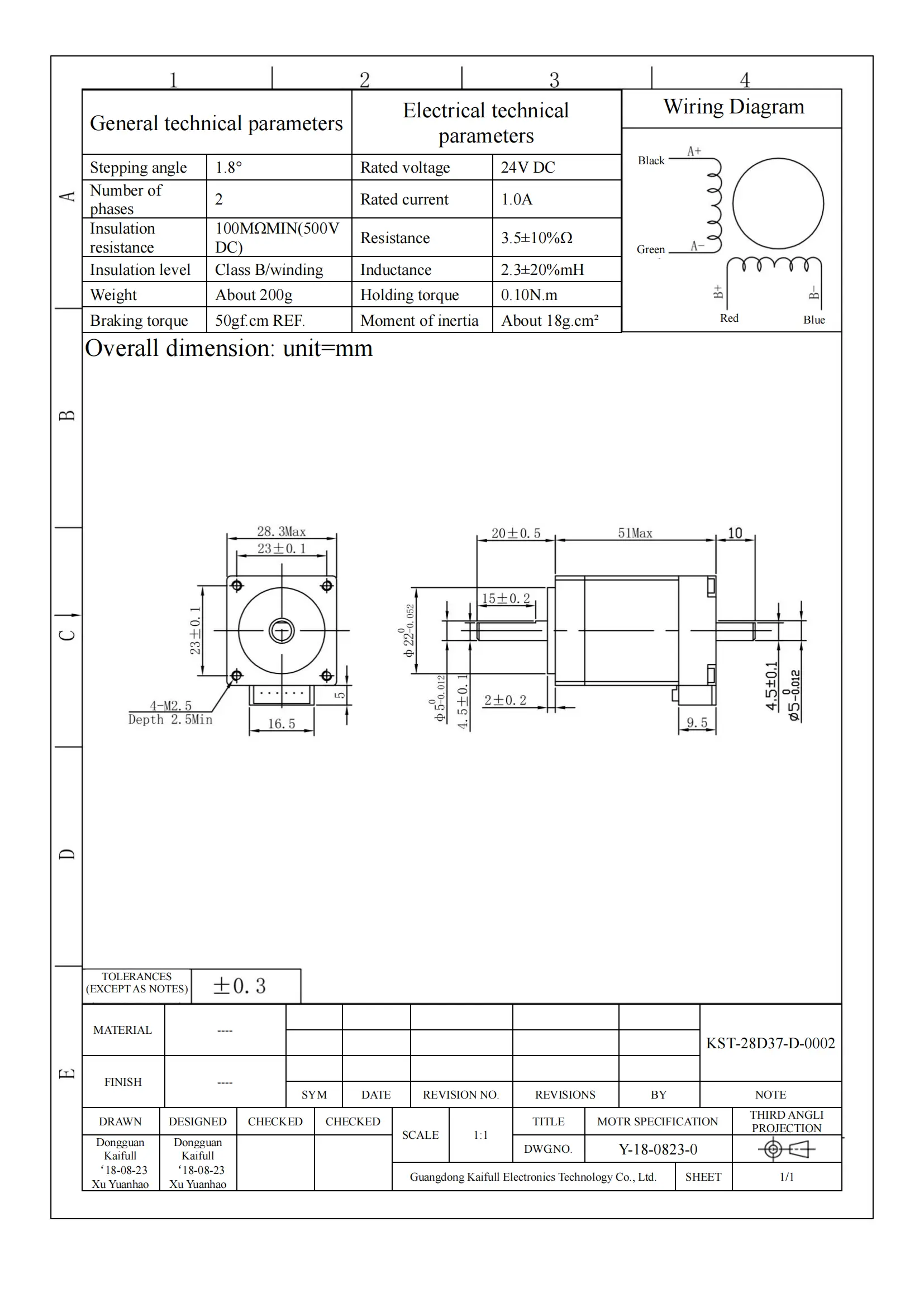

    Product size
    drawing

    The KST-28D37-D-0002 is a high-performance stepper motor designed for precise control in compact systems. Featuring a step angle of 1.8°, this motor is ideal for applications requiring fine positioning accuracy.

    This motor operates with a rated current of 1A, providing efficient power consumption for demanding tasks. With a resistance of 3.5Ω and inductance of 2.3mH, it ensures stable and smooth motion control. The minimum thrust is 0.1N, making it suitable for low-load applications where high precision is necessary. The rotor inertia is 18g·cm², contributing to precise and quick responses.

    Weighing only 200g, this motor is lightweight and space-efficient, making it an excellent choice for automation, robotics, and small machinery where size and weight constraints are critical. The shaft diameter of 5mm and axis length of 20mm provide versatility in various mechanical setups, while the motor length of 51mm allows easy integration into compact designs.

    ●Motor configuration and performance parameters

    Frame size /mm

    28mm

    Model

    KST-28D37-D-0002

    Step Angle

    1.8

    Rated current /A

    1

    Resistance /Ω

    3.5

    Inductance /mH

    2.3

    Maintain torque /N.m
    Minimum thrust N

    0.1

    Rotor inertia /g.cm²

    18

    Number of leads

    4

    Shaft diameter

    5

    Axis length

    20

    Motor length /mm

    51

    Mass /g

    200

    KST-28D37-D-0002_00
