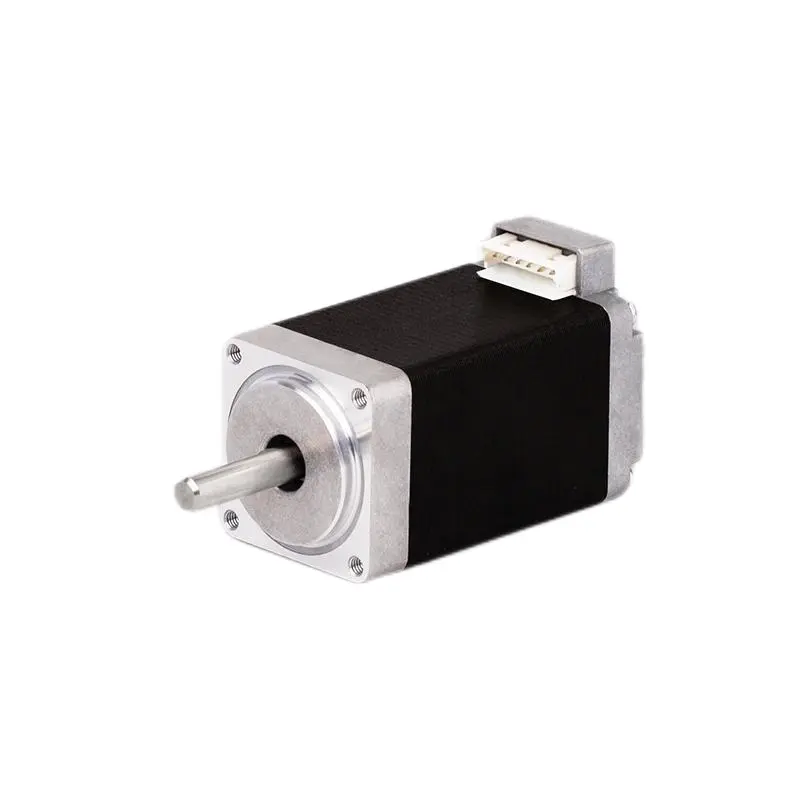

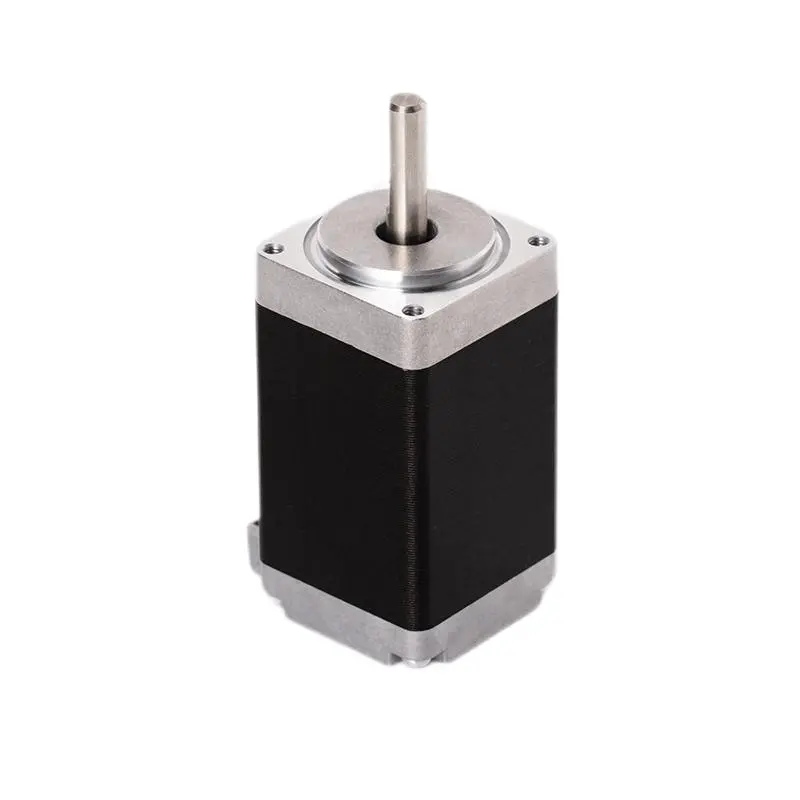

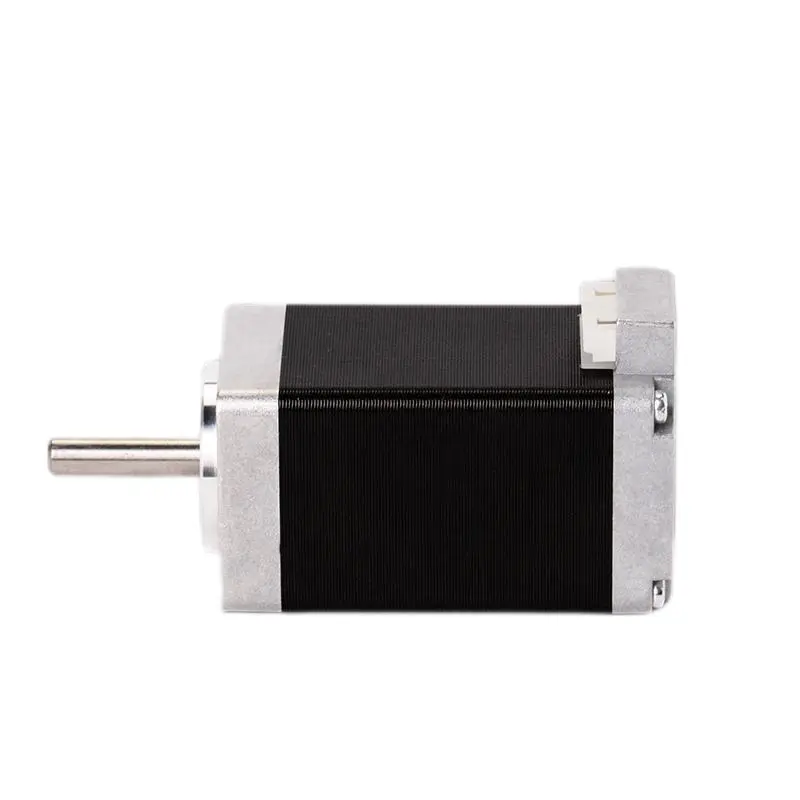

KST-28D37-0001 1.8° Stepper Motor, 1A Rated Current, 2.3mH Inductance, 200g, 0.10N.m Holding Torque, 24V DC

The KST-28D37-0001 is a versatile stepper motor designed for precision motion control in compact systems. With a step angle of 1.8°, this motor provides excellent positional accuracy, making it suitable for a wide range of automation and robotics applications.

Operating at a rated voltage of 24V DC and a rated current of 1.0A, this motor delivers efficient performance while maintaining low power consumption. Its resistance of 3.5Ω and inductance of 2.3mH ensure smooth and stable operation, while the insulation resistance of 100MΩ (at 500V DC) guarantees long-lasting durability.

The KST-28D37-0001 motor has a holding torque of 0.10N·m and a braking torque of 50gf·cm, making it ideal for lightweight applications where fine control is necessary. The moment of inertia is 18g·cm², which ensures a quick response time with minimal vibration.

Weighing only 200g, this motor is highly suitable for applications that require a lightweight and compact design, such as small machinery, automation systems, and robotic arms. Its small form factor and reliable performance make it a top choice for engineers and designers seeking space-efficient and accurate stepper motors.
