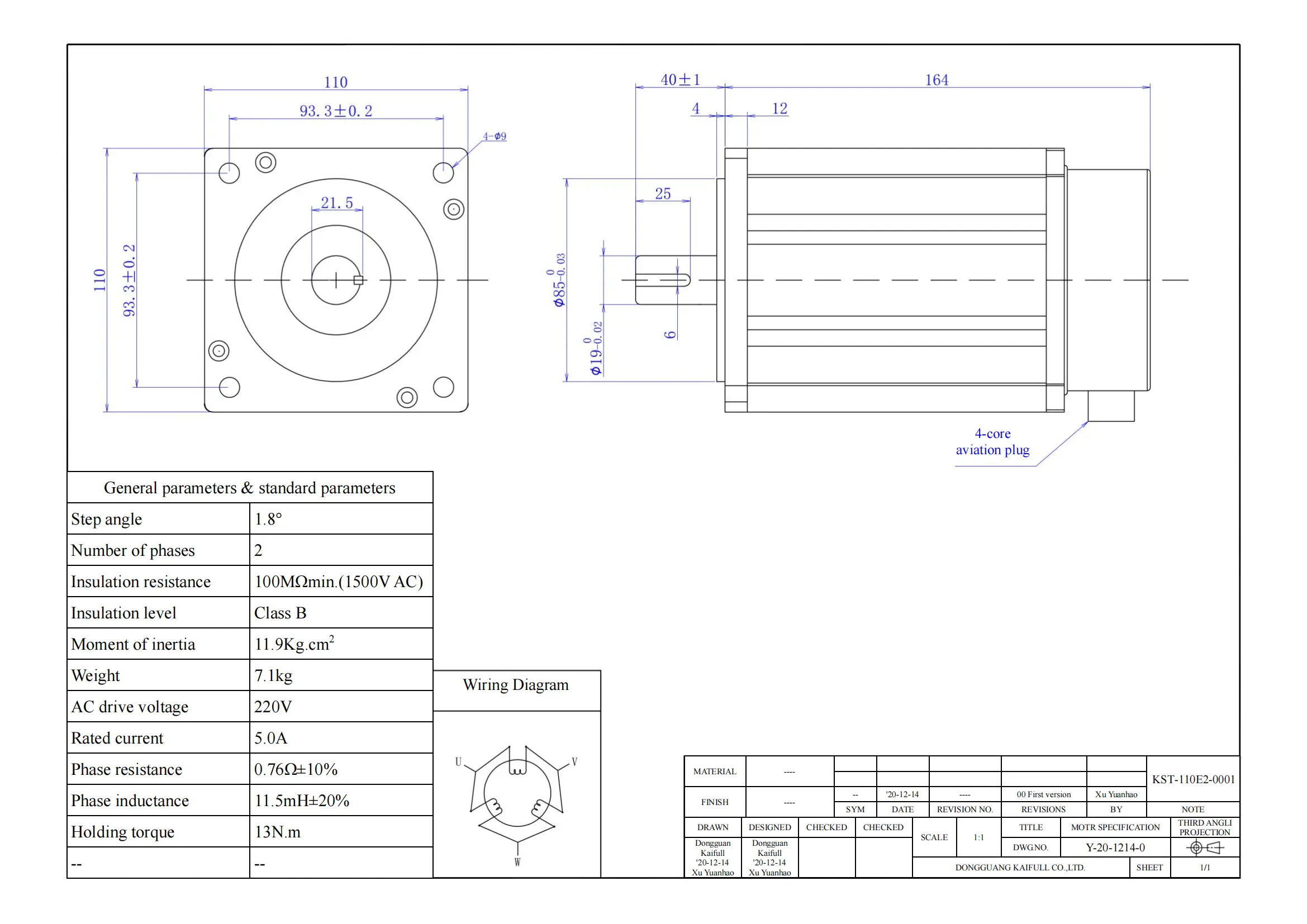

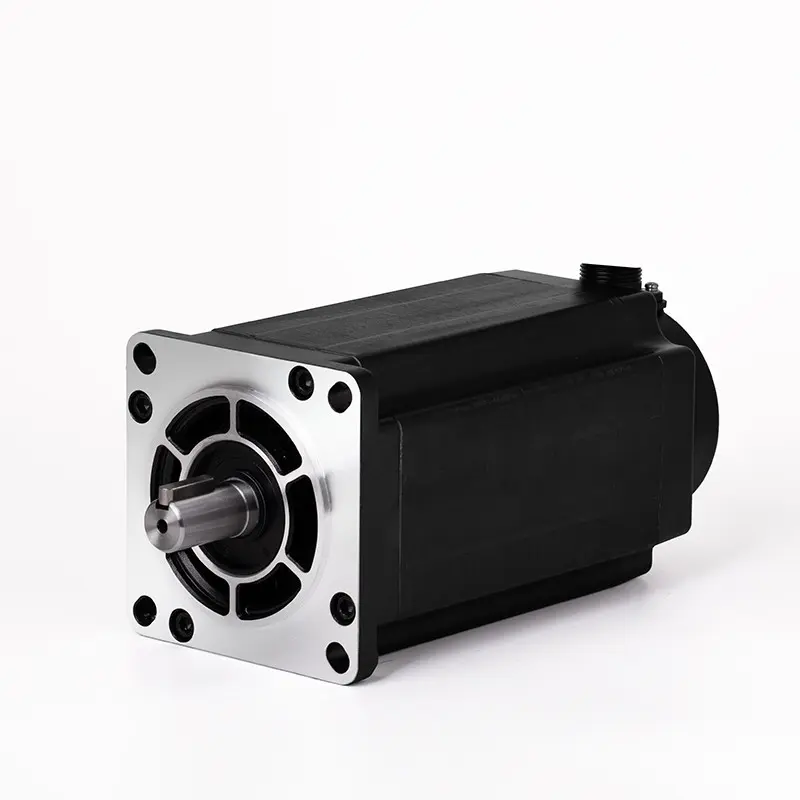

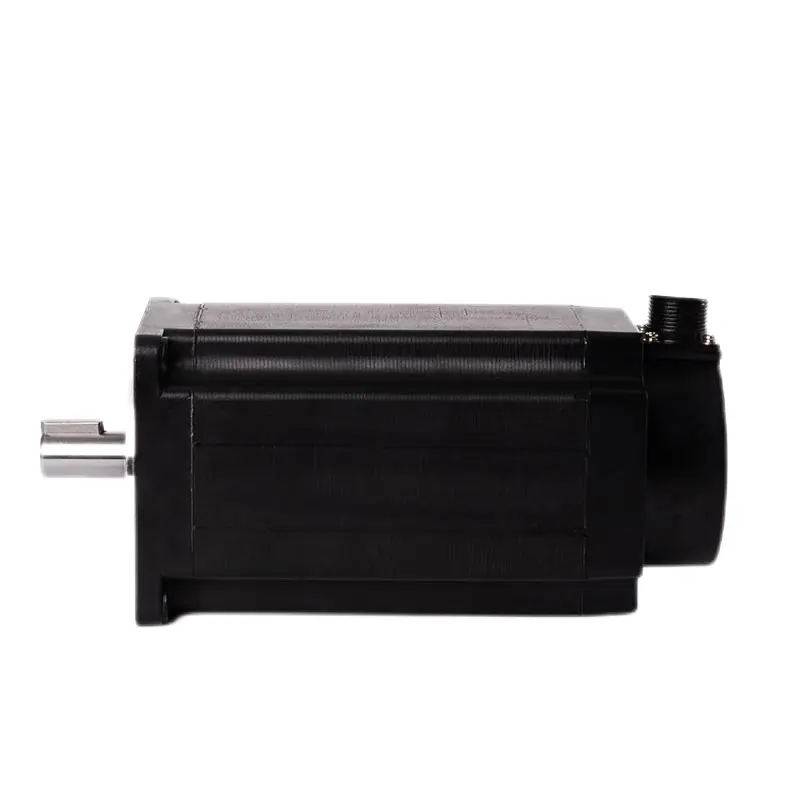

KST-110E2-0001 1.8° Two-Phase Stepper Motor with 13N·m Holding Torque, 5.0A Rated Current, 220V AC Drive Voltage

The KST-110E2-0001 is a versatile two-phase stepper motor designed for precision motion control in various industrial applications. With a step angle of 1.8° and a holding torque of 13N·m, this motor provides reliable and accurate performance for systems that require high precision and torque control.

The rated current of 5.0A and the 220V AC drive voltage make it an efficient choice for demanding applications, while its phase resistance of 0.76Ω and phase inductance of 11.5mH contribute to smooth operation and reduced power loss during operation.

Built with Class B insulation and offering an insulation resistance of 100MΩ minimum at 1500V AC, the KST-110E2-0001 ensures long-term durability and safe operation. The moment of inertia is 11.9Kg·cm², enabling smooth acceleration and deceleration, making it ideal for precise motion control in machinery and automation systems.

Weighing 7.1kg, the KST-110E2-0001 is compact yet powerful, offering an excellent solution for applications like CNC machines, industrial robots, and automation equipment that require high torque and accuracy.
