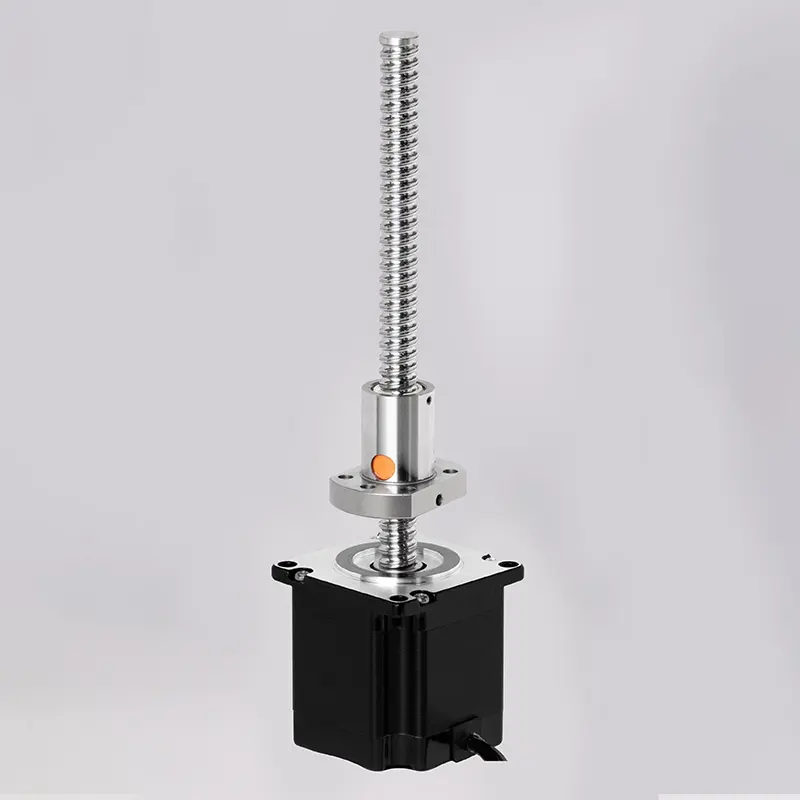

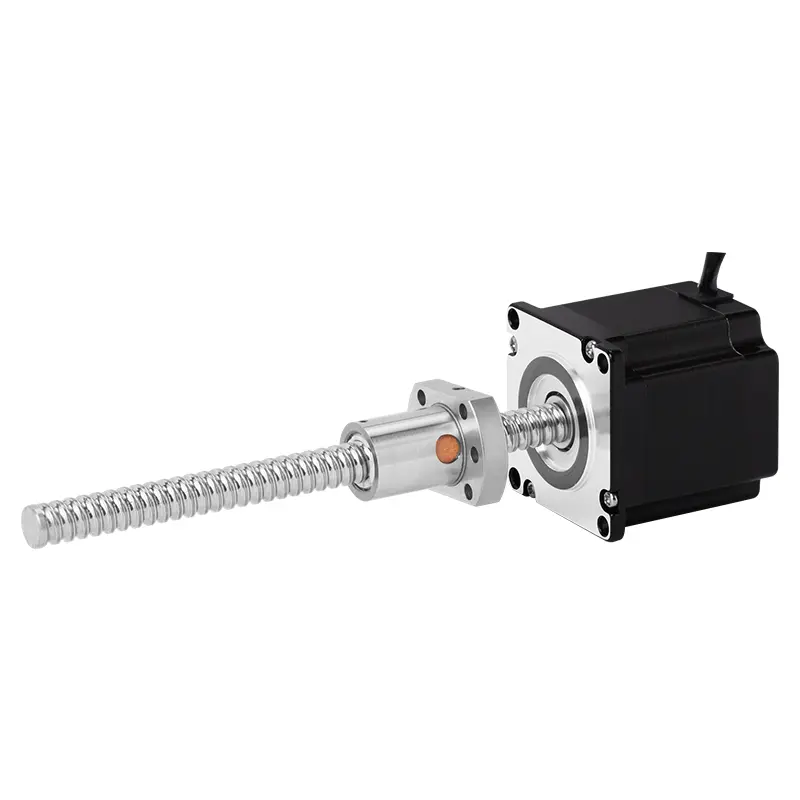

High-Performance Y07-59D1-4404-04GZ-180 Screw Stepper Motor for Precision Engineering

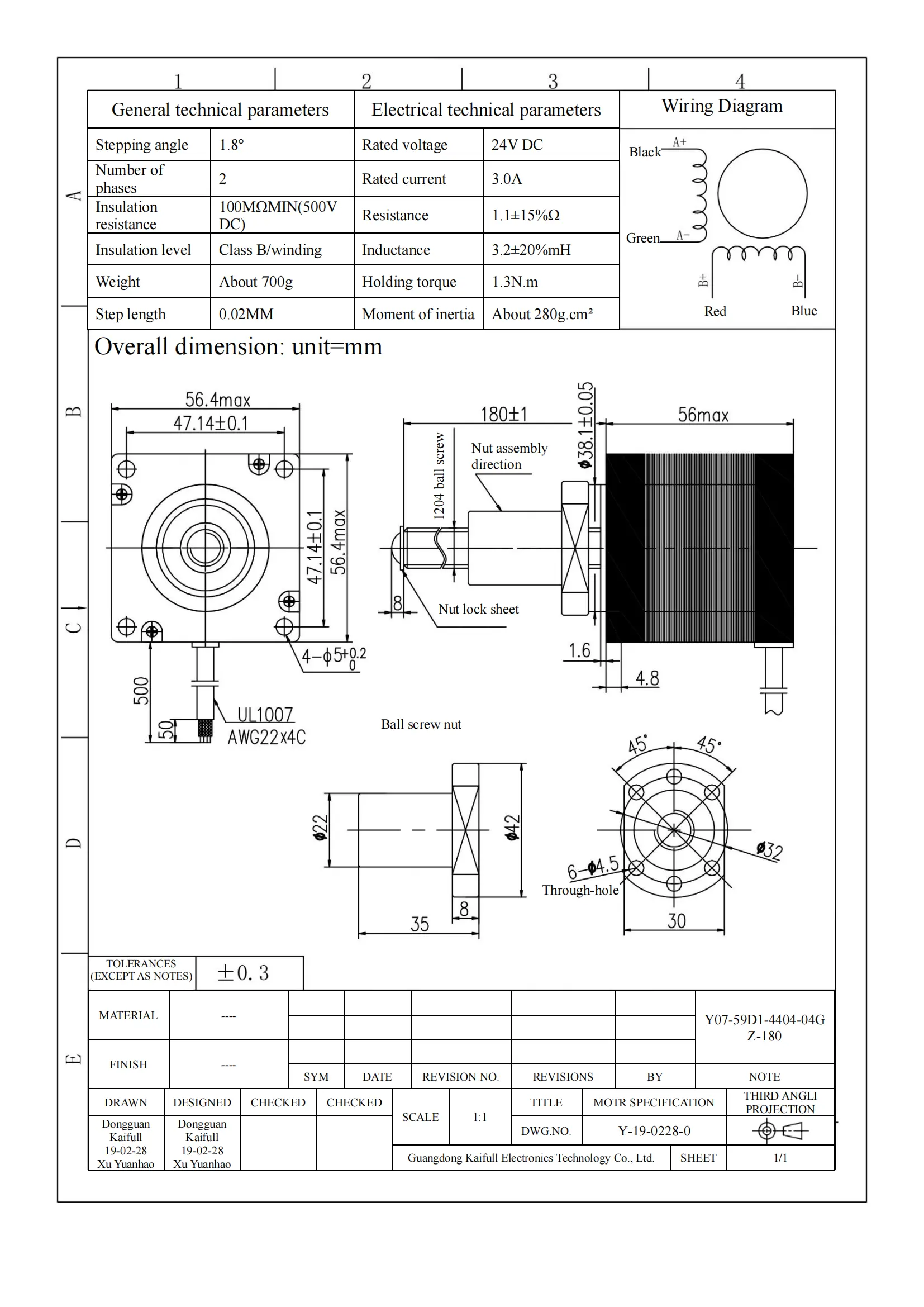

The Y07-59D1-4404-04GZ-180 screw stepper motor is engineered for precision and reliability, making it a valuable asset in a range of applications from robotics to automated machinery. With a stepping angle of 1.8°, this motor ensures accurate movement, allowing for meticulous control essential in tasks that require high precision.

Operating at a rated voltage of 24V DC and featuring a two-phase design, the Y07-59D1-4404-04GZ-180 delivers consistent power with a rated current of 3.0A. This capability ensures robust performance, even under significant load conditions. Its insulation resistance is rated at a minimum of 100 MΩ at 500V DC, providing enhanced protection against electrical interference and ensuring longevity in demanding environments.

This motor has a resistance of 1.1 ±15% Ω and an inductance of 3.2 ±20% mH, facilitating reliable operation across various settings. Designed with Class B insulation, it can withstand higher temperatures, making it suitable for continuous use in industrial applications. Weighing around 700g, it offers a balanced combination of strength and manageability.

With a holding torque of 1.3 N·m, the Y07-59D1-4404-04GZ-180 excels in maintaining its position, which is crucial for applications requiring precise static holding. Its step length of 0.02 mm allows for fine-tuned adjustments, while the moment of inertia is approximately 280 g·cm², contributing to its quick response times and smooth operation during dynamic tasks.

In summary, the Y07-59D1-4404-04GZ-180 screw stepper motor is an excellent choice for engineers and developers seeking high torque and precision control, ensuring efficiency and effectiveness in sophisticated automation tasks.
