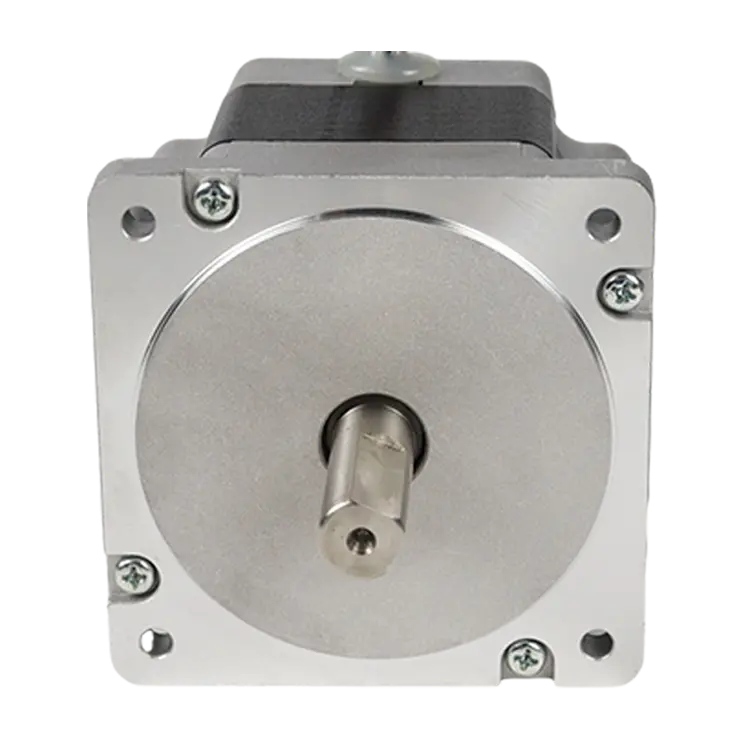

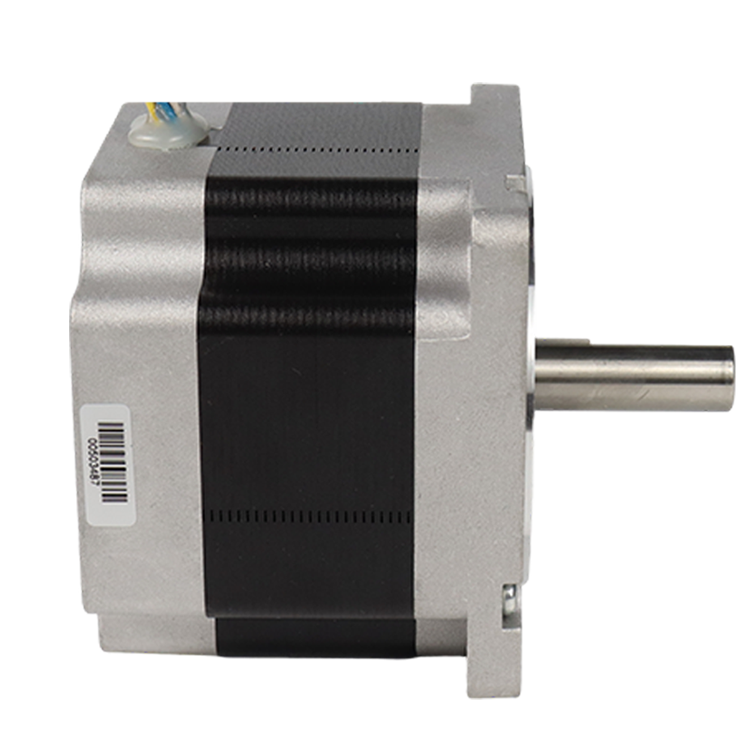

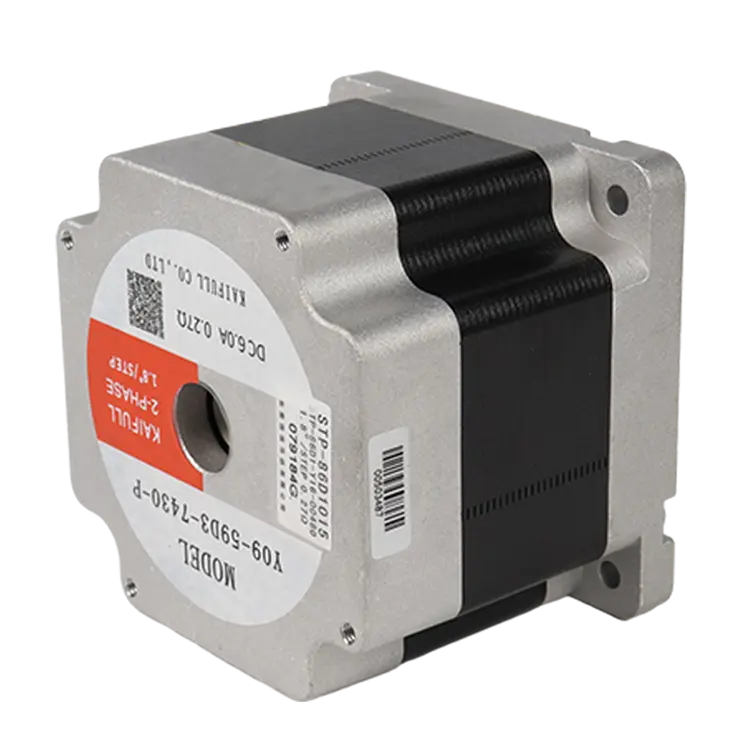

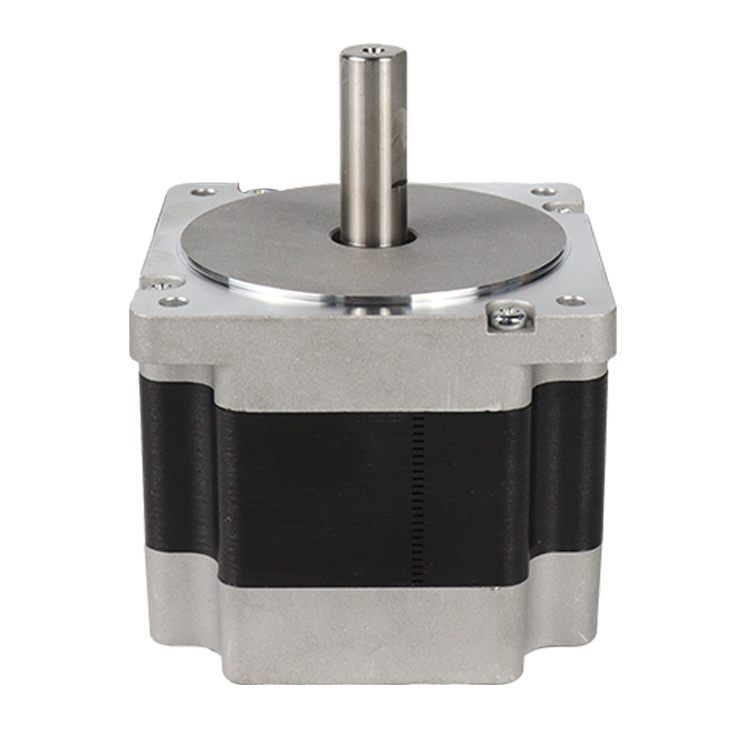

High-Performance 36V DC Stepper Motor Y09-59D3-7430-P with 3.3N.m Torque

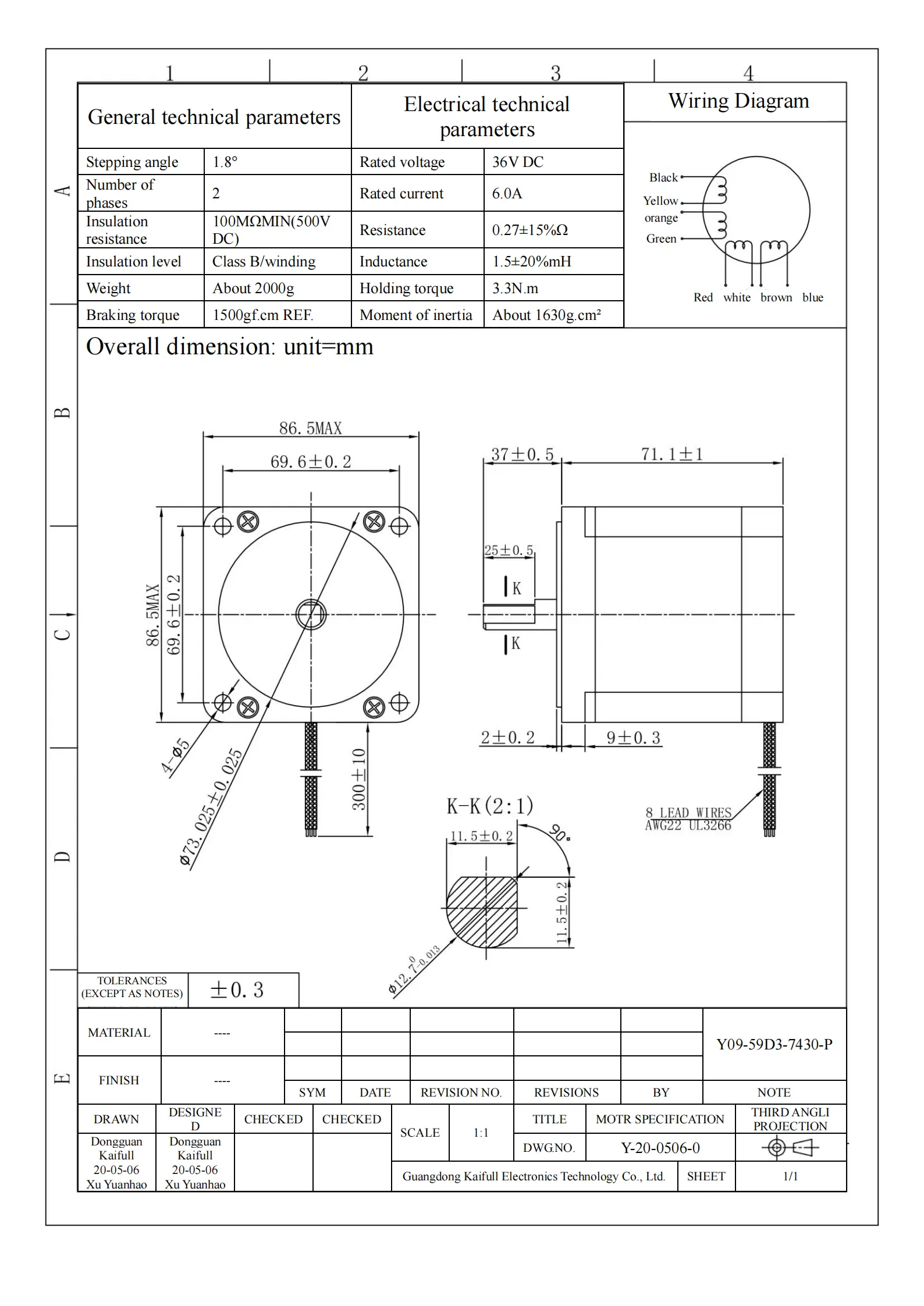

The Y09-59D3-7430-P stepper motor offers robust torque and stability for demanding precision applications. This motor features a 1.8° step angle, a rated voltage of 36V DC, and a substantial holding torque of 3.3N.m, making it ideal for heavy-load automation, CNC, and robotic applications that require precision and reliability. With a high current rating of 6.0A, it provides powerful drive capacity to maintain consistent performance under challenging conditions.

Engineered with Class B insulation and a resistance of 100MΩ (at 500V DC), the Y09-59D3-7430-P is designed to handle continuous operation with durability and safety. Its low winding resistance of 0.27Ω±15% and inductance of 1.5±20%mH allow efficient power consumption and smooth operation, even in high-speed environments. Weighing approximately 2000g, this motor features a braking torque of 1500gf.cm, ensuring secure, stable stops during quick direction changes.

The motor's substantial moment of inertia of 1630g.cm² provides stability and control, making it an optimal choice for high-precision and high-torque applications. The Y09-59D3-7430-P is the ideal stepper motor for professionals needing a powerful, reliable solution in dynamic control systems.
