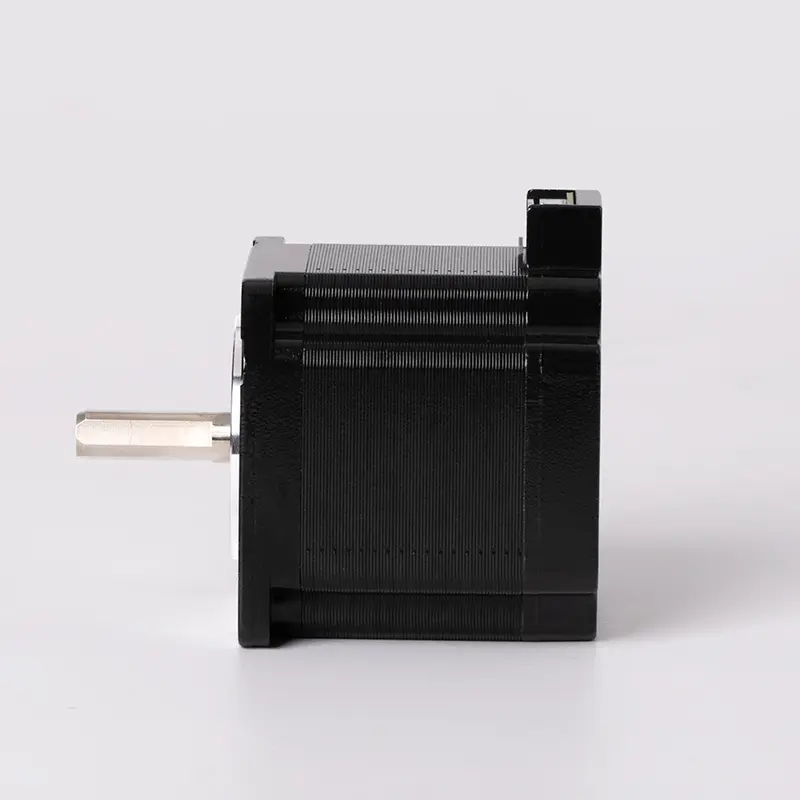

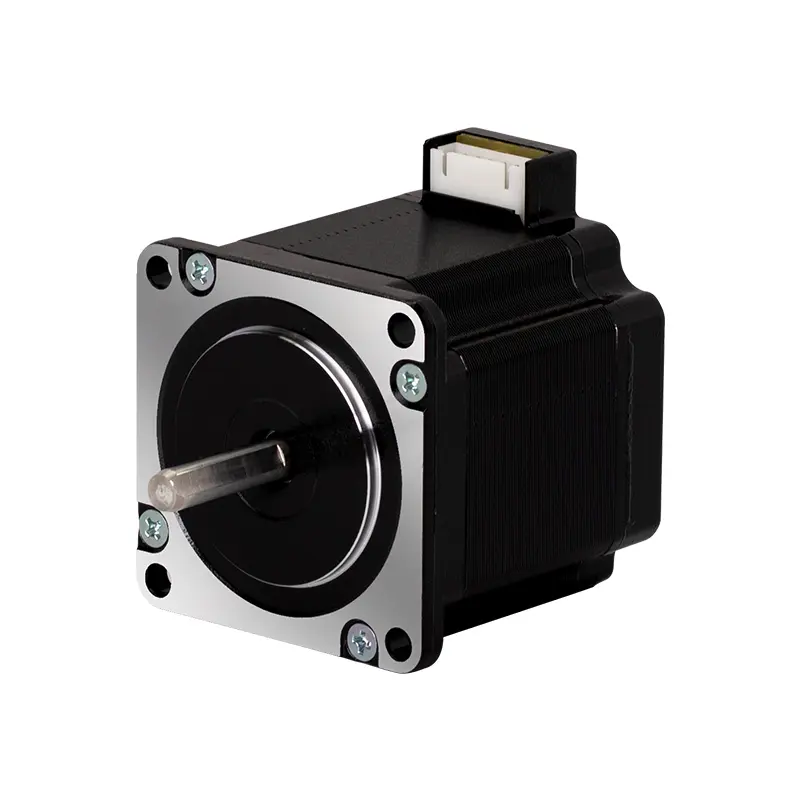

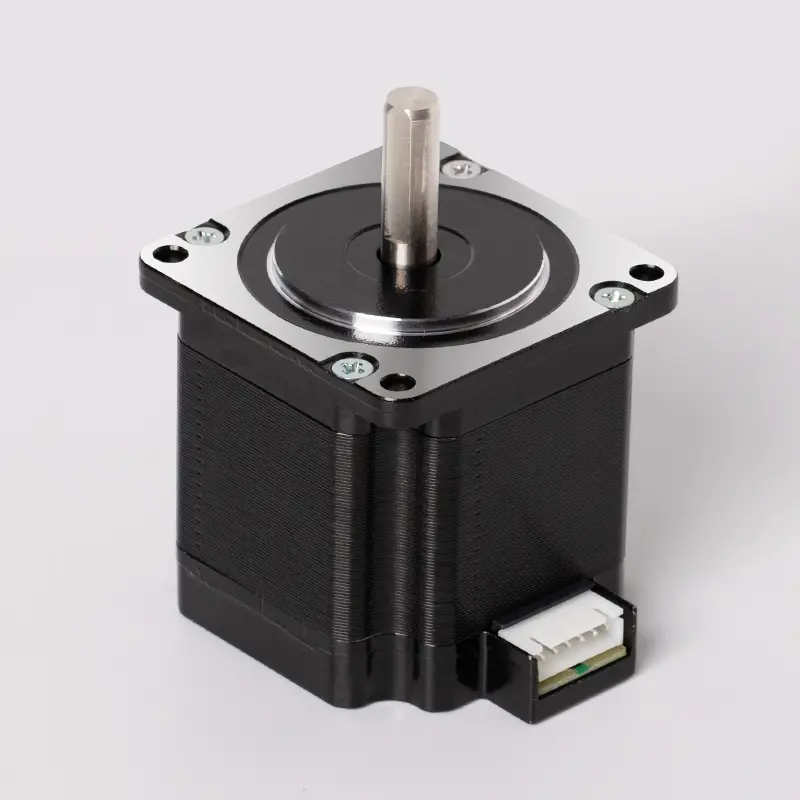

High-Performance 24V DC Stepper Motor Y07-59D1-3039

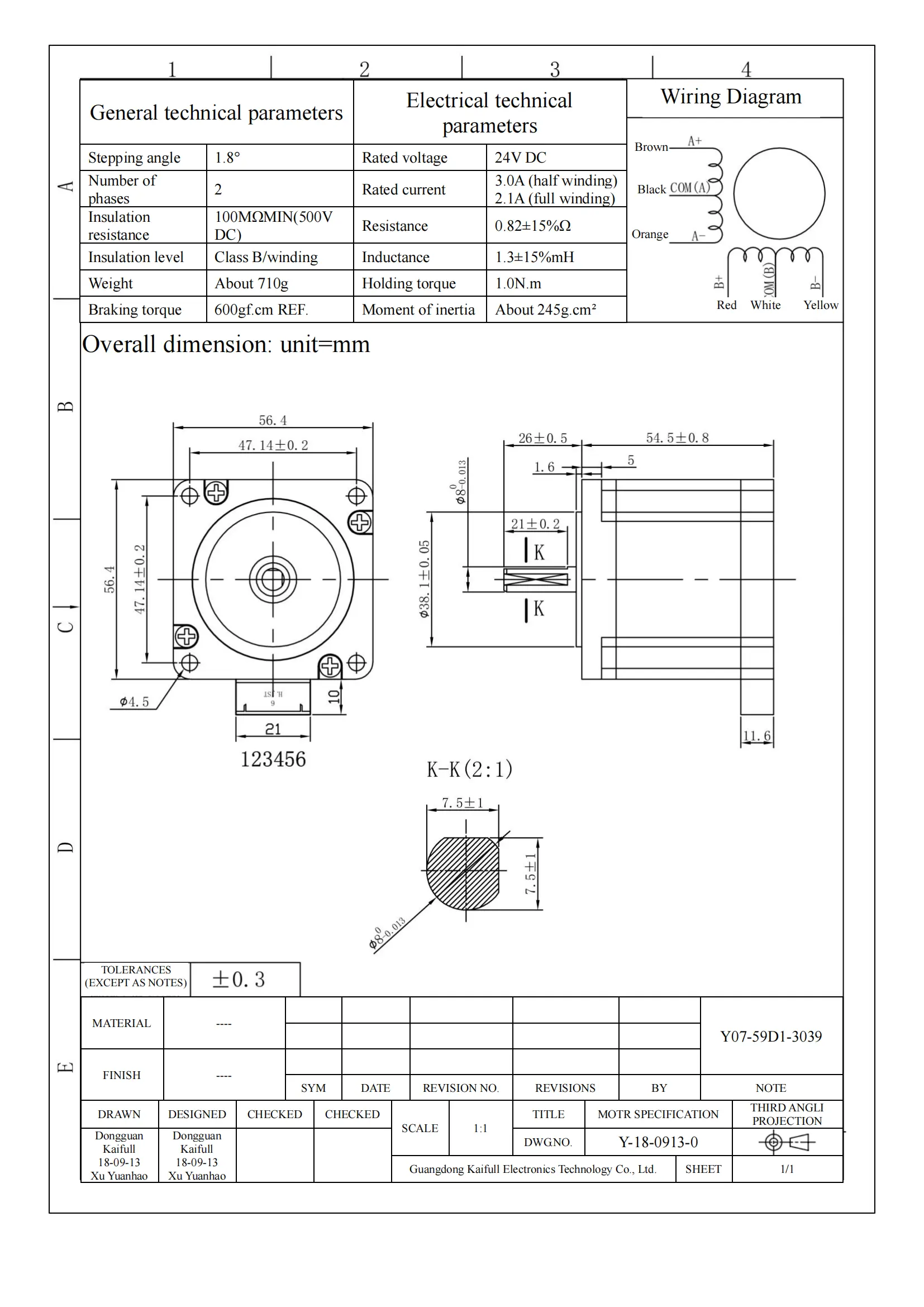

The Y07-59D1-3039 stepper motor is engineered for precision in motion control, featuring a 1.8° stepping angle and a rated voltage of 24V DC. This motor operates with two phases and offers rated currents of 3.0A (half winding) and 2.1A (full winding), making it suitable for various applications that require reliable performance. With an insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.82±15Ω, this motor ensures excellent durability and longevity.

The Class B insulation level and an inductance of 1.3±15% mH enhance operational efficiency, while the holding torque of 1.0N.m and braking torque of 600gf.cm ensure stability during use. Weighing approximately 710g, this stepper motor is designed to deliver high torque in compact applications, with a moment of inertia of about 245g.cm².

Ideal for automation, robotics, and industrial applications, the Y07-59D1-3039 stepper motor combines quality with performance, making it an excellent choice for your motion control needs.
