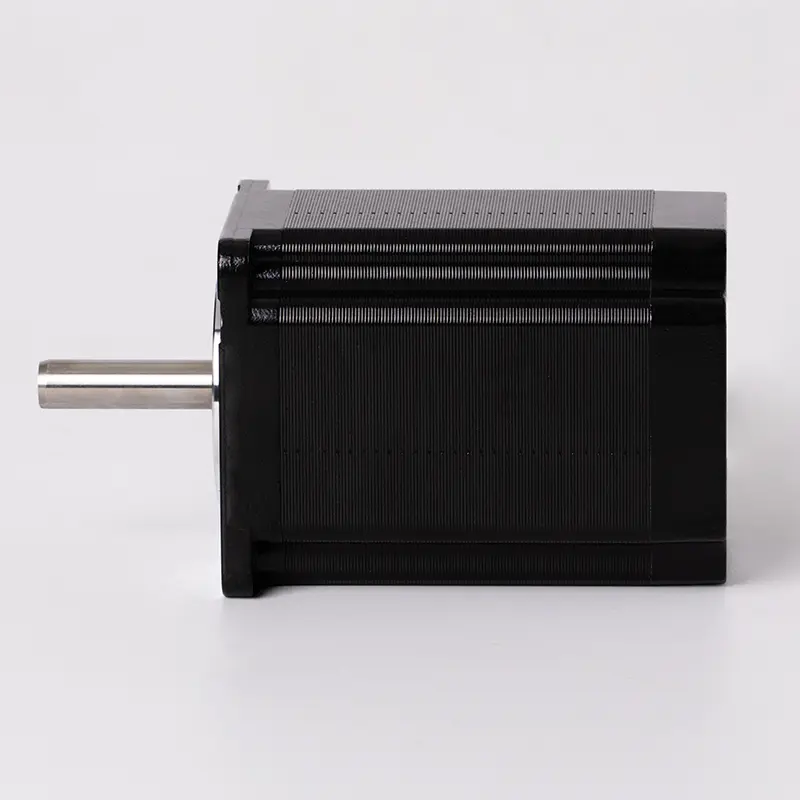

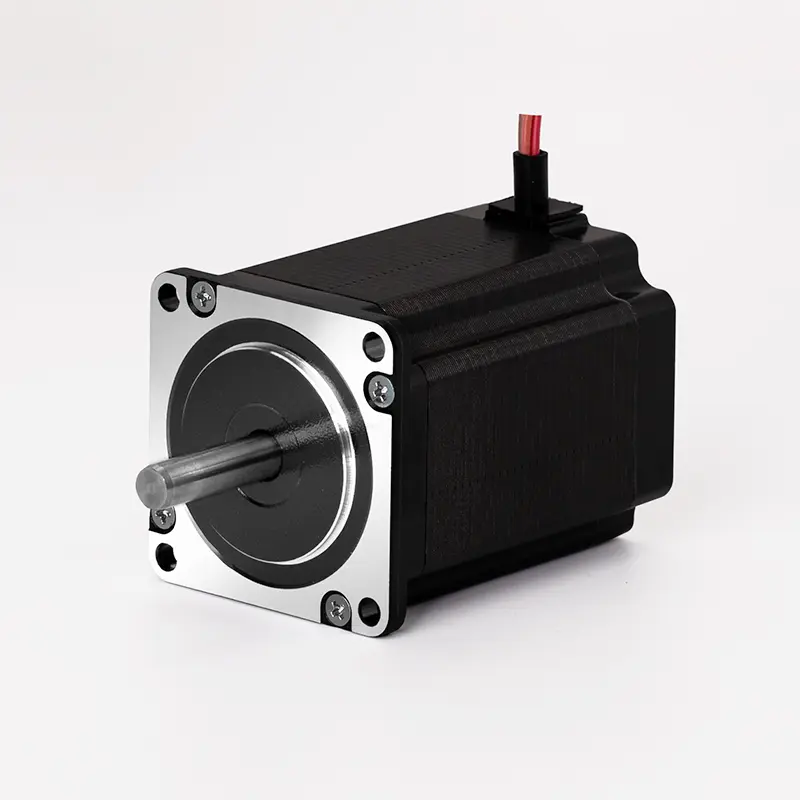

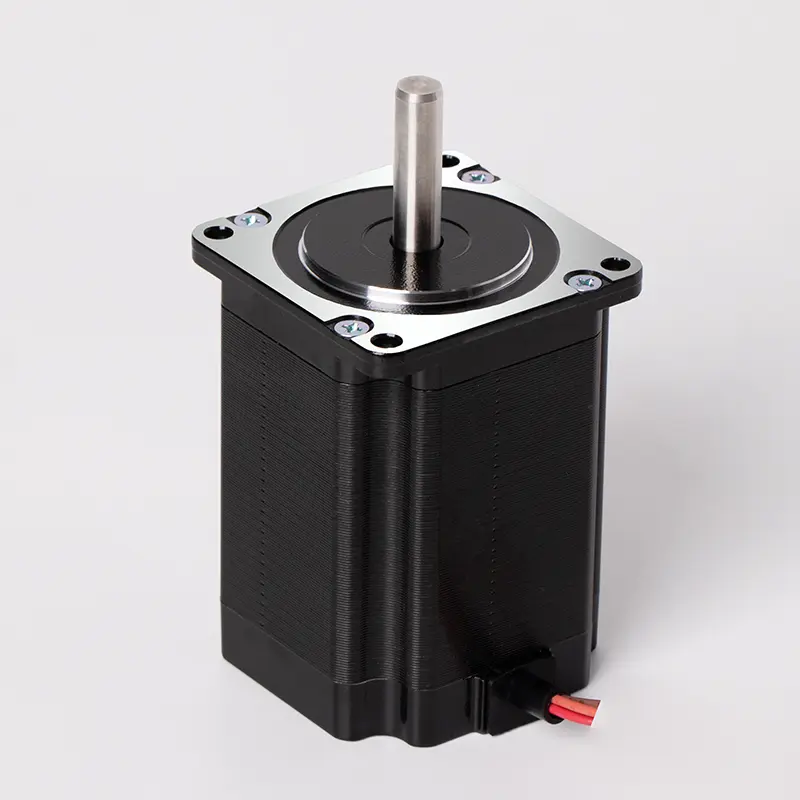

High-Performance 24V DC Stepper Motor Y07-59D1-17155

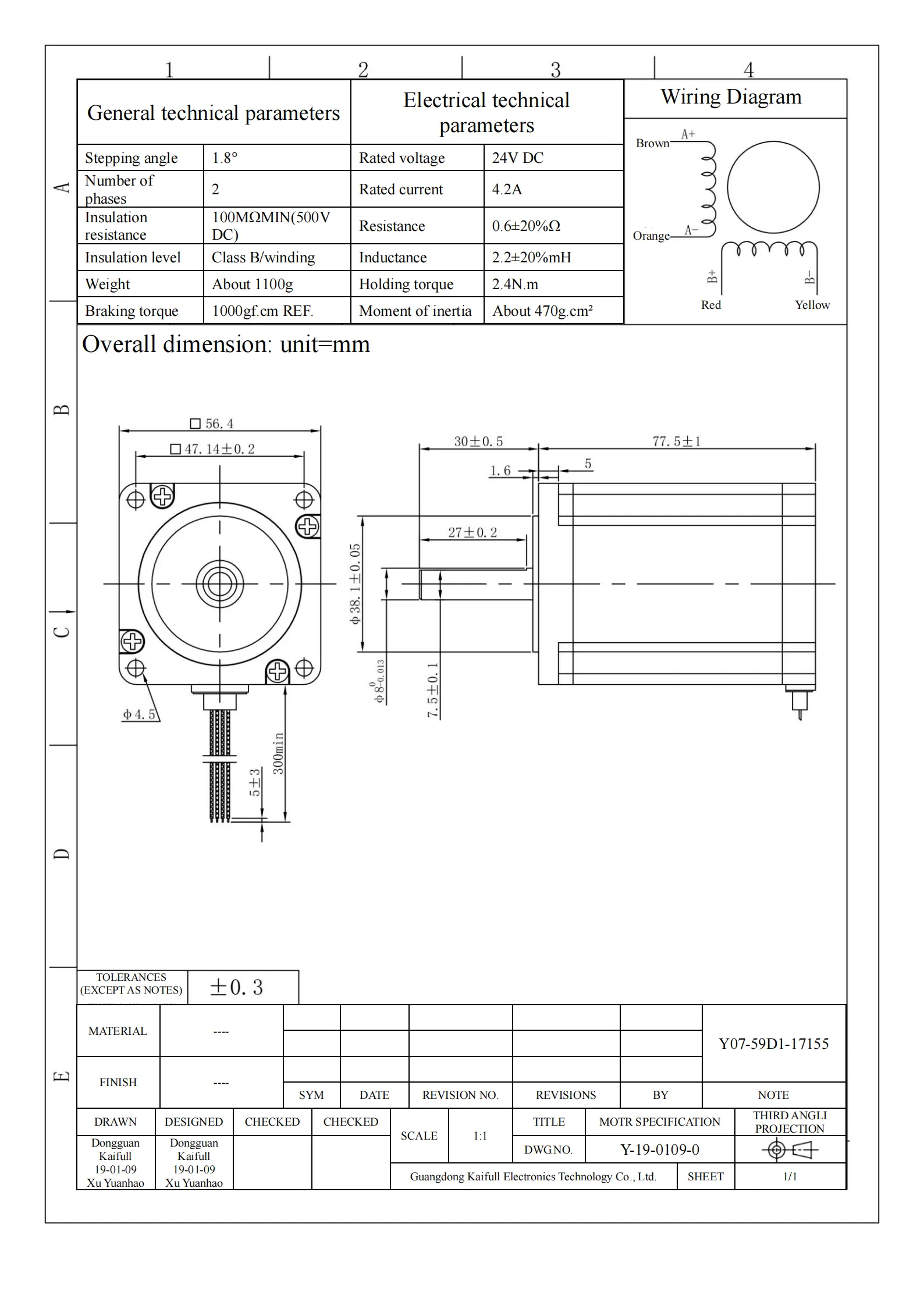

The Y07-59D1-17155 stepper motor is engineered for high performance in demanding automation applications. With a stepping angle of 1.8° and a rated voltage of 24V DC, this motor ensures precise control and exceptional reliability, making it ideal for a variety of tasks in robotics, CNC machines, and other automated systems.

This two-phase stepper motor features a rated current of 4.2A, providing a robust holding torque of 2.4N.m. This impressive torque allows it to manage heavier loads and perform effectively in challenging environments. The braking torque of 1000gf.cm enhances stability and precision, ensuring that the motor can maintain its position accurately under varying operational conditions.

Built to last, the Y07-59D1-17155 motor boasts an insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.6±20Ω, contributing to its durability and reliability. The motor's Class B insulation level and inductance of 2.2±20% mH further enhance its performance by minimizing heat generation and electrical interference.

Weighing approximately 1100g with a moment of inertia of about 470g.cm², the Y07-59D1-17155 is a solid choice for applications requiring both power and precision.
