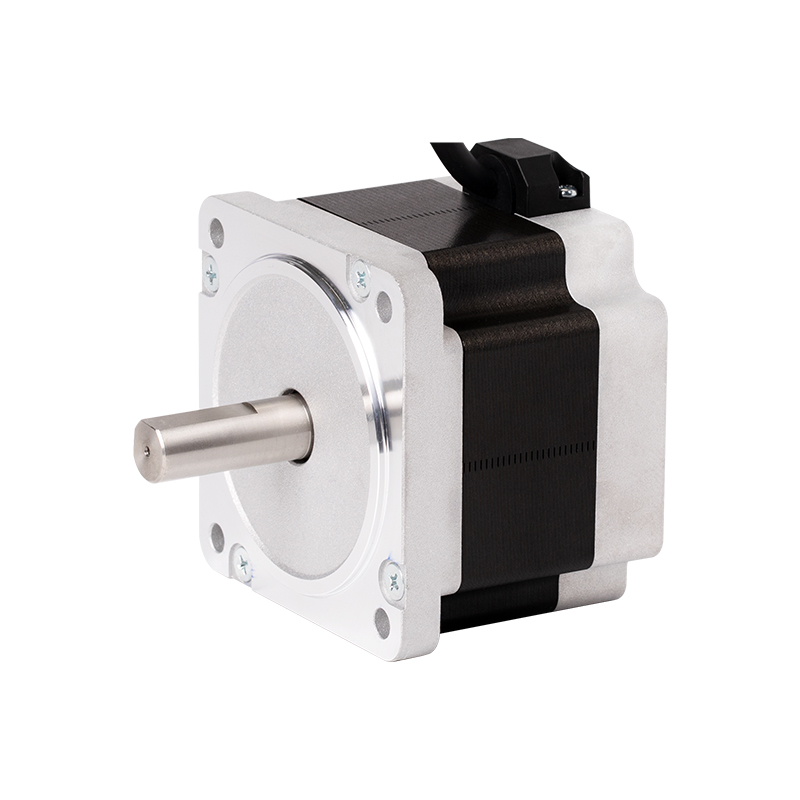

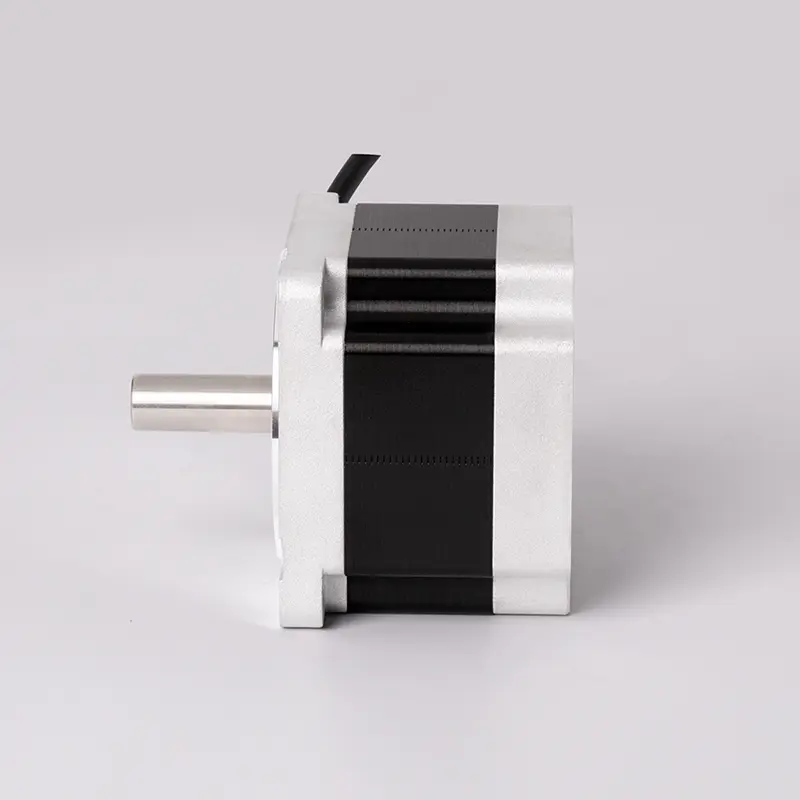

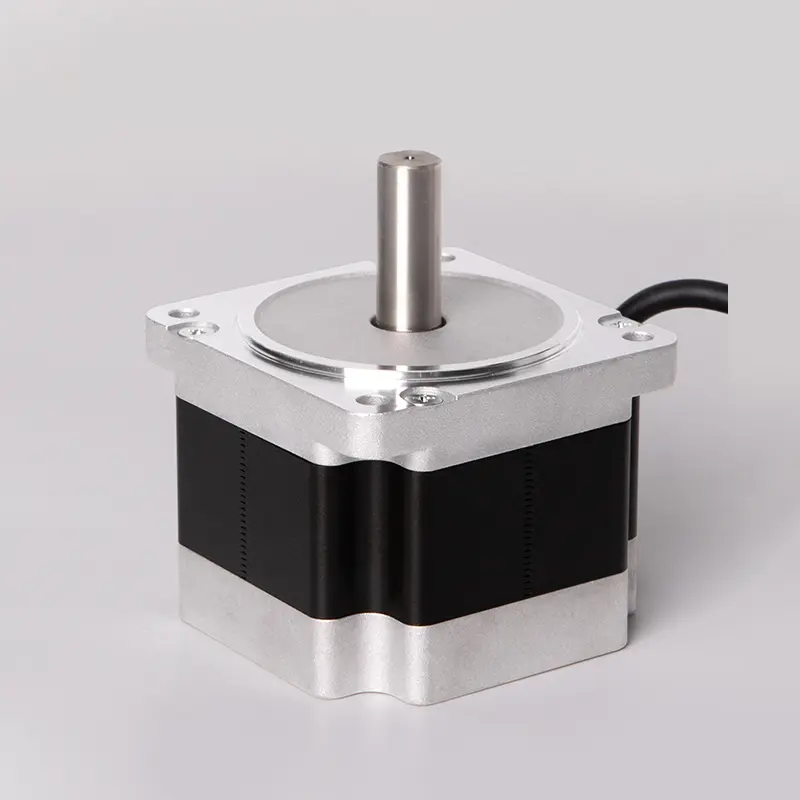

High-Performance 1.8° Stepper Motor - Y09-59D3-7430-H

The Y09-59D3-7430-H is a robust and efficient stepper motor designed for precision motion control in demanding industrial environments. Featuring a stepping angle of 1.8°, this two-phase stepper motor ensures high-precision movements, making it an excellent choice for CNC machines, automated systems, and other industrial applications where accuracy and reliability are crucial.

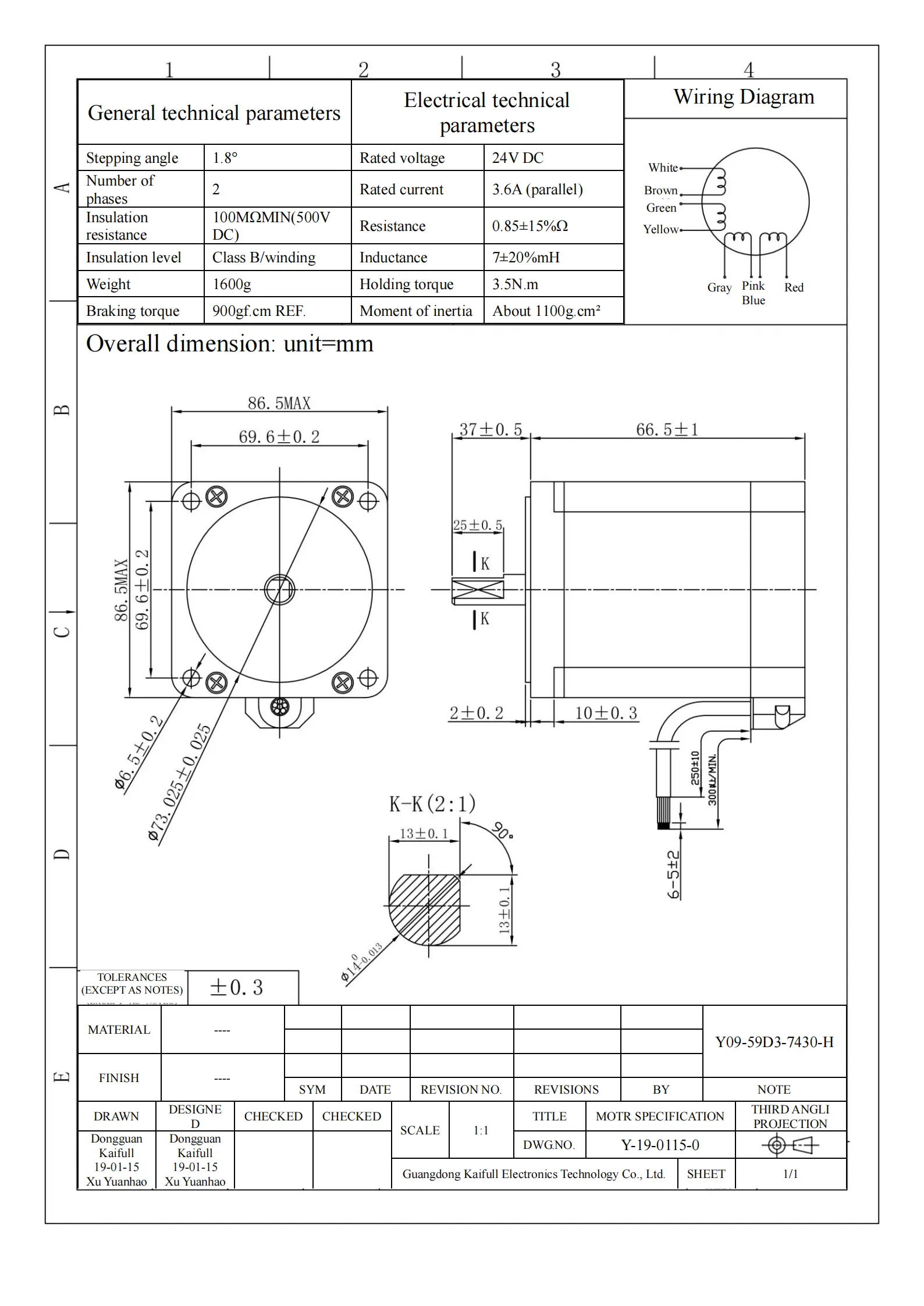

This motor operates at a rated voltage of 24V DC, with a rated current of 3.6A in parallel, offering a significant holding torque of 3.5N.m, which provides the power needed to handle medium to heavy-duty loads. The motor’s low resistance of 0.85Ω ±15% and inductance of 7mH ±20% ensures smooth and efficient performance, reducing energy consumption and minimizing heat generation during prolonged operations. The insulation resistance of 100MΩ (500V DC) and Class B winding insulation level offer enhanced protection and longevity, ensuring optimal motor performance even in challenging conditions.

Weighing approximately 1600g, the Y09-59D3-7430-H is engineered to deliver reliable performance in various industrial applications. Its high braking torque of 900gf.cm provides dependable stopping power, while the moment of inertia of 1100g.cm² ensures stable motion control. These features, combined with the motor's durability, make it suitable for use in a wide range of motion control systems, such as robotics, automation equipment, and precision instruments.
