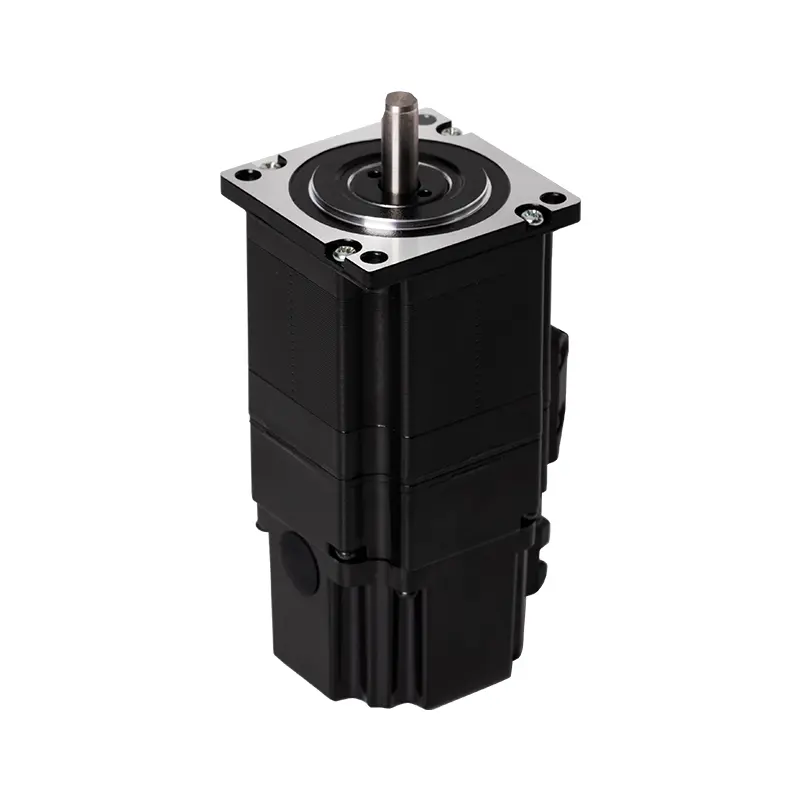

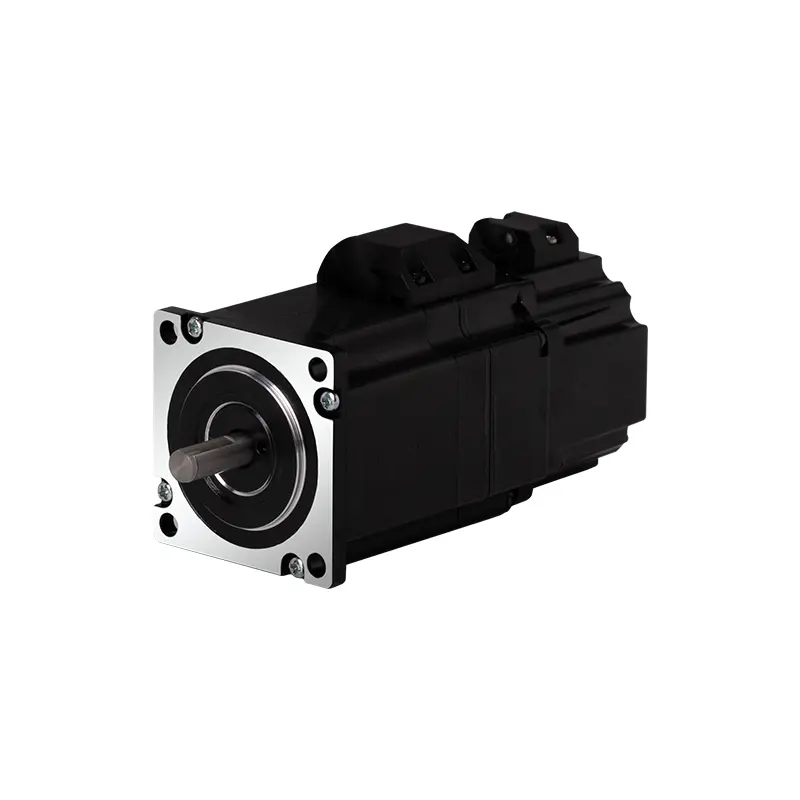

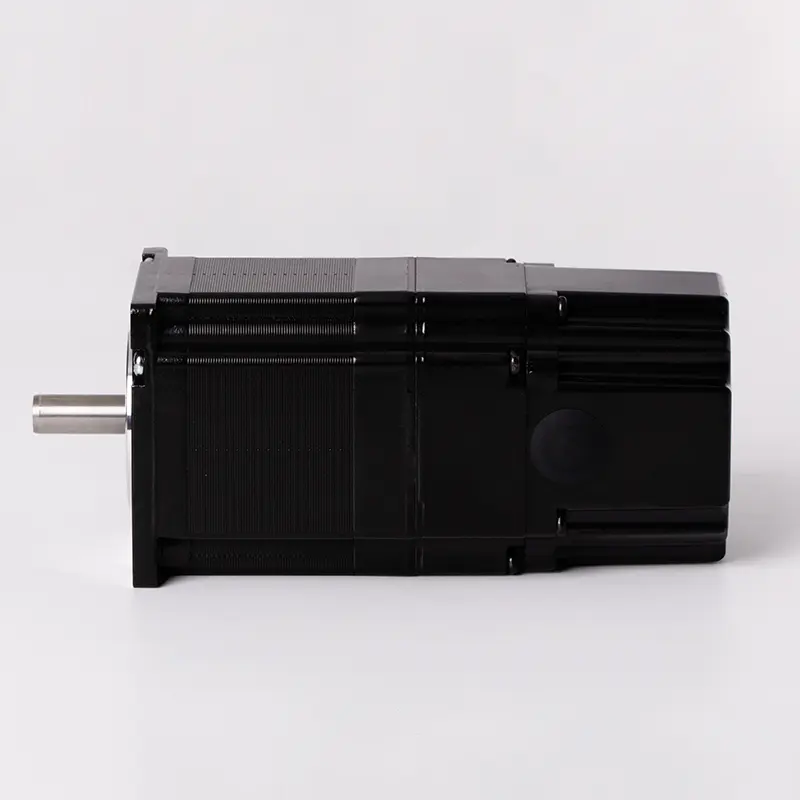

57K56-E1000M Closed-Loop Stepper Motor with 1.4Nm Holding Torque

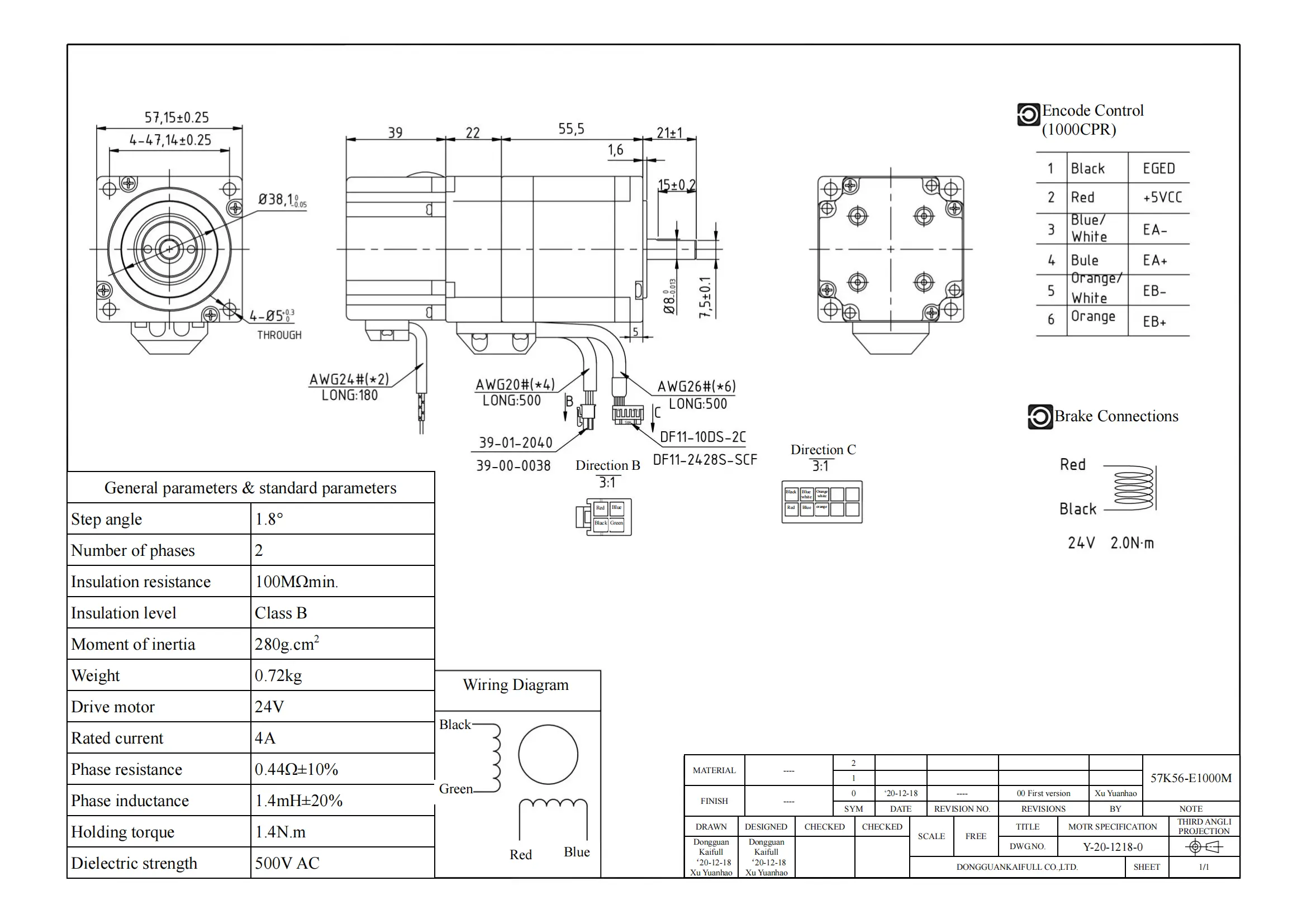

The 57K56-E1000M Closed-Loop Stepper Motor is engineered for precision and stability, providing a 1.8° step angle with reliable two-phase operation. This motor is ideal for applications requiring consistent, accurate control with a robust 1.4Nm holding torque. Built to withstand rigorous conditions, it has an insulation resistance of 100MΩ minimum and is classified at insulation level B, ensuring durability and safety. With a 24V drive voltage, a rated current of 4A, and a phase resistance of 0.44Ω±10%, it delivers efficient performance while maintaining low energy consumption. The motor’s moment of inertia is 280g.cm², with a lightweight construction of only 0.72kg, making it versatile for various industrial uses. Its strong dielectric strength of 500V AC further enhances its resilience, making this closed-loop motor a dependable choice for precise motion control.
