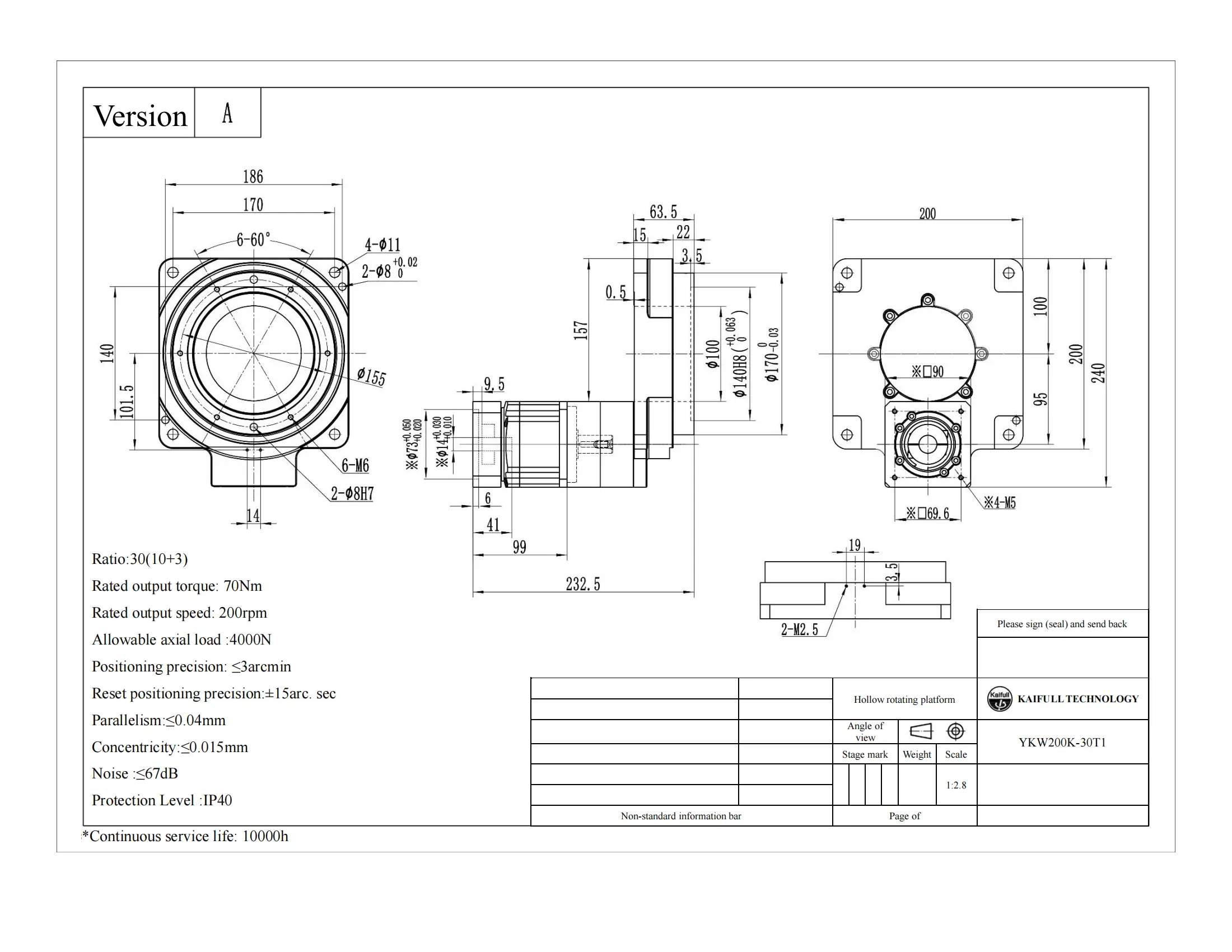

YKW200K-30T1 High-Torque Hollow Rotary Platform with 30:1 Reduction

The YKW200K-30T1 hollow rotary platform is designed to handle substantial loads with precision and durability, ideal for heavy-duty industrial automation and robotics applications. This platform supports an impressive allowable torque of 80 N.m, an axial load capacity of 200 kg, and a radial force of up to 80 N.m, ensuring reliable performance under intense operational conditions. With a 30:1 reduction ratio and a maximum disk rotation speed of 720° per second, it offers exceptional control over movements, suitable for tasks requiring high rotational speed and accuracy.

Engineered for precision, the YKW200K-30T1 delivers a positioning accuracy of 8 arc-min and a repetitive positioning accuracy of ≤±30 arc-sec, ensuring consistent and exact performance even during prolonged use. It boasts an accuracy life of over 15,000 cycles in intermittent operations, making it an ideal choice for applications requiring frequent yet precise movements.

Weighing 15 kg, this robust platform features IP40 ingress protection, making it resistant to common industrial environmental factors. The motor interface is compatible with T1 motors featuring a shaft diameter of ф14 and a PCD of ф98.4, ensuring seamless integration with a variety of motor systems.

The YKW200K-30T1 is perfect for high-precision tasks such as CNC machining, robotic arms, automated assembly, and positioning systems where heavy loads and precise movements are critical.
