YKW200K-18V1 Precision Rotary Platform with 50 N·m Torque

The YKW200K-18V1 rotary platform delivers exceptional performance tailored for industrial applications demanding both strength and precision. Designed with an allowable torque of 50 N·m, it supports axial loads of up to 200 kg and radial forces of 80 N·m, ensuring reliable and consistent operation under heavy-duty conditions. Its high rotation speed of 720°/sec and an 18:1 reduction ratio make it ideal for smooth and precise positioning tasks.

This platform guarantees positioning accuracy of 3 arc-min and repetitive positioning accuracy of ≤±15 arc-sec, making it suitable for critical applications. With an operational lifespan of over 15,000 cycles under intermittent use and IP40 ingress protection, the YKW200K-18V1 is built for longevity and controlled environments.

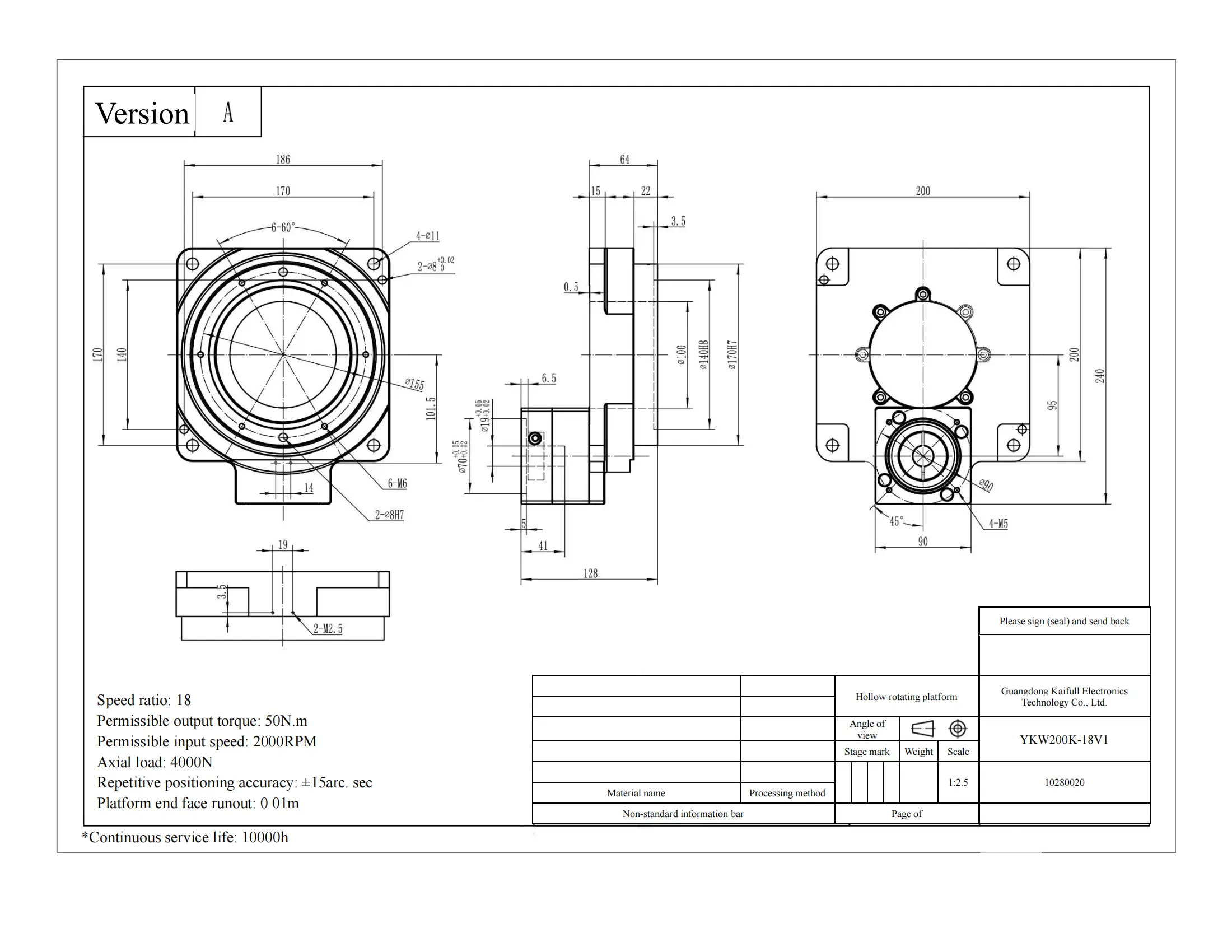

Weighing 10 kg, the platform features a motor interface with a 19mm shaft diameter, a PCD of ф90, and M5 mounting threads, ensuring compatibility with a wide range of industrial systems. Ideal for applications in robotics, automated assembly lines, and precision machining, this rotary platform combines durability and high precision for seamless integration into your workflow.
