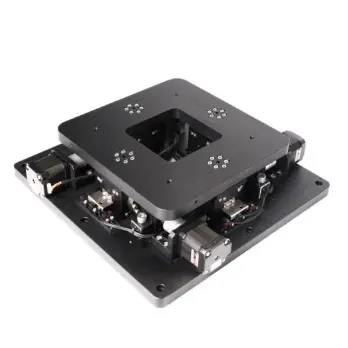

YK-XXY230EL-S1-1255 High-Precision XY Platform with ±15mm Stroke

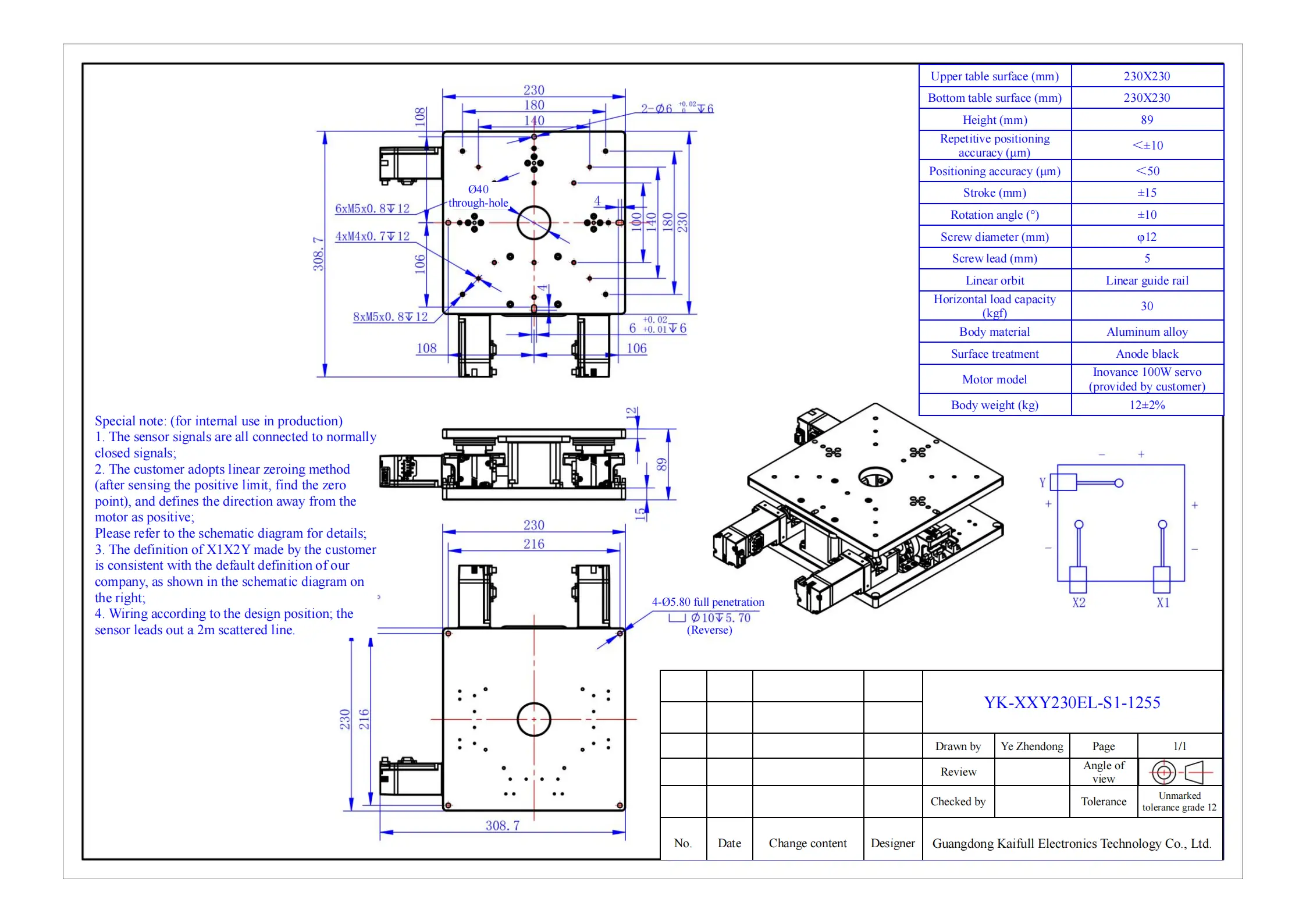

The YK-XXY230EL-S1-1255 is a high-precision XY platform designed for demanding industrial applications requiring accurate and repeatable motion control. With an upper and bottom table surface measuring 230x230mm, this platform offers a robust and stable working area ideal for tasks such as precision assembly, inspection, and automation processes. Standing at 89mm in height, the platform provides a compact yet sturdy solution that can be easily integrated into various setups.

Engineered for precision, this platform features a repetitive positioning accuracy of ±10μm and a positioning accuracy of less than 50μm, making it suitable for applications that require exact movement and positioning. The stroke of ±15mm, combined with a rotational angle of ±10°, allows for flexible multi-axis movements, enabling a wide range of motion for complex tasks.

The YK-XXY230EL-S1-1255 is built with a 12mm diameter screw and a 5mm lead, which ensures smooth and precise linear movements. The platform is guided by a high-quality linear guide rail, further enhancing the accuracy and stability of its motion. With a horizontal load capacity of 30kgf, the platform is capable of supporting heavy loads, making it suitable for various industrial processes that demand durability and precision.

Constructed from aluminum alloy and finished with an anodized black surface treatment, the platform is both lightweight and resistant to corrosion, ensuring long-term durability in industrial environments. The platform's total body weight is approximately 12kg, making it relatively easy to handle and integrate into larger systems.

The YK-XXY230EL-S1-1255 is powered by a customer-provided Inovance 100W servo motor, ensuring high-performance motion control with smooth and reliable operation. This motor enables the platform to achieve precise movements, making it ideal for high-precision applications in industries such as electronics, robotics, and automation.

In summary, the YK-XXY230EL-S1-1255 is a versatile and high-performance XY platform designed for industrial applications requiring precision, stability, and load-handling capability. Its combination of accurate positioning, durable construction, and flexible motion makes it a perfect fit for tasks requiring exact and repeatable motion control, ensuring optimal performance in complex operations.
