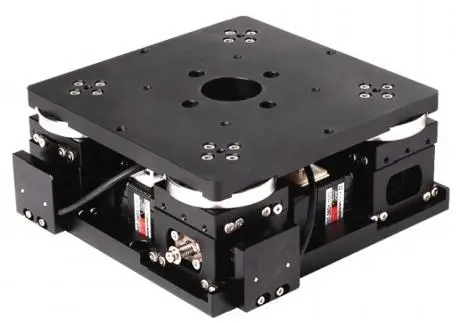

YK-XXY2218P-S1-KT18 Compact Positioning Platform, ±5μm Accuracy

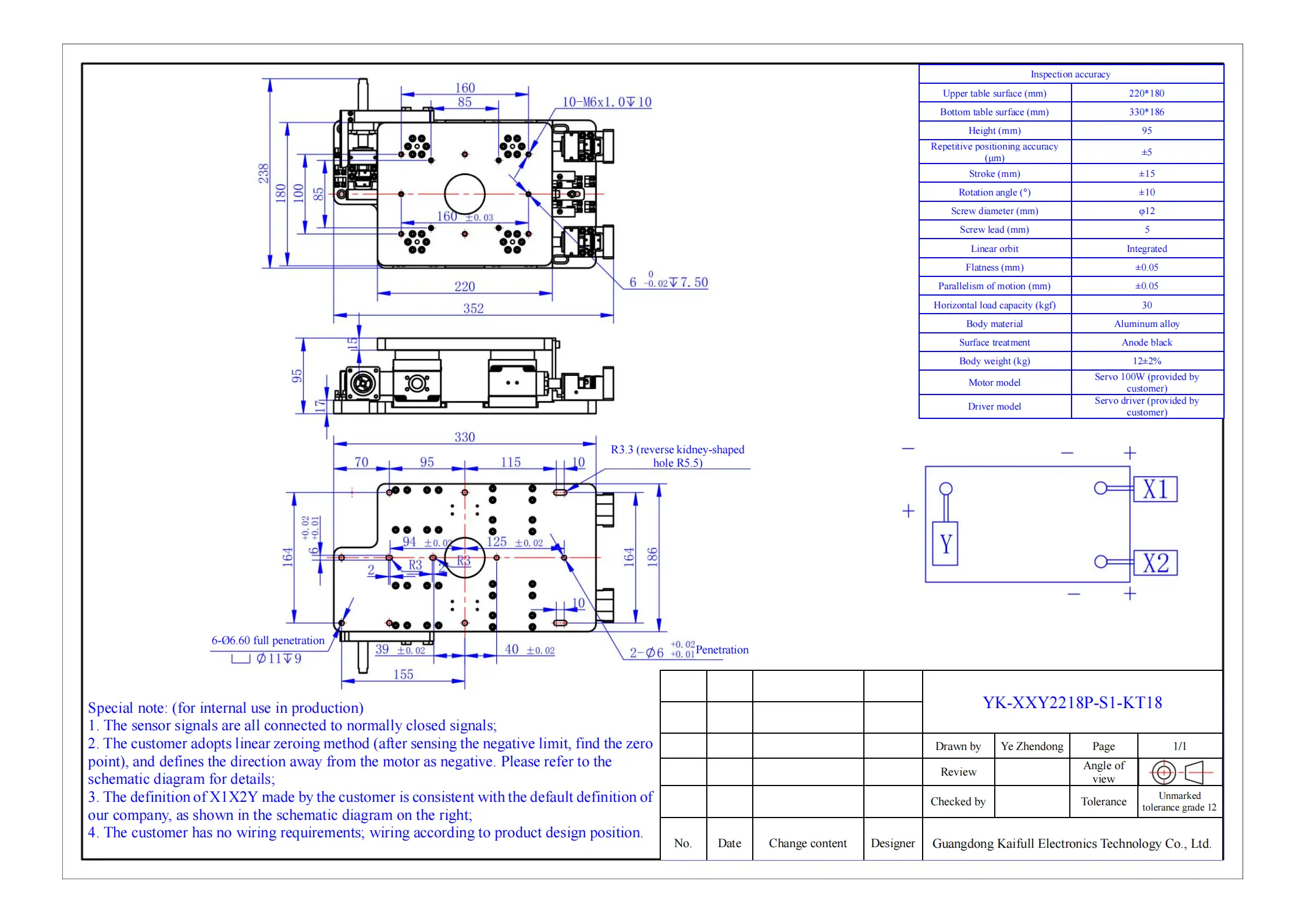

The YK-XXY2218P-S1-KT18 Compact Positioning Platform is crafted to deliver precise positioning with ±5μm repetitive accuracy, ideal for fine-tuned industrial applications. It features a 220x180mm upper table surface and a 330x186mm bottom table surface, offering robust support within a compact 95mm height. The platform allows for versatile movement with a ±15mm stroke and a ±10° rotation angle, powered by an integrated linear orbit for smooth, consistent motion. Constructed from high-grade aluminum alloy with a protective anode black finish, this platform supports a horizontal load of up to 30kgf. At a manageable weight of 12kg±2%, it is compatible with a 100W servo motor and driver (provided by the customer), enhancing adaptability and precise control for complex tasks.
