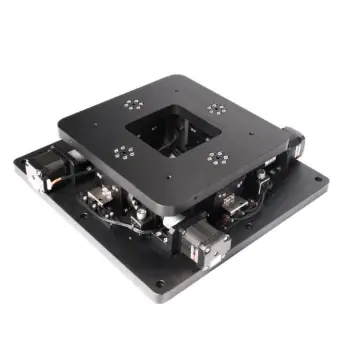

YK-XXY200PL-S1-1255 Precision XY Platform with ±10mm Stroke

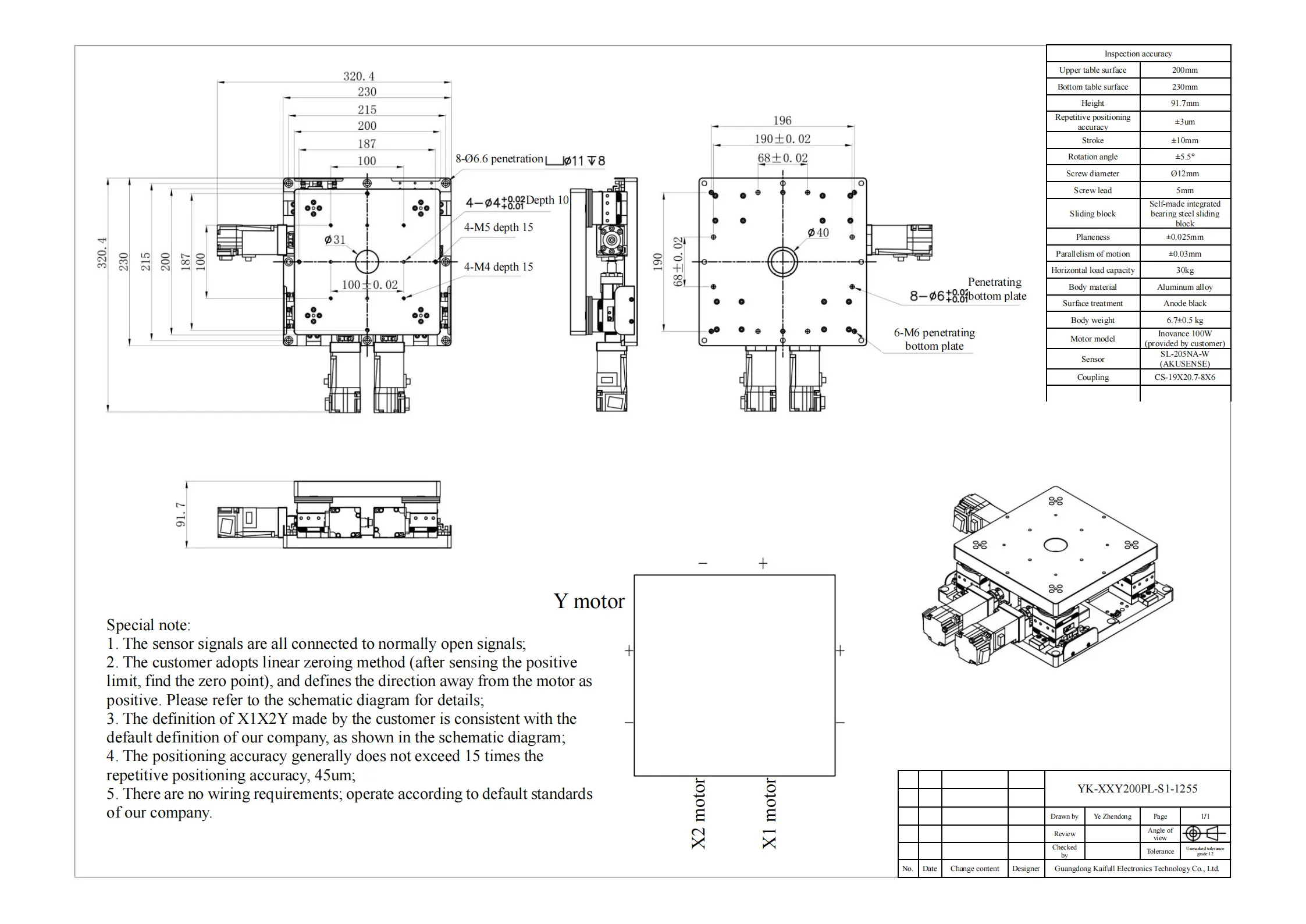

The YK-XXY200PL-S1-1255 is a precision XY platform designed for high-accuracy inspection and automation applications. Featuring a 200mm upper table surface and a 230mm bottom table surface, this platform is built to provide a stable and reliable foundation for precision movements. The platform's height is 91.7mm, giving it a compact form factor that can be easily integrated into a variety of industrial setups.

Engineered for exceptional precision, this platform boasts a repetitive positioning accuracy of ±3μm, ensuring reliable and consistent performance in tasks that demand high repeatability. The stroke range of ±10mm allows for flexible movement, while the rotation angle of ±5.5° offers the added ability to adjust angles during operation, making it ideal for alignment, inspection, and fine-tuned assembly processes.

At the heart of the YK-XXY200PL-S1-1255 is a robust screw system, featuring a 12mm diameter and a 5mm lead. This combination delivers smooth and efficient linear motion, guided by self-made integrated bearing steel sliding blocks for enhanced durability and precision. The platform’s flatness is maintained at ±0.025mm, while the parallelism of motion is rated at ±0.03mm, ensuring minimal deviation and high accuracy throughout the range of motion.

With a horizontal load capacity of 30kg, this platform is capable of supporting significant loads, making it well-suited for heavy-duty applications. The platform is constructed from high-grade aluminum alloy and finished with an anodized black surface treatment, providing both strength and corrosion resistance for long-term use in industrial environments. Despite its robust construction, the platform weighs only 6.7kg, making it easy to incorporate into existing systems.

The YK-XXY200PL-S1-1255 is powered by a customer-provided Inovance 100W motor, ensuring powerful and precise control over the platform’s movements. Additionally, it features an AKUSENSE SL-205NA-W sensor, offering precise feedback for accurate positioning. The platform also includes a CS-19X20.7-8X6 coupling, ensuring reliable transmission of motion between the motor and the platform.

In summary, the YK-XXY200PL-S1-1255 is a high-performance XY platform that excels in precision and load-handling capacity. Its combination of accuracy, durability, and versatility makes it an ideal solution for a wide range of applications, from industrial inspection to automated assembly. With its ability to deliver consistent and precise movements, this platform ensures optimal performance in demanding environments.
