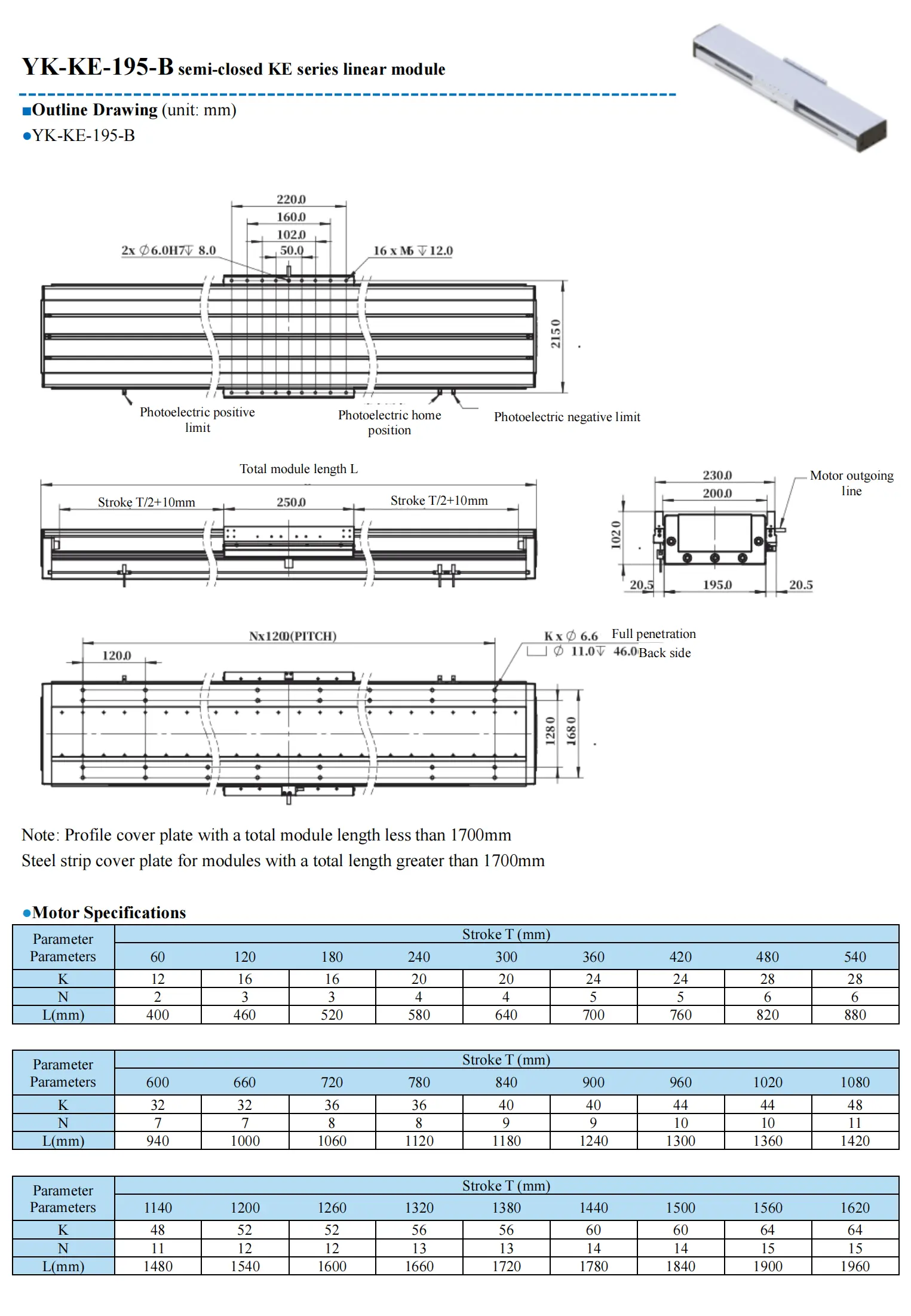

YK-KE-195-D1-L（--）-KA1-3-B Linear Motor – Size 195, 561N Continuous Force, 2244N Peak Force

Parameter

Parameters

Stroke T (mm)

60

120

180

240

300

360

420

480

540

K

12

16

16

20

20

24

24

28

28

N

2

3

3

4

4

5

5

6

6

L(mm)

400

460

520

580

640

700

760

820

880

Parameter

Parameters

Stroke T (mm)

600

660

720

780

840

900

960

1020

1080

K

32

32

36

36

40

40

44

44

48

N

7

7

8

8

9

9

10

10

11

L(mm)

940

1000

1060

1120

1180

1240

1300

1360

1420

Parameter

Parameters

Stroke T (mm)

1140

1200

1260

1320

1380

1440

1500

1560

1620

K

48

52

52

56

56

60

60

64

64

N

11

12

12

13

13

14

14

15

15

L(mm)

1480

1540

1600

1660

1720

1780

1840

1900

1960

Parameter

Parameters

Stroke T (mm)

1680

1740

1800

1860

1920

1980

2040

2100

2160

K

68

68

72

72

76

76

80

80

84

N

16

16

17

17

18

18

19

19

20

L(mm)

2020

2080

2140

2200

2260

2320

2380

2440

2500

Parameter

Parameters

Stroke T (mm)

2220

2280

2340

2400

2460

2520

2580

2640

2700

K

84

84

88

92

92

96

96

100

100

N

20

21

21

22

22

23

23

24

24

L(mm)

2560

2620

2680

2740

2800

2860

2920

2980

3040

Parameter

Parameters

Stroke T (mm)

2760

2820

2880

2940

3000

3060

3120

3180

K

104

104

108

108

112

112

116

116

N

25

25

26

26

27

27

28

28

L(mm)

3100

3160

3220

3280

3340

3400

3460

3520

Parameter

Parameters

Stroke T (mm)

3240

3300

3360

3420

3480

3540

3600

3660

K

120

120

124

124

128

128

132

132

N

29

29

30

30

31

31

32

32

L(mm)

3580

3640

3700

3760

3820

3880

3940

4000

Motor

YK-KFW03-W90-C1C2-0.3 power cord length: 200mm

Drives

Continuous current: 5A Peak current: 20A

Feed back

Magnetic grating: DMA-010 1.0 μm resolution; wiring length: 200mm

Optical grating: AM4D40R 1.0μm resolution; wiring length: 200mm

Guide rail

Internal and external embedded four guide rails

Thrust

Continuous thrust: 561N Peak thrust: 2244N

Load

At an acceleration of 1G, a speed of 1000mm/s, a dwell time of 0.2s, and a running stroke of 1000mm:

Horizontal installation: Load ≤ 75kg side mounted installation: Load ≤ 60kg; maximum operating speed limit: 2000mm/s

Accuracy

Magnetic grating: Repetitive accuracy: :±5μm grating: repetition accuracy: ±3μm

Straightness

±10μm/300mm

Weight

60mm stroke 20kg (stroke increases by 1.5 kg for every additional 60mm)

Installation Methods

Horizontal installation/side mounted installation (base side as the module reference)

Recommended model of driver

Servotronix Pulse CDHDE-0102AAP (with connector)/ Servotronix Bus CDHDE-0102AEB (with connector)

YK-KE-195-B

Peak thrust

2244.0 N

Continuous thrust

561.0 N

Motor constant

31.5N/(Wl/2)

Max. continuous power dissipation

375.8W

Peak current

20.0 Arms

Continuous current

5.0 Arms

Force constant

112.2 N/Arms

Back EMF

91.8 Vpeak/(m/s)

Resistance Phase to Phase @25°

7.8 ohms

Inductance phase to phase

64.3 mH

Electrical time constant

9.2ms

Max. terminal voltage

540Vdc

Max. winding temperature

120℃

Coil weight

5.4KG

Electrical cycle length

20.0mm
