YK-42D2488-10GZ-50 Linear Actuator – Compact 50mm Stroke Stepper Motor Slide

YK-42D2488-10GZ-50 Electric Linear Slide – 50mm Stroke, 42mm Open-Loop Stepper Motor, Compact Precision Actuator

Discover the YK-42D2488-10GZ-50 linear actuator with 50mm stroke, 42mm open-loop motor, and ±5μm repeatability for compact automation systems.

    Contact us Download
    Detail description
    Technical parameter
    Product size

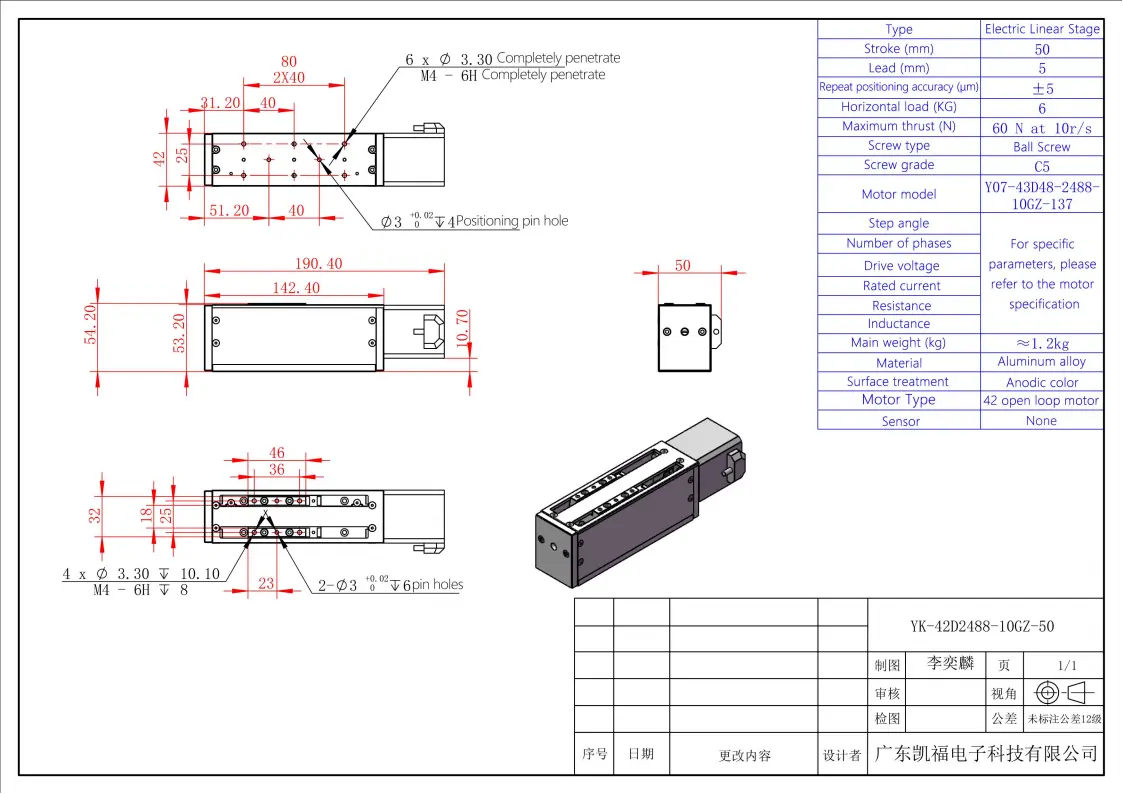

    drawing
    The YK-42D2488-10GZ-50 is a compact and precise electric linear actuator designed with a 50mm stroke and powered by a 42mm open-loop stepper motor. It features a 5mm lead screw, offering ±5μm repeatability and stable motion control for applications requiring fine positioning. Engineered to support a horizontal load of up to 6kg with a maximum thrust of 60N, it’s ideal for space-constrained automation systems, laboratory automation, and miniature handling platforms. Its lightweight form factor and efficient motor performance make it a smart choice for high-precision, low-load applications.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-50

     Dimensions (mm)

    42*54.2*190.4

     Stroke (mm)

    50

     Lead (mm)

    5

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-137
    YK-42D2488-10GZ-50_01
