YK-42D2488-10GZ-250M Linear Actuator with Brake – 250mm Stroke, 42mm Stepper, ±5μm Accuracy

YK-42D2488-10GZ-250M Electric Linear Actuator with Brake – 250mm Stroke, 10mm Lead, 42mm Stepper

Explore the YK-42D2488-10GZ-250M linear actuator with 250mm stroke, 10mm lead, ±5μm precision, and brake-equipped 42mm stepper motor for safe and reliable automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

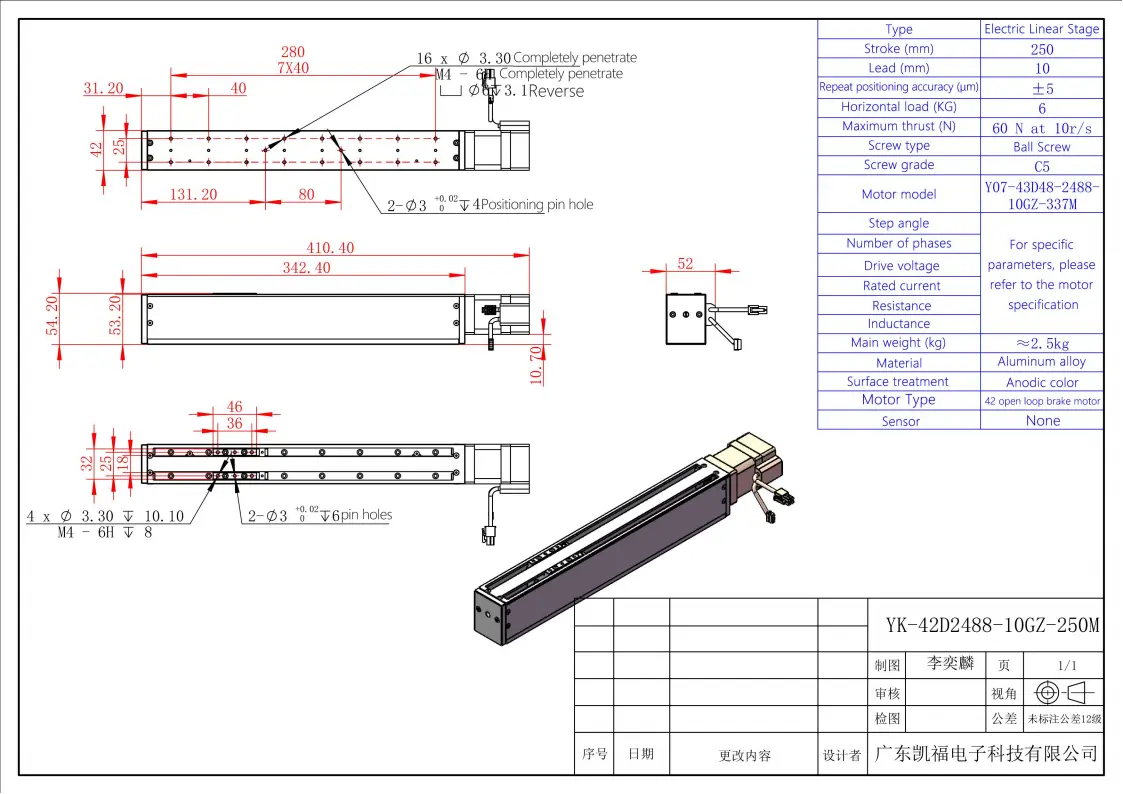

    drawing
    The YK-42D2488-10GZ-250M is a high-performance electric linear actuator equipped with a 42mm open-loop stepper motor with integrated brake, ensuring stable position holding even during power-off scenarios. It features a 250mm stroke, 10mm lead, and ±5μm repeatability, making it ideal for precise automation and industrial applications. With a horizontal load capacity of 6kg and 60N thrust, it supports smooth, accurate motion in compact equipment. The built-in brake improves safety and control for vertical or intermittent motion setups, making this model suitable for robotic platforms, pick-and-place systems, and automated inspection lines.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-250M

     Dimensions (mm)

    42*54.2*410.4

     Stroke (mm)

    250

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 open loop brake

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-337M
    YK-42D2488-10GZ-250M_01
