YK-42D2488-10GZ-200E Closed-Loop Linear Actuator – 200mm Stroke, 10mm Lead, High Precision Motion Stage

YK-42D2488-10GZ-200E Electric Linear Actuator – 200mm Stroke, Closed-Loop Stepper, High Precision Slide

Discover the YK-42D2488-10GZ-200E closed-loop stepper linear actuator with 200mm stroke, 10mm lead, ±5μm repeatability, and 60N thrust for high-precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

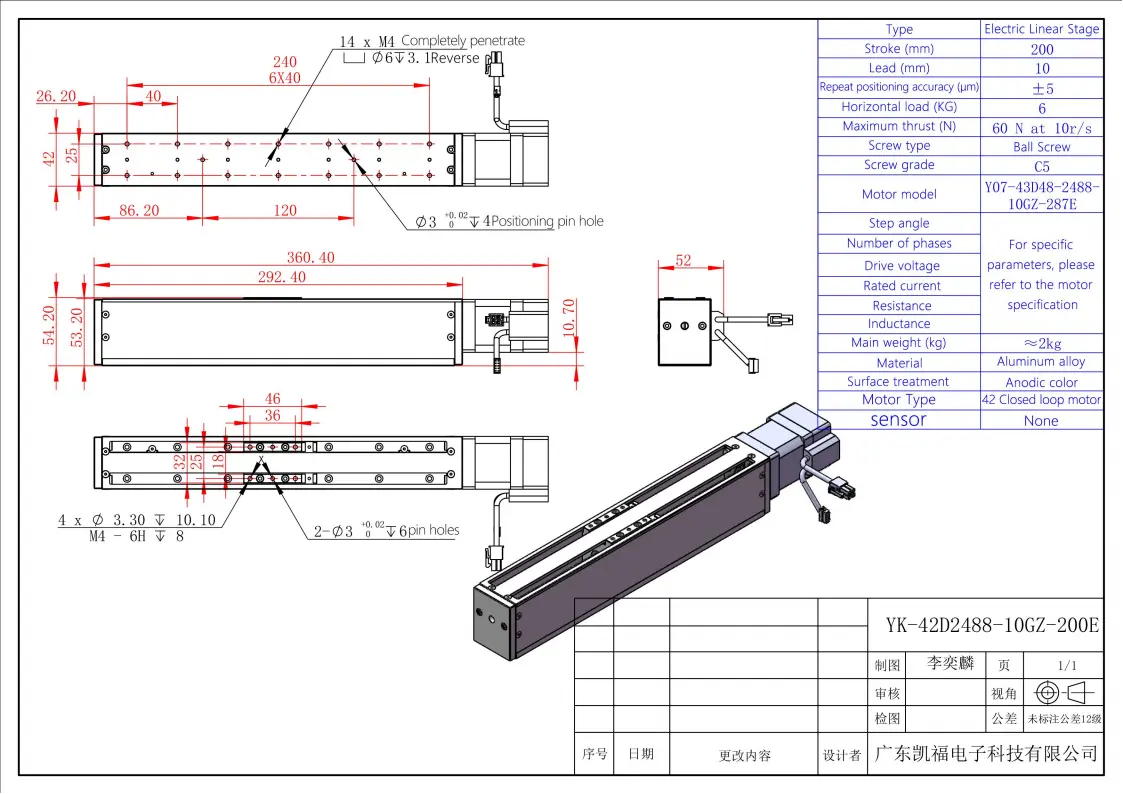

    drawing
    The YK-42D2488-10GZ-200E is a high-precision electric linear actuator featuring a 200mm stroke and a 10mm lead screw, driven by a 42mm closed-loop stepper motor. With ±5μm repeatability, it ensures consistent accuracy in linear positioning tasks. Supporting a horizontal load capacity of 6kg and offering 60N of thrust, this model is ideal for precision automation applications such as semiconductor assembly, optical inspection, and robotic stages. The enhanced closed-loop motor provides real-time feedback to prevent step loss and ensure reliability, making it suitable for high-performance industrial automation environments.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-200E

     Dimensions (mm)

    42*54.2*360.4

     Stroke (mm)

    200

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Closed loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-287E
    YK-42D2488-10GZ-200E_01
