YK-42D2488-10GZ-200 Linear Actuator – 200mm Stroke, 42mm Stepper Motor, High Precision Slide

YK-42D2488-10GZ-200 Electric Linear Actuator – 200mm Stroke, 10mm Lead, 42mm Stepper Motor

Explore the YK-42D2488-10GZ-200 linear actuator featuring 200mm stroke, 10mm lead, ±5μm repeatability, 60N thrust, and 6kg load capacity for precise automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YK-42D2488-10GZ-200 is a compact and high-performance electric linear actuator with a 200mm stroke and a 10mm lead screw, powered by a 42mm open-loop stepper motor. With a repeatability of ±5μm, this actuator ensures reliable precision for demanding positioning applications. It can handle a horizontal load of up to 6kg and delivers 60N of maximum thrust. Its slim dimensions (42×54.2×340.4mm) make it ideal for space-constrained automation systems. Designed for industrial automation, semiconductor handling, optical inspection, and precision assembly lines, it delivers consistent and accurate linear motion in a durable package.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-200

     Dimensions (mm)

    42*54.2*340.4

     Stroke (mm)

    200

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-287

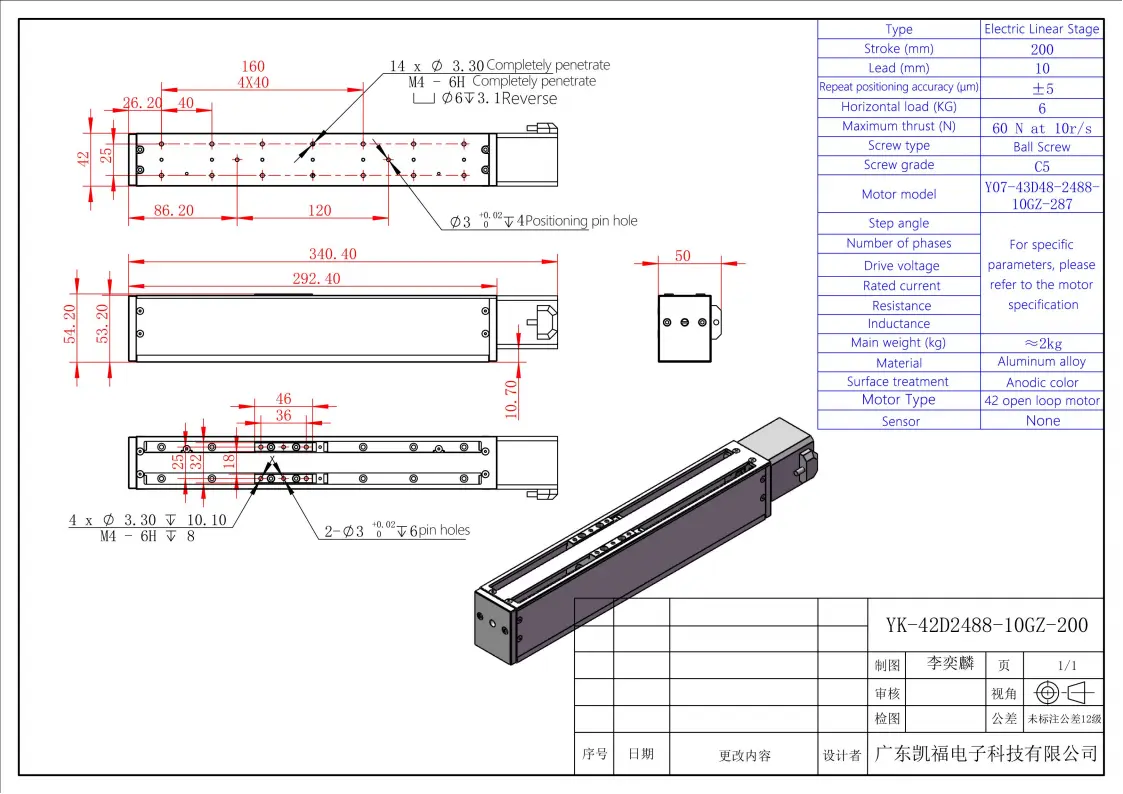

    YK-42D2488-10GZ-200_01
