YK-42D2488-10GZ-150M Electric Linear Actuator – 150mm Stroke, 42mm Stepper Motor with Brake, 10mm Lead

Discover the YK-42D2488-10GZ-150M linear actuator featuring a 150mm stroke, 10mm lead screw, 42mm stepper motor with brake, ±5μm repeatability, and 60N max thrust.

    Contact us Download
    Detail description
    Technical parameter

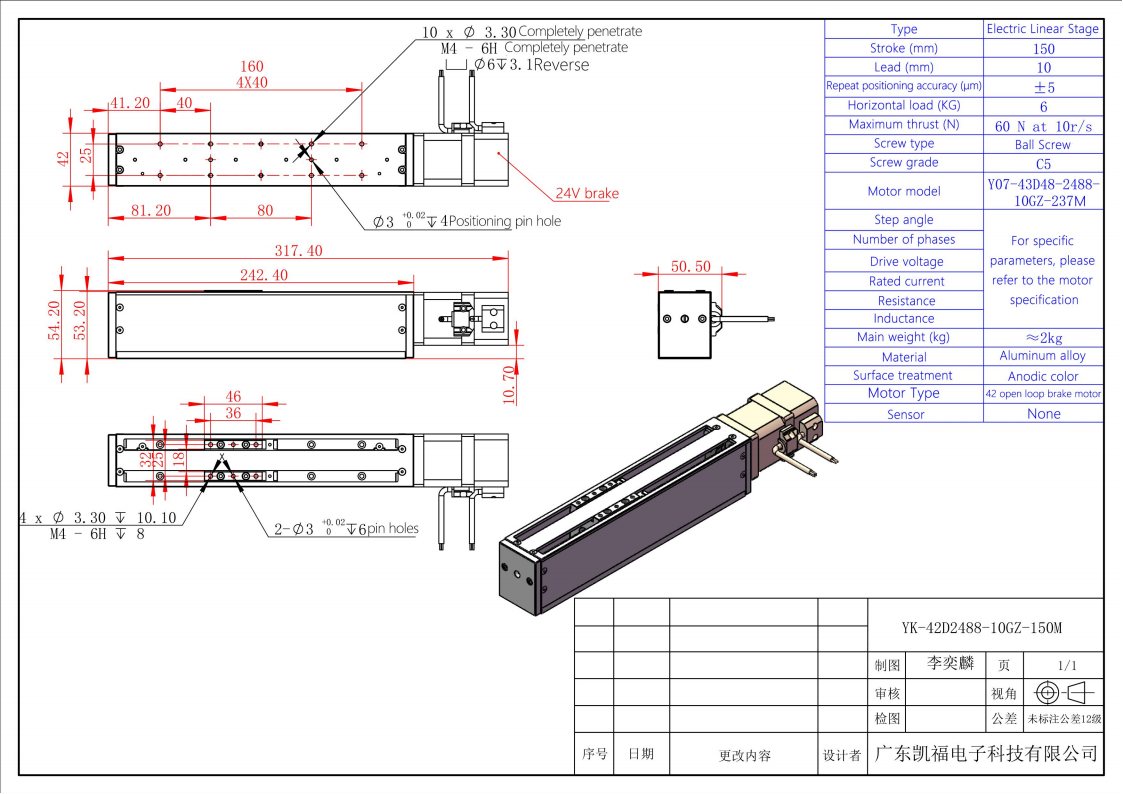

    Product size
    drawing
    The YK-42D2488-10GZ-150M is a high-precision electric linear actuator engineered for demanding motion control tasks. It features a 150mm stroke, 10mm lead screw, and a 42mm open-loop stepper motor with an integrated brake—ensuring stable positioning even during power loss. With ±5μm repeatability, up to 60N max thrust, and 6kg horizontal load capacity, this compact unit (dimensions: 42×54.2×317.4mm) is ideal for automation systems that require reliable holding torque and high-speed linear movement. Widely used in semiconductor, inspection, and industrial automation fields, it provides exceptional performance in compact mechanical assemblies.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-150M

     Dimensions (mm)

    42*54.2*317.4

     Stroke (mm)

    150

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 open loop brake

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-237M
    YK-42D2488-10GZ-150M_01
