YK-42D2488-10GZ-100M-I Linear Stage – 100mm Stroke, 42mm Stepper, 10mm Lead, ±10μm Repeatability

YK-42D2488-10GZ-100M-I Electric Linear Stage – 100mm Stroke, 42mm Open-Loop Stepper Motor, 10mm Lead

High-speed YK-42D2488-10GZ-100M-I linear actuator with 100mm stroke, 10mm lead, 42mm open-loop stepper motor, ±10μm repeatability, and 6kg load capacity.

    Contact us Download
    Detail description
    Technical parameter

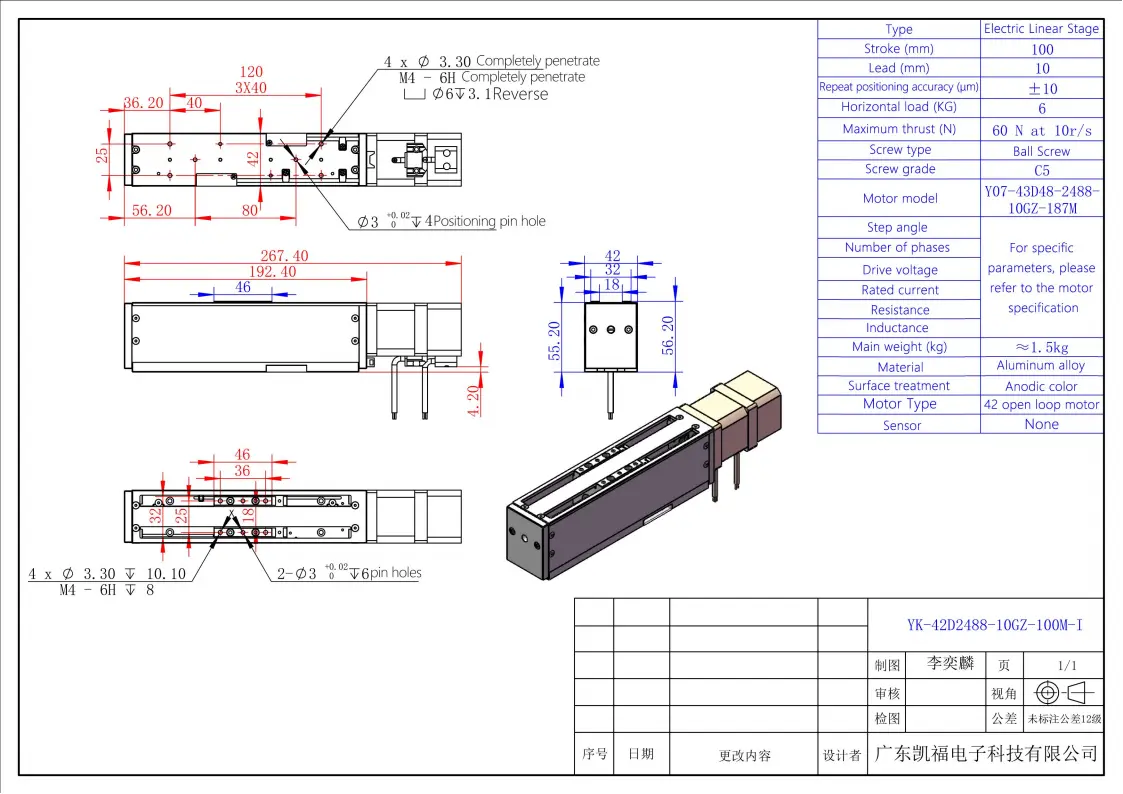

    Product size
    drawing
    The YK-42D2488-10GZ-100M-I electric linear stage is designed for high-speed, mid-load applications requiring stable and repeatable motion. It features a 100mm stroke, 10mm lead, and a durable 42mm open-loop stepper motor that ensures consistent linear positioning without complex feedback systems. With a ±10μm repeatability, 60N max thrust, and ability to support 6kg horizontal loads, this model is suitable for various automation tasks including pick-and-place, component testing, and PCB assembly lines. Its 56.2mm width allows for increased rigidity while maintaining compact integration into industrial systems.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-100M-I

     Dimensions (mm)

    42*56.2*267.4

     Stroke (mm)

    100

     Lead (mm)

    10

     Repeatability (μm)

    ±10

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-187M
    YK-42D2488-10GZ-100M-I_01
