YK-42D2488-10GZ-100M Linear Actuator – 100mm Stroke, 42mm Stepper with Brake, 10mm Lead

YK-42D2488-10GZ-100M Electric Linear Actuator – 100mm Stroke, 10mm Lead, 42mm Stepper Motor with Brake

Explore the YK-42D2488-10GZ-100M linear actuator with 100mm stroke, 42mm stepper motor with brake, 10mm lead, and ±5μm repeatability. Ideal for vertical and high-speed automation tasks.

    Contact us Download
    Detail description
    Technical parameter
    Product size

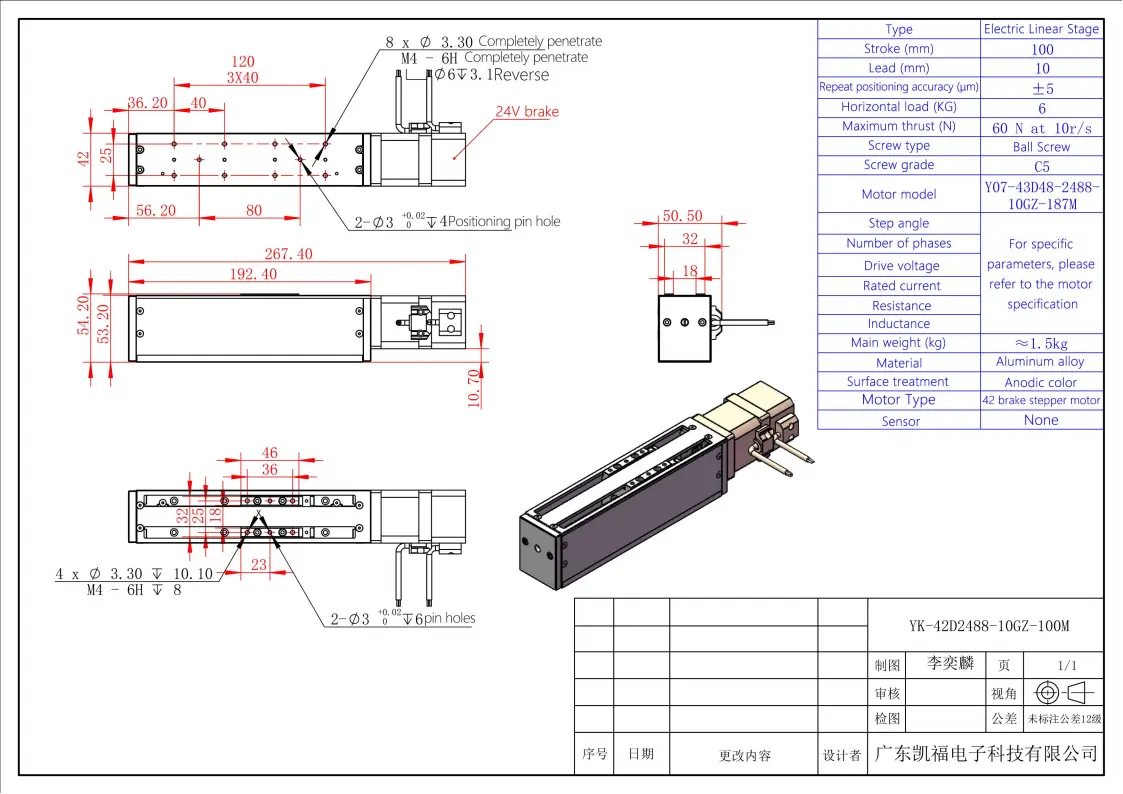

    drawing
    The YK-42D2488-10GZ-100M electric linear actuator features a 100mm stroke and 10mm lead, offering high-speed linear motion for automation systems. Equipped with a 42mm stepper motor with holding brake, this model ensures stable positioning and maintains load integrity when powered off. With ±5μm repeatability, 60N max thrust, and 6kg horizontal load capacity, it’s ideal for precision applications such as electronic assembly, automated inspection, and laboratory automation. The brake function enhances safety and reliability in vertical or power-sensitive systems. Its compact and rugged structure fits perfectly into space-constrained industrial designs.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-100M

     Dimensions (mm)

    42*54.2*267.4

     Stroke (mm)

    100

     Lead (mm)

    10

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Brakes

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-187M
    YK-42D2488-10GZ-100M_01
