YK-42D2488-10GZ-100E Linear Actuator – 100mm Closed-Loop Stepper Slide

YK-42D2488-10GZ-100E Electric Linear Actuator – 100mm Stroke, 42mm Closed-Loop Stepper Motor, High-Speed Precision Slide

Explore the YK-42D2488-10GZ-100E linear actuator with 100mm stroke, 10mm lead, and closed-loop motor for fast, accurate motion control in compact automation.

    Contact us Download
    Detail description
    Technical parameter

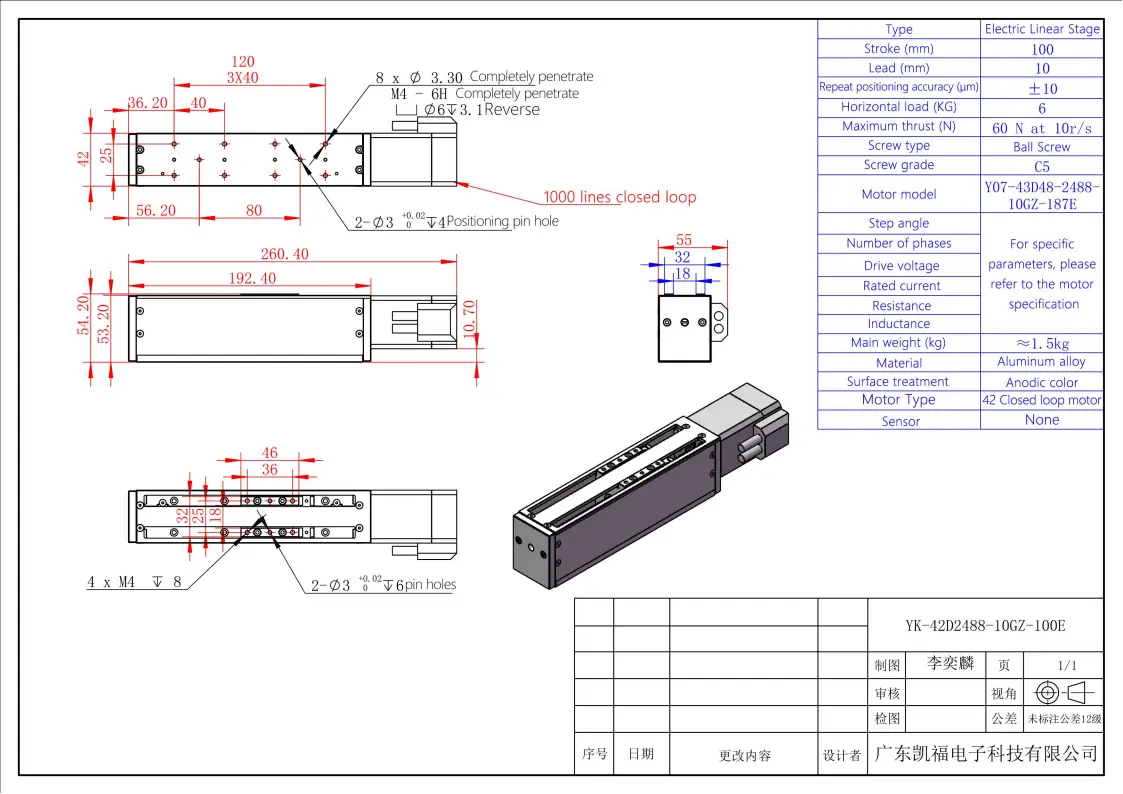

    Product size
    drawing
    The YK-42D2488-10GZ-100E electric linear actuator is engineered for high-speed, reliable performance in compact automation environments. With a 100mm stroke and 10mm lead, this unit delivers fast linear travel with ±10μm repeatability, suitable for applications requiring moderate precision and swift positioning. Powered by a 42mm closed-loop stepper motor, it ensures precise motion control and real-time position feedback. Designed to support a horizontal load of up to 6kg and provide a maximum thrust of 60N, this actuator is ideal for pick-and-place systems, electronics assembly, and laboratory automation where speed, reliability, and footprint matter.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-100E

     Dimensions (mm)

    42*54.2*260.4

     Stroke (mm)

    100

     Lead (mm)

    10

     Repeatability (μm)

    ±10

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Closed loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-187E
    YK-42D2488-10GZ-100E_01
