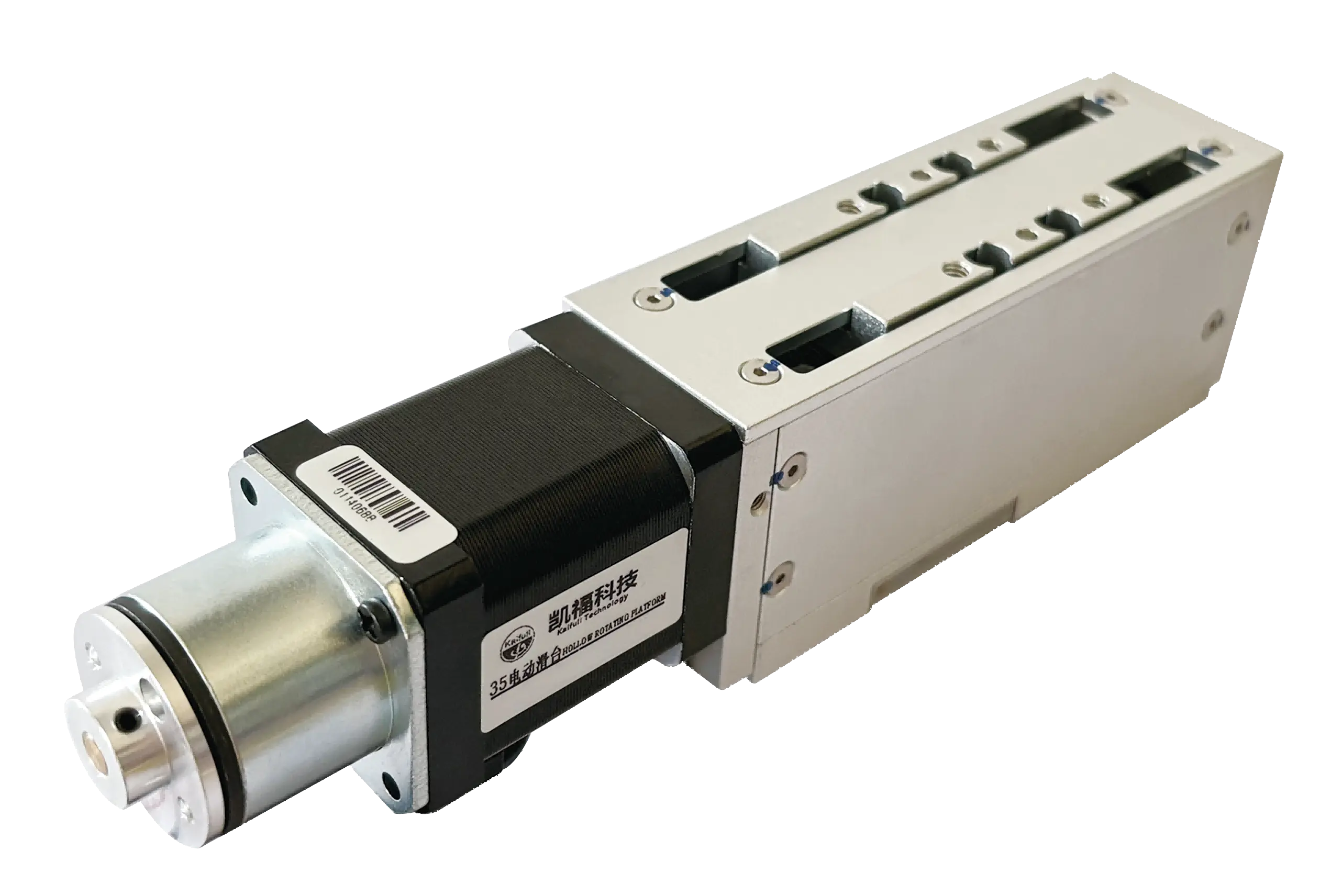

YK-42D2488-10GZ-100-I Linear Actuator – 100mm Travel, 10mm Lead, 42mm Stepper Motor

YK-42D2488-10GZ-100-I Electric Linear Actuator – 100mm Stroke, 10mm Lead, 42mm Stepper Motor for Fast Motion

Discover the YK-42D2488-10GZ-100-I electric actuator with 100mm stroke, 10mm lead, and open-loop 42mm stepper motor. Ideal for high-speed automation and compact motion systems.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YK-42D2488-10GZ-100-I electric linear actuator delivers fast and stable linear motion with a 100mm stroke and a 10mm lead screw, designed for rapid positioning tasks. Integrated with a 42mm open-loop stepper motor, it provides dependable and precise movement, ideal for cost-sensitive automation systems. Featuring ±10μm repeatability, 60N maximum thrust, and a horizontal load capacity of 6kg, this model is well-suited for applications like automated testing, material handling, and compact pick-and-place systems. Its slim structure and efficient design make it a reliable choice for compact automation projects requiring speed and simplicity.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-10GZ-100-I

     Dimensions (mm)

    42*56.2*240.4

     Stroke (mm)

    100

     Lead (mm)

    10

     Repeatability (μm)

    ±10

    Horizontal Load (kg)

    6

     Max Thrust (N)

    60

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-10GZ-187

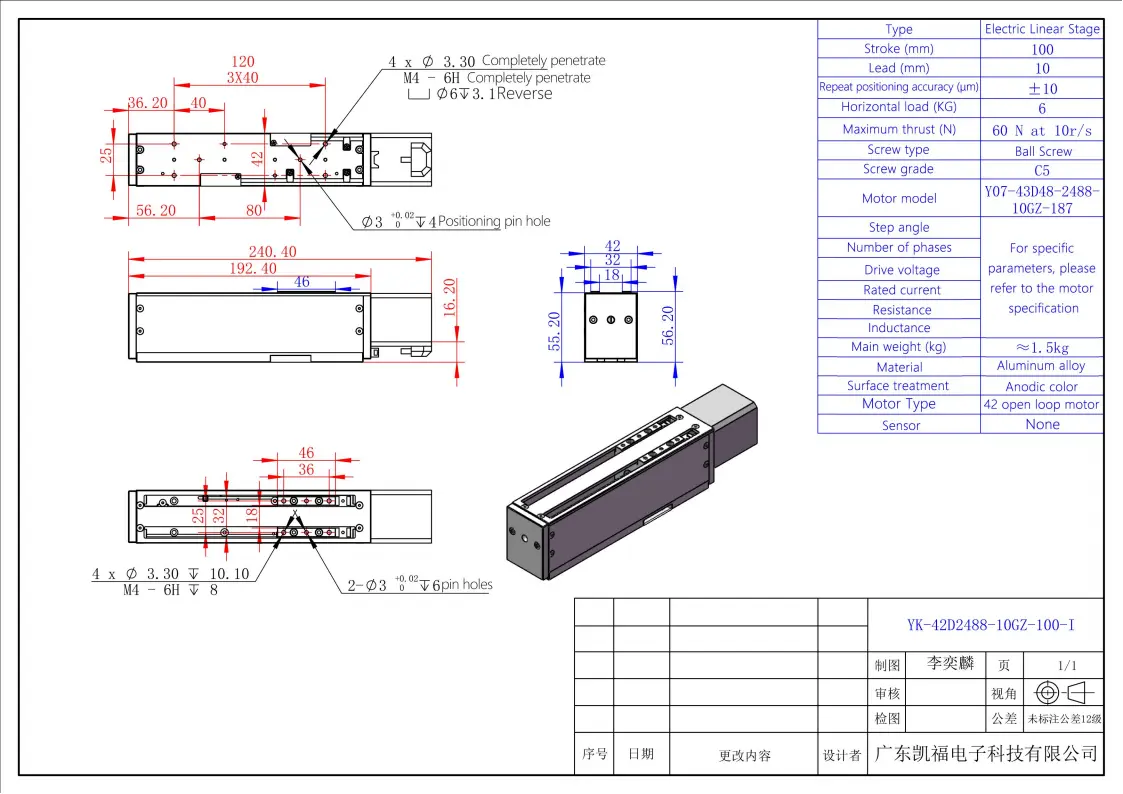

    YK-42D2488-10GZ-100-I_01
