YK-42D2488-05GZ-50E Linear Actuator with 42mm Closed-Loop Stepper Motor and 50mm Stroke

YK-42D2488-05GZ-50E Electric Linear Slide – 50mm Stroke, 42mm Closed-Loop Stepper Motor, High-Precision Linear Actuator

Get precise linear motion with the YK-42D2488-05GZ-50E 50mm stroke actuator featuring a 42mm closed-loop stepper motor, ±5μm repeatability, and 80N thrust.

    Contact us Download
    Detail description
    Technical parameter

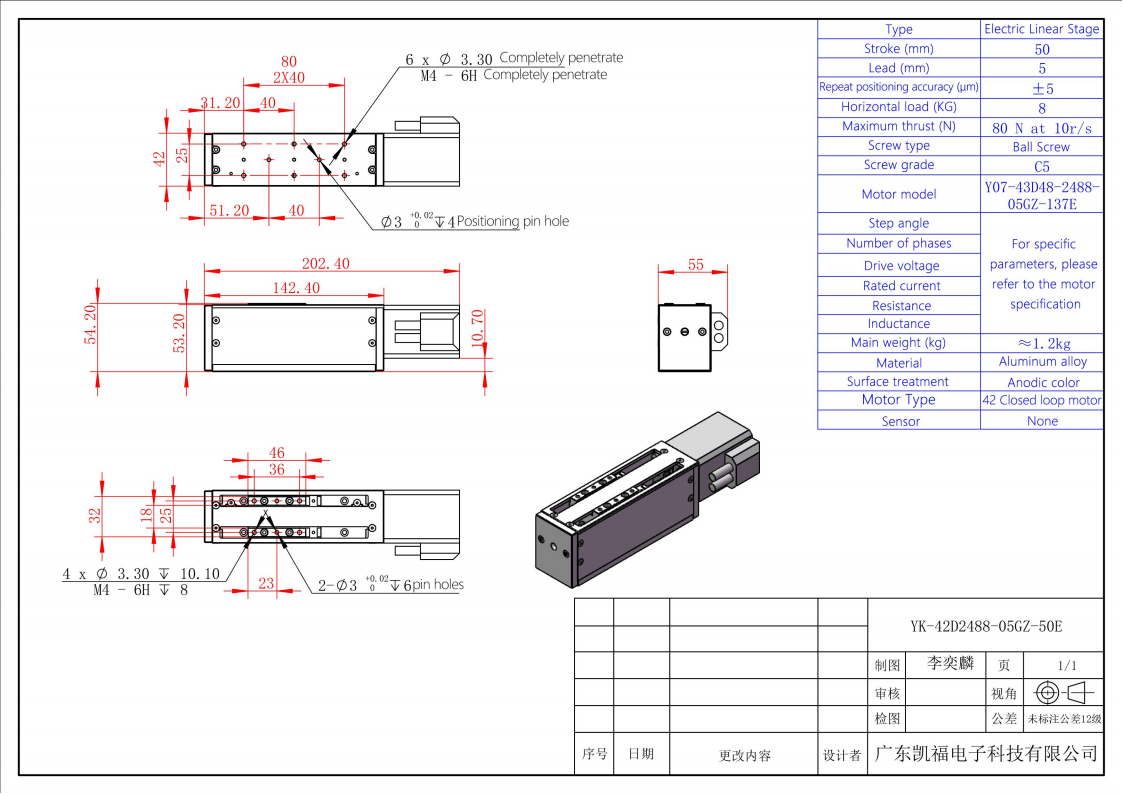

    Product size
    drawing
    The YK-42D2488-05GZ-50E is a compact, high-precision electric linear actuator equipped with a 42mm closed-loop stepper motor, offering enhanced position feedback and reliable motion control. This model features a 50mm stroke, 5mm lead, and ±5μm repeatability, making it ideal for precision applications such as automated testing, visual alignment systems, and medical devices. With support for up to 8kg horizontal load and a maximum thrust of 80N, it ensures smooth and accurate linear motion. Its closed-loop motor system reduces step loss risks, increasing stability and performance in demanding automation environments.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-05GZ-50E

     Dimensions (mm)

    42*54.2*202.4

     Stroke (mm)

    50

     Lead (mm)

    5

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    8

     Max Thrust (N)

    80

     Motor Model

    42 Closed loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-05GZ-137E
    YK-42D2488-05GZ-50E_01
