YK-42D2488-05GZ-150 Linear Slide – 150mm Stroke Stepper Motor Actuator for Automation

YK-42D2488-05GZ-150 Electric Linear Slide – 150mm Stroke, 42mm Open-Loop Stepper Motor, High-Precision Linear Actuator

Explore the YK-42D2488-05GZ-150 electric linear actuator with 150mm stroke and 42mm stepper motor for accurate motion in automation systems.

    Contact us Download
    Detail description
    Technical parameter

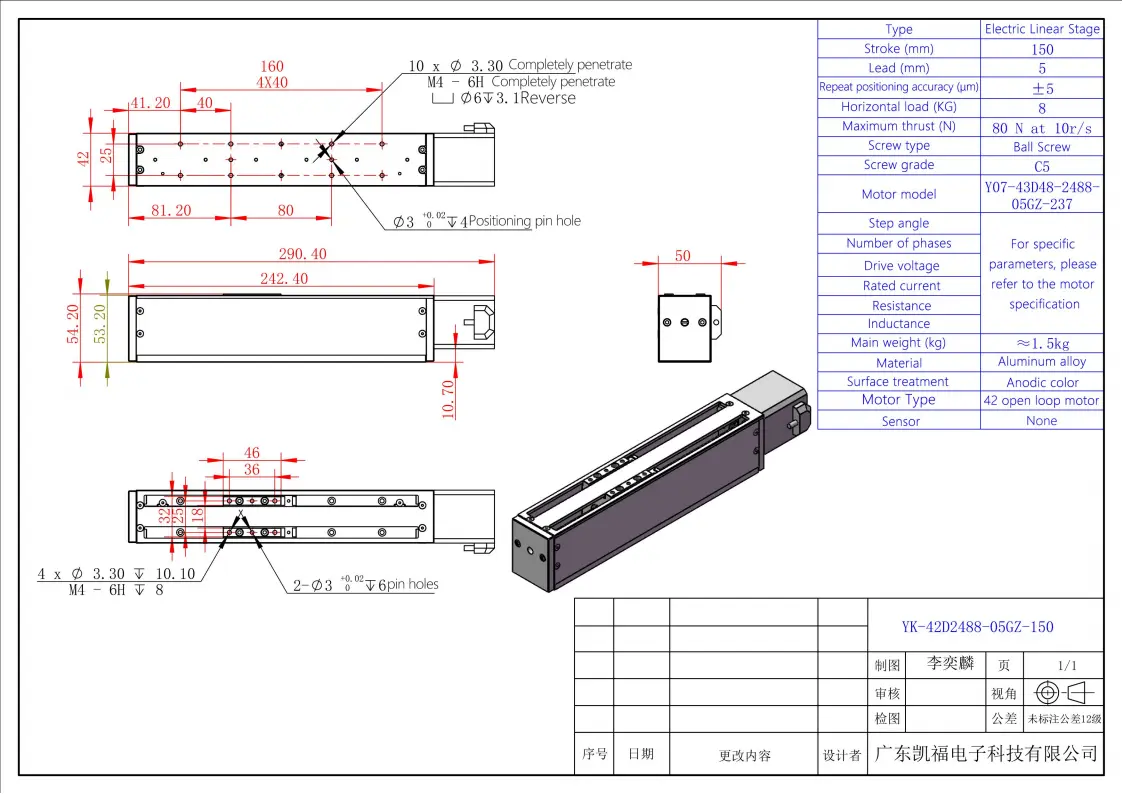

    Product size
    drawing
    The YK-42D2488-05GZ-150 is a robust and compact electric linear slide equipped with a 150mm stroke and a 42mm open-loop stepper motor. With a 5mm lead and ±5μm repeatability, it provides reliable and precise linear motion in a variety of industrial applications. Designed for horizontal loads up to 8kg and offering a maximum thrust of 80N, this actuator ensures smooth and controlled movement even under moderate load conditions. Its durable construction and efficient performance make it an ideal solution for automated production lines, optical testing, and precision handling systems.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-05GZ-150

     Dimensions (mm)

    42*54.2*290.4

     Stroke (mm)

    150

     Lead (mm)

    5

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    8

     Max Thrust (N)

    80

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-05GZ-237
    YK-42D2488-05GZ-150_01
