YK-42D2488-05GZ-100E Closed-Loop Linear Slide – 100mm Stroke Stepper Motor Actuator

YK-42D2488-05GZ-100E Closed-Loop Electric Linear Slide – 100mm Stroke, 42mm Stepper Motor, High-Precision Linear Actuator

Discover the YK-42D2488-05GZ-100E closed-loop electric linear actuator with 100mm stroke, 42mm stepper motor, and ±5μm repeatability for high-precision motion.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YK-42D2488-05GZ-100E is a high-precision closed-loop electric linear slide featuring a 100mm stroke, 5mm lead, and exceptional ±5μm repeatability. Equipped with a 42mm closed-loop stepper motor, it offers enhanced position feedback and stable control, ensuring accurate motion performance in demanding automation tasks. With a horizontal load capacity of 8kg and max thrust of 80N, this linear stage is ideal for semiconductor equipment, vision alignment systems, biotech automation, and other compact precision machinery. Its reliable closed-loop design reduces step loss risks while maintaining efficiency, making it a smart choice for advanced motion control.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-05GZ-100E

     Dimensions (mm)

    42*54.2*260.4

     Stroke (mm)

    100

     Lead (mm)

    5

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    8

     Max Thrust (N)

    80

     Motor Model

    42 Closed loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-05GZ-187E

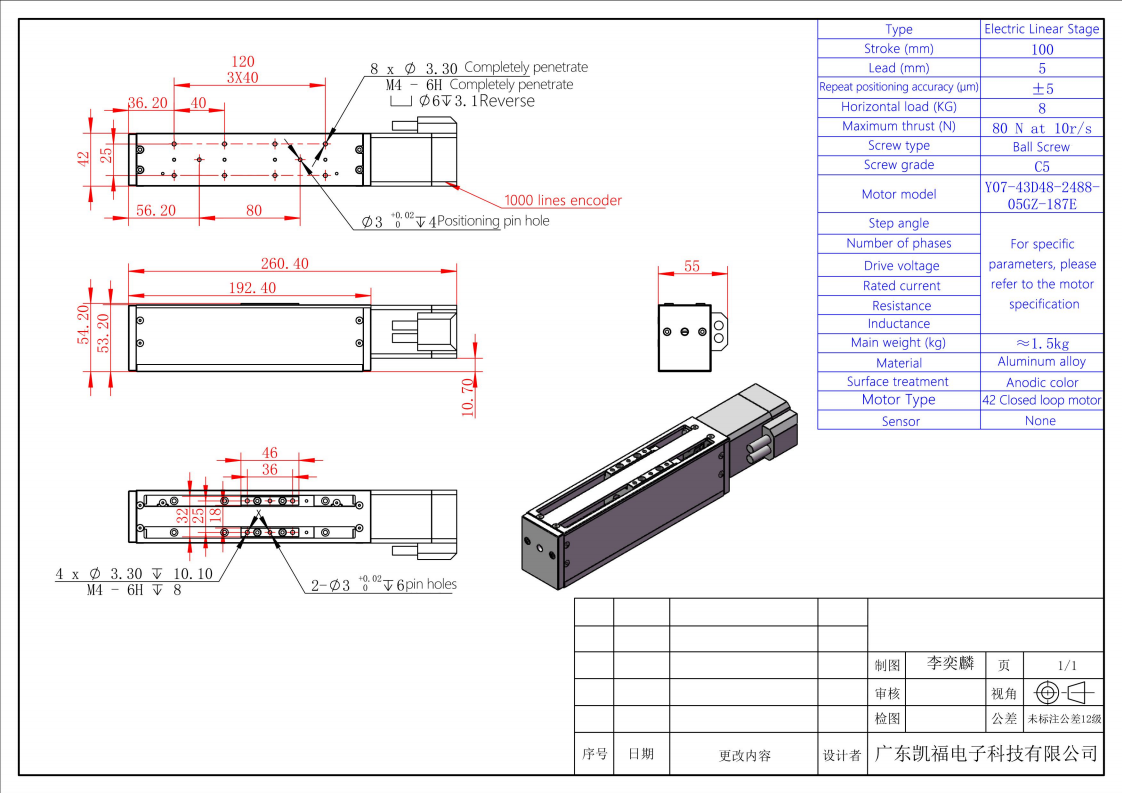

    YK-42D2488-05GZ-100E_01
