YK-42D2488-05GZ-100 Linear Actuator – 42mm Stepper Motor with 100mm Stroke

YK-42D2488-05GZ-100 Electric Linear Slide – 100mm Stroke, 42mm Open-Loop Stepper Motor, Compact Precision Linear Actuator

Explore the YK-42D2488-05GZ-100 electric linear slide with 100mm stroke, ±5μm precision, and 42mm open-loop stepper motor for high-accuracy automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

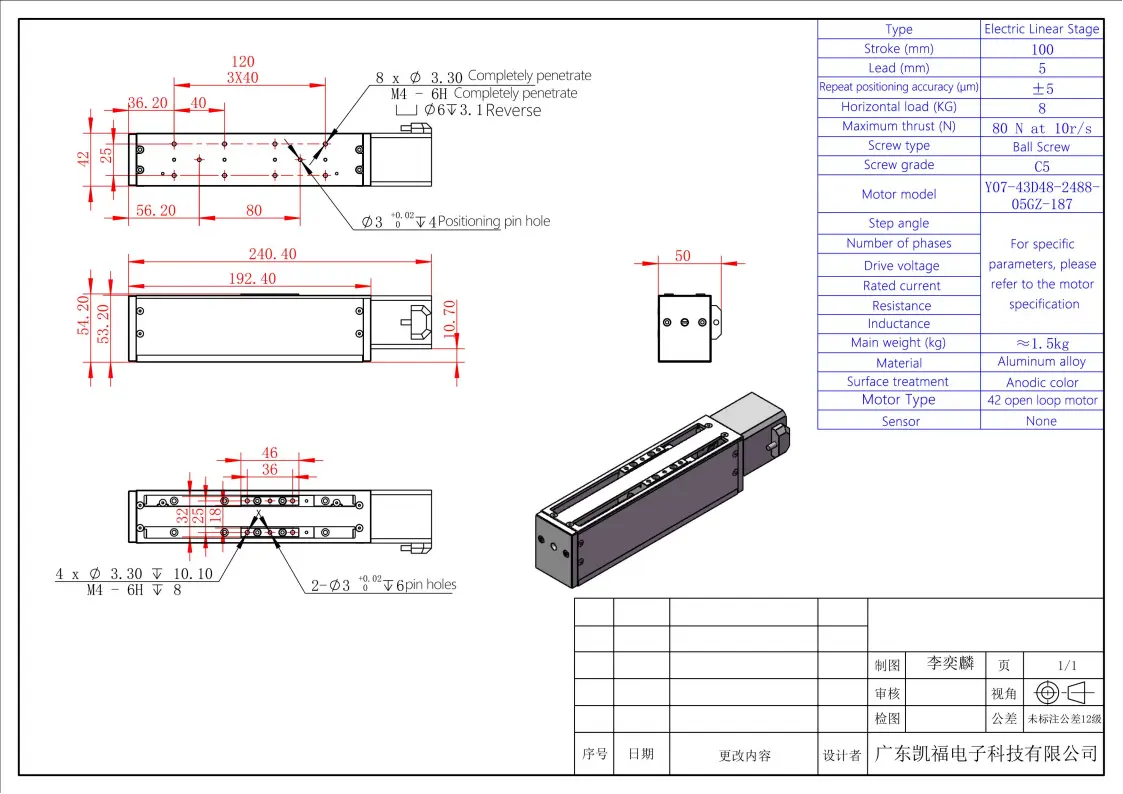

    drawing
    The YK-42D2488-05GZ-100 electric linear slide features a 100mm stroke, 5mm lead, and ±5μm repeatability, designed for reliable precision motion in compact systems. Powered by a 42mm open-loop stepper motor, this model delivers stable performance with a horizontal load capacity of 8kg and max thrust up to 80N. Ideal for applications such as lab automation, precision assembly, and compact motion platforms, the YK-42D2488-05GZ-100 offers smooth linear motion and consistent repeatability. Its space-efficient structure and dependable mechanical design make it a perfect fit for integration into automation equipment where accuracy and durability are key.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-05GZ-100

     Dimensions (mm)

    42*54.2*240.4

     Stroke (mm)

    100

     Lead (mm)

    5

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    8

     Max Thrust (N)

    80

     Motor Model

    42 Open loop

     Sensor

    /

     Motor Type

    Y07-43D48-2488-05GZ-187
    YK-42D2488-05GZ-100_01
